Sequence Output Instructions
3-4-6

MULTIPLE BIT SET/RESET: SETA(530)/RSTA(531)

Purpose
Ladder Symbols
Variations
Applicable Program Areas
Operands
198
000000
000001
000002
SETA(530) turns ON the specified number of consecutive bits.
RSTA(531) turns OFF the specified number of consecutive bits.
SETA(530)
D
N1
N2
RSTA(531)
D: Beginning word
D
N1: Beginning bit
N1
N2: Number of bits
N2
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification
Block program areas
OK OK
D: Beginning Word
Specifies the first word in which bits will be turned ON or OFF.
N1: Beginning Bit
Specifies the first bit which will be turned ON or OFF. N1 must be #0000 to
#000F (&0 to &15).
N2: Number of Bits
Specifies the number of bits which will be turned ON or OFF. N2 must be
#0000 to #FFFF (&0 to &65535).

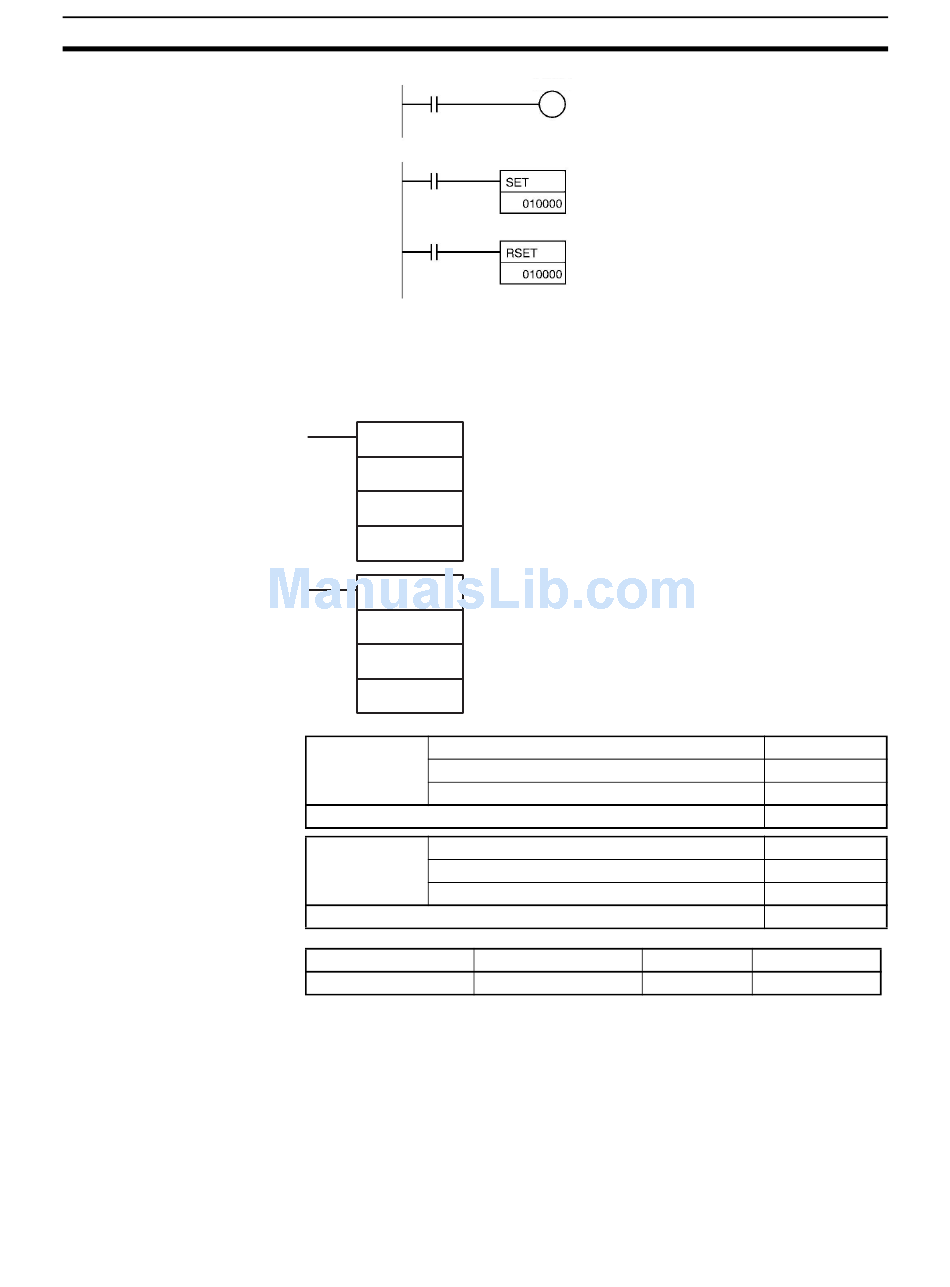

010000
CIO 010000 is turned ON/OFF
when CIO 000000 goes ON/OFF.
CIO 010000 is turned ON when
CIO 000001 goes ON; it remains
ON until CIO 000002 goes ON.
D: Beginning word
N1: Beginning bit
N2: Number of bits
Step program areas Subroutines
OK
Section 3-4
SETA(530)
@SETA(530)
Not supported
RSTA(531)
@RSTA(531)
Not supported
Interrupt tasks
OK
