Timer and Counter Instructions
Operand Specifications
Description
Area
CIO Area ---
Work Area ---
Holding Bit Area ---
Auxiliary Bit ---
Area
Timer Area ---
Counter Area 0000 to 4095 (decimal)
DM Area ---
EM Area with- ---
out bank
EM Area with ---
bank
Indirect DM/EM ---
addresses in
binary
Indirect DM/EM ---
addresses in
BCD
Constants ---
Data Registers ---
Index Registers ---
Indirect address- ,IR0 to ,IR15
ing using Index
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
Registers
DR0 to DR15, IR0 to IR15

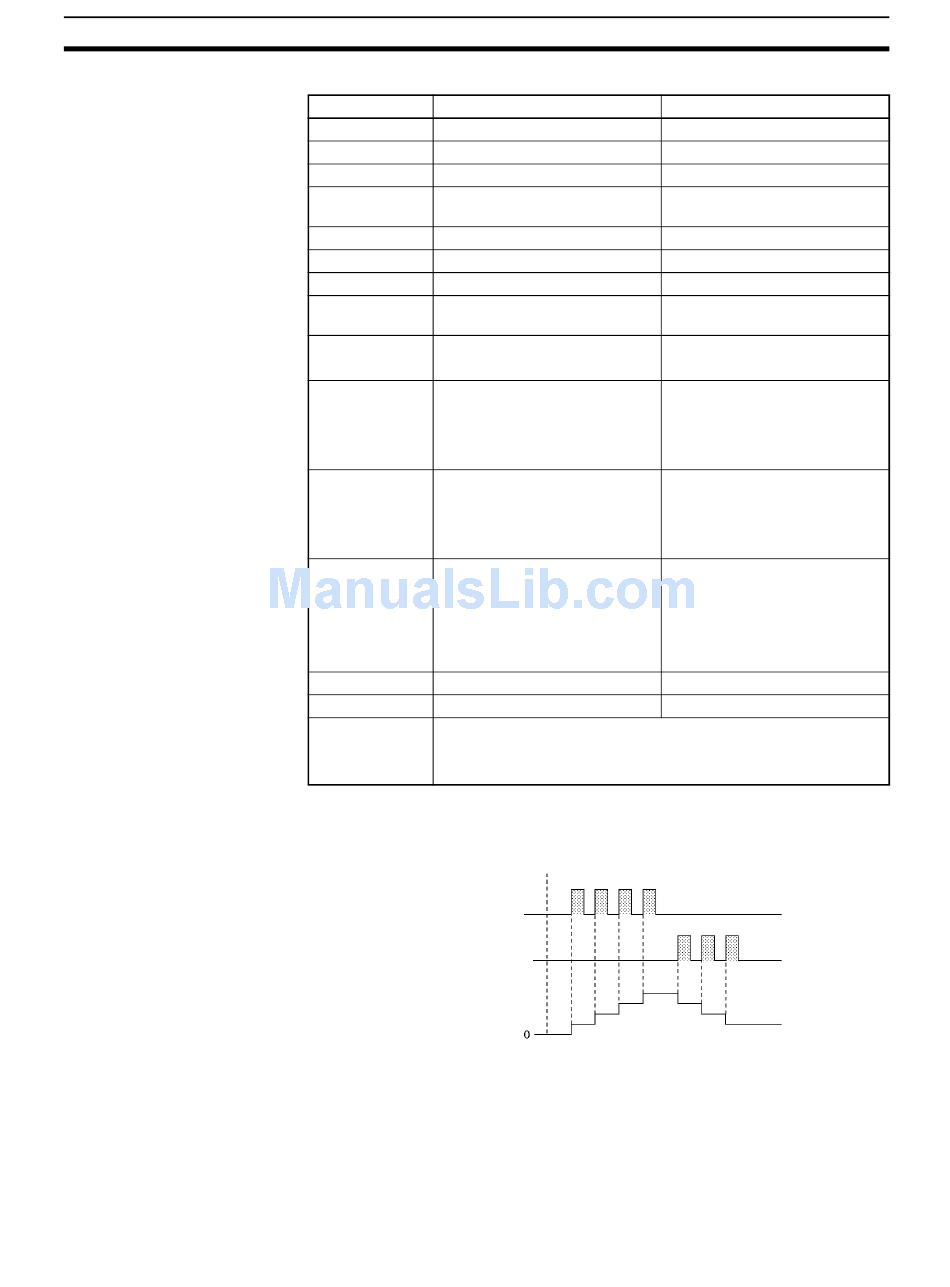

The counter PV is incremented by 1 every time that the increment input goes
from OFF to ON and it is decremented by 1 every time that the decrement
input goes from OFF to ON. The PV can fluctuate between 0 and the SV.
Increment input
Decrement input
Counter PV
When incrementing, the Completion Flag will be turned ON when the PV is
incremented from the SV back to 0 and it will be turned OFF again when the
PV is incremented from 0 to 1.
N
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
BCD:
#0000 to 9999 (BCD)
"&" cannot be used.
Binary:
&0 to &65535 (decimal)
#0000 to #FFFF (hex)
DR0 to DR15
---
Section 3-6
S
279
