Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 Reference Manual page 424

Data Shift Instructions
Description
Flags
Precautions
Examples
384
Area
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

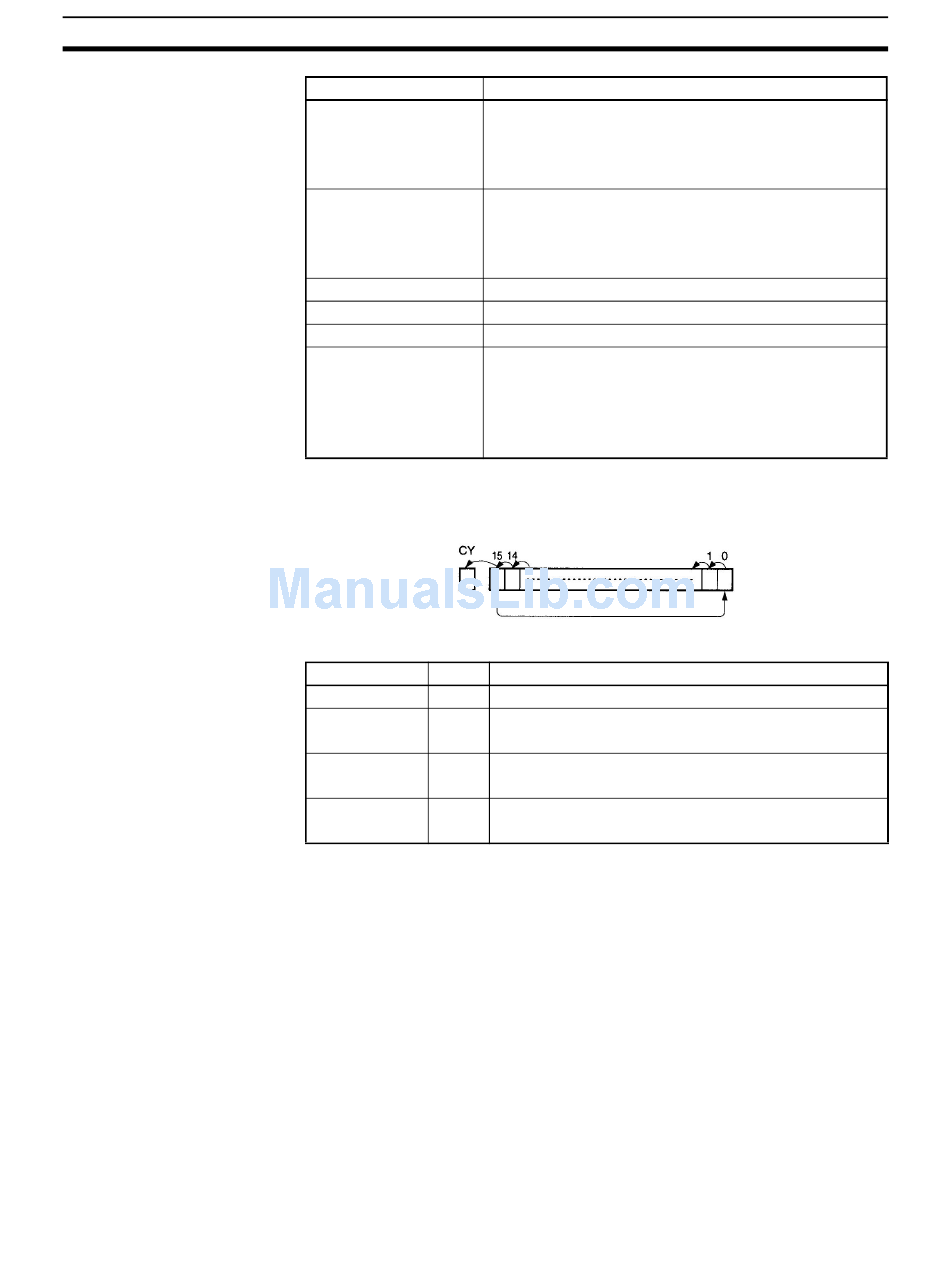

RLNC(574) shifts all bits of Wd to the left (from rightmost bit to leftmost bit).
The contents of the leftmost bit of Wd shifts to the rightmost bit and to the
Carry Flag (CY).
Name Label
Error Flag ER
Equals Flag =
Carry Flag CY
Negative Flag N
When RLNC(574) is executed, the Error Flag will turn OFF.
If as a result of the shift the contents of Wd is zero, the Equals Flag will turn
ON.
If as a result of the shift the contents of the leftmost bit of Wd is 1, the Nega-
tive Flag will turn ON.
When CIO 000000 is ON, word CIO 0100 will shift one bit to the left (exclud-
ing the Carry Flag (CY)). The contents of CIO 010015 will be shifted to
CIO 010000.
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
---
DR0 to DR15
---
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Wd
Operation
OFF
ON when the shift result is 0.
OFF in all other cases.
ON when 1 is shifted into the Carry Flag (CY).
OFF in all other cases.
ON when the leftmost bit is 1 as a result of the shift.
OFF in all other cases.
Section 3-9
Wd
