Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 Reference Manual page 229

Sequence Output Instructions
Variations
Applicable Program Areas
Operand Specifications
Description
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation
Immediate Refreshing Specification (See note.)
Note Immediate refreshing is not supported by CS1D CPU Units.
Block program areas
Not allowed
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

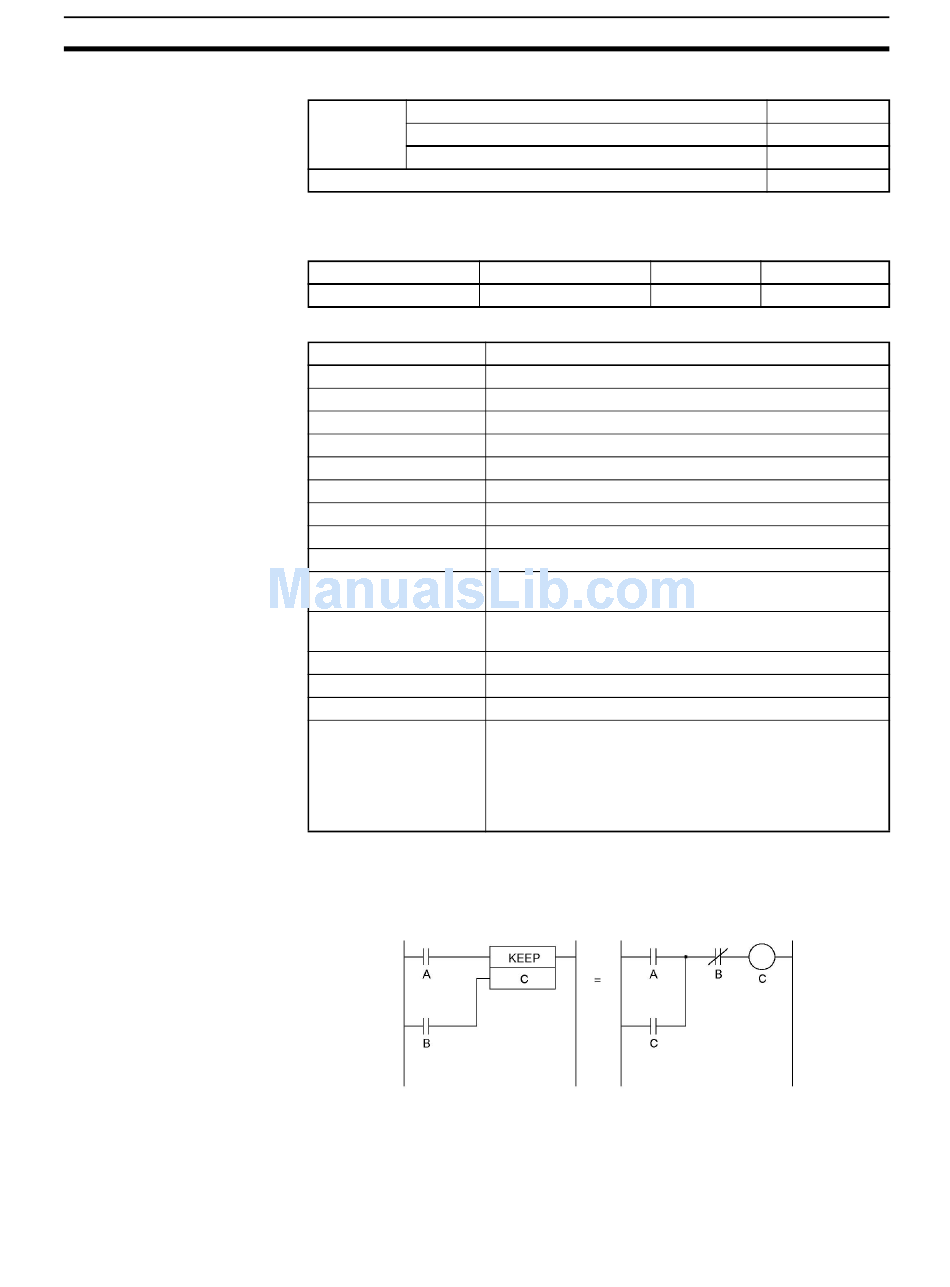

When S turns ON, the designated bit will go ON and stay ON until reset,
regardless of whether S stays ON or goes OFF. When R turns ON, the desig-
nated bit will go OFF. The relationship between execution conditions and
KEEP(011) bit status is shown below.
Set
Reset
Step program areas Subroutines
OK OK
CIO 000000 to CIO 614315
W00000 to W51115
H00000 to H51115
A44800 to A95915
---
---
---
---
---
---
---
---
---
---
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
Section 3-4
KEEP(011)
Not supported
Not supported
!KEEP(011)
Interrupt tasks
OK
B
189
