Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 Reference Manual page 970

Basic I/O Unit Instructions
Operand Specifications
Description
930
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

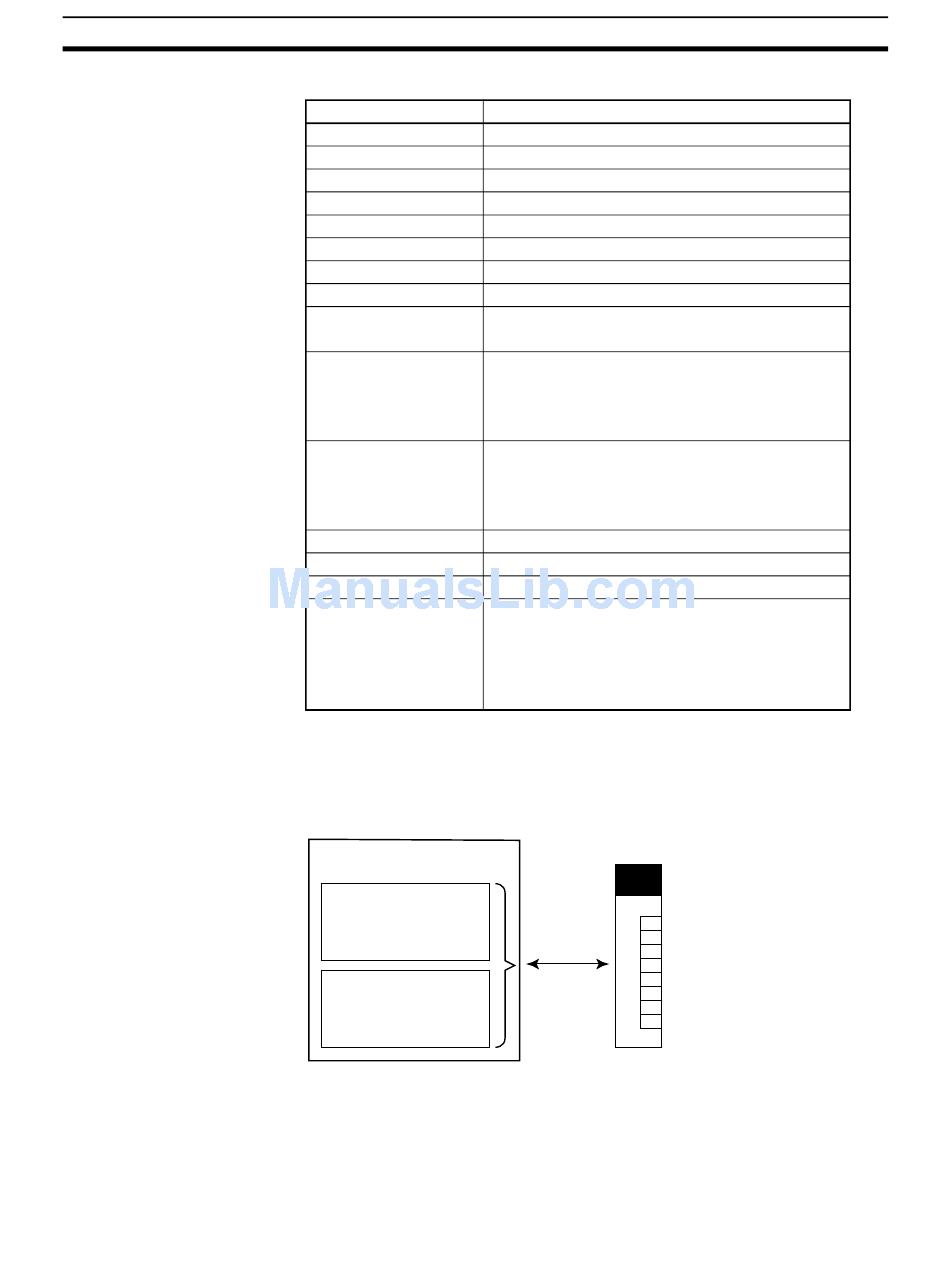

FIORF(225) performs immediate I/O refreshing of the CIO Area words and
DM Area words allocated to the Special I/O Unit with the unit number speci-
fied by N. Refer to the Special I/O Unit's Operation Manual for details on the
data area words that are immediately refreshed.
CPU Unit
Words allocated to Special I/O Unit
with unit number N
Allocated CIO Area words
Allocated DM Area words
N
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A448 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
#0000 to #005F (binary) or 0 to 95 (decimal)
DR0 to DR15
---
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Special I/O Unit
with unit number N
Refresh
Section 3-23
