Sequence Control Instructions
Item
Instruction execution
Output status in instructions
Bits in OUT, OUT NOT, OUTB(534)
Status of timer instructions
(except (TTIM(087), TTIMX(555),
MTIM(543), and MTIMX(554))
Flags
The following table shows the treatment of various outputs in an interlocked
section between IL(002) and ILC(003).
Bits specified in OUT, OUT NOT, or OUTB(534)
TIM, TIMX(550), TIMH(015),
TIMHX(551), TMHH(540),
TMHHX(552), TIML(542), and
TIMXL(553)
TIMU(541), TIMUX(556),
TMUH(544), and TMUHX(557)
(See note 1.)
Bits/words specified in all other instructions (See note 2.) Retain previous status.
Note 1. These instructions are supported by the CJ1-H-R CPU Units only.
2. Bits and words in all other instructions including TTIM(087), TTIMX(555),
MTIM(543), MTIMX(554), SET, RSET, CNT, CNTX(546), CNTR(012), CN-
TRX(548), SFT, and KEEP(011) retain their previous status.
If there are bits which you want to remain ON in an interlocked program sec-
tion, set these bits to ON with SET just before IL(002).

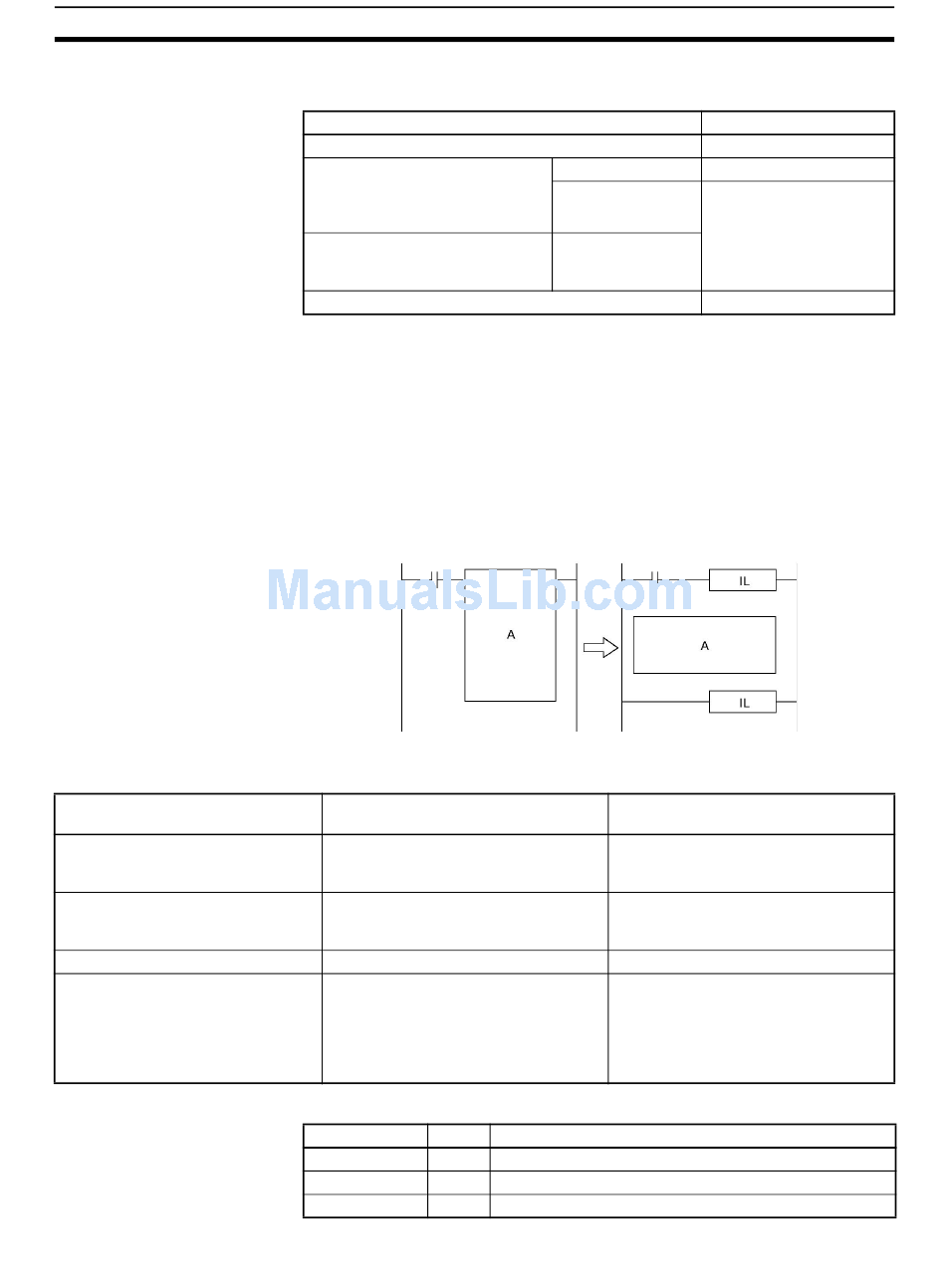

It is often more efficient to switch a program section with IL(002) and
ILC(003). When several processes are controlled with the same execution
condition, it takes fewer program steps to put these processes between
IL(002) and ILC(003).
The following table shows the differences between IL(002)/ILC(003) and
JMP(004)/JME(005).
IL(002)/ILC(003)
Instructions other than OUT, OUT NOT,
OUTB(534), and timer instructions are
not executed.
Except for outputs in OUT, OUT NOT,
OUTB(534), and timer instructions, all
outputs retain their previous status.
OFF
Reset
Name
Error Flag
Equals Flag
Negative Flag
Instruction
Completion Flag
PV
Cannot be refer-
enced.
Treatment in
Label
ER Unchanged (See note.)
= Unchanged (See note.)
N Unchanged (See note.)
Section 3-5
Treatment
OFF
OFF (reset)
Time set value (reset)
Treatment in
JMP(004)/JME(005)
No instructions are executed.
All outputs retain their previous status.
All outputs retain their previous status.
Operating timers (TIM, TIMX(550),
TIMH(015), TIMHX(551), TMHH(540),
TMHHX(552) only) continue timing
because the PVs are updated even
when the timer instruction is not being
executed.
Operation
