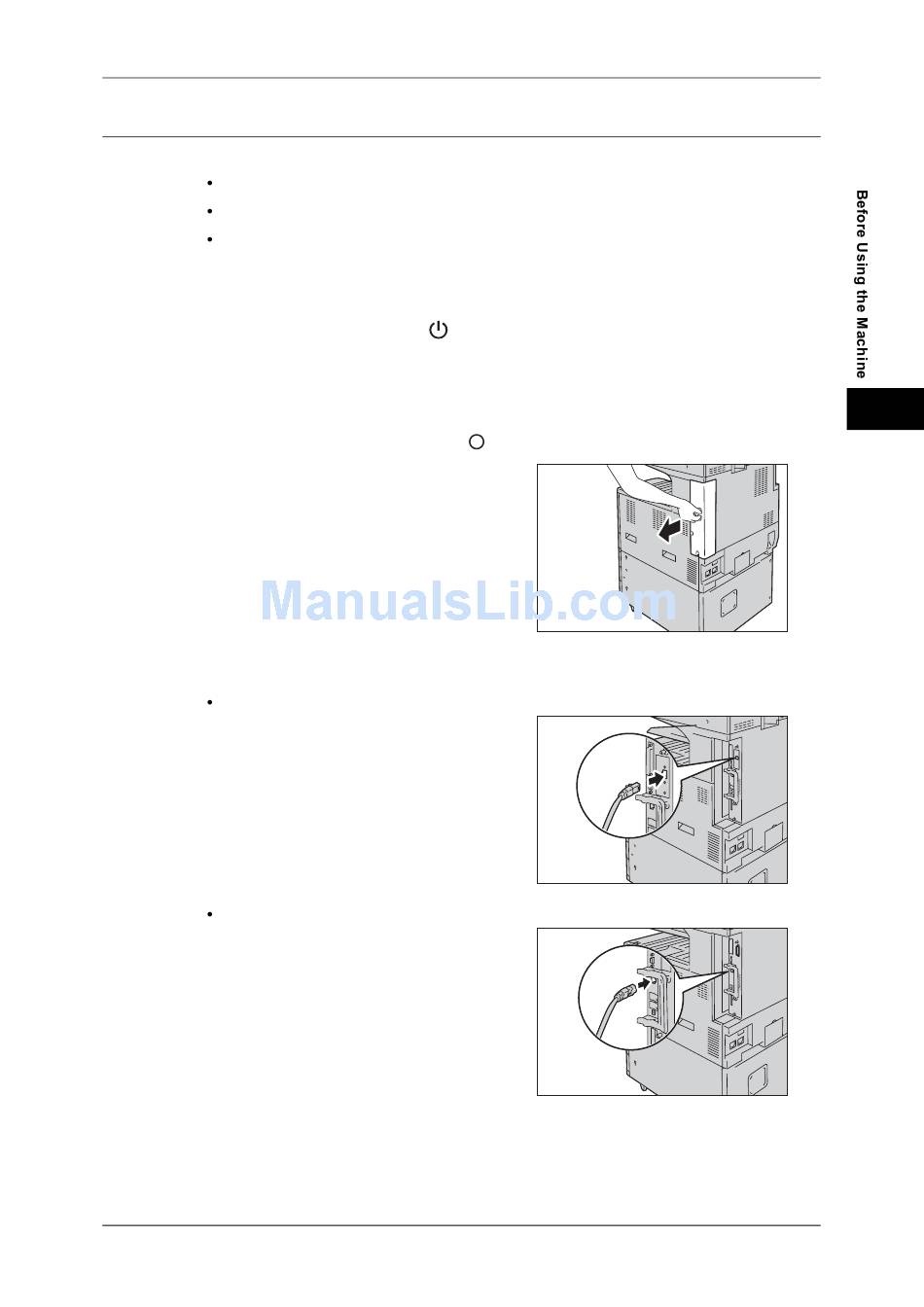

Using the Ethernet Interface

The Ethernet interface of the machine supports the following three types.
1000BASE-T
100BASE-TX
10BASE-T
Note • 1000BASE-T is not supported for some models. An optional component is required.
This section describes the installation procedures for the Ethernet interface.
1
Press the power switch to the [
2
Make sure that the touch screen is blank and the <Energy Saver> button does not
light up.
3
Open the front cover.
4
Press the main power switch to the [
5
Remove the rear right cover.
6
Connect the network cable to the Ethernet interface connector.
When the Gigabit Ethernet Board Kit (optional) is installed
When the Gigabit Ethernet Board Kit (optional) is not installed
Note • Always use the correct network cable with your network connection. When you replace the
] position to switch off the power.
cable, contact our Customer Support Center.
] position to switch off the main power.
Interface Cables
