Paper Jams in Finisher-C1 / Finisher-C1 with Booklet Maker

This section describes how to clear paper jam occurring in the C1-Finisher (optional)
and the C1-Finisher with Booklet Maker (optional).
This section explains the procedures to remove the jammed paper in the C1-Finisher
with Booklet Maker, as an example. You can apply the same procedures to the
Finisher-C1.
Paper Jams in the Center Tray.................................................................................................. 535
Paper Jams in the Finisher Transport ....................................................................................... 535
Paper Jams at 2a in the Finisher ............................................................................................... 536
Paper Jams at 2a in the Finisher (Using Knob 2c) ................................................................... 537
Paper Jams at 2b in the Finisher............................................................................................... 538
Paper Jams at 2b in the Finisher (Using Knob 2c)................................................................... 539
Paper Jams at 3 in the Finisher................................................................................................. 540
Paper Jams at H in the Finisher................................................................................................ 540
Paper Jams at 4a in the Finisher (For Finisher-C1 with Booklet Maker) ................................ 541
Paper Jams at 4b in the Finisher (For Finisher-C1 with Booklet Maker) ................................ 542
Paper Jams in the Booklet Tray (For Finisher-C1 with Booklet Maker) ................................. 543

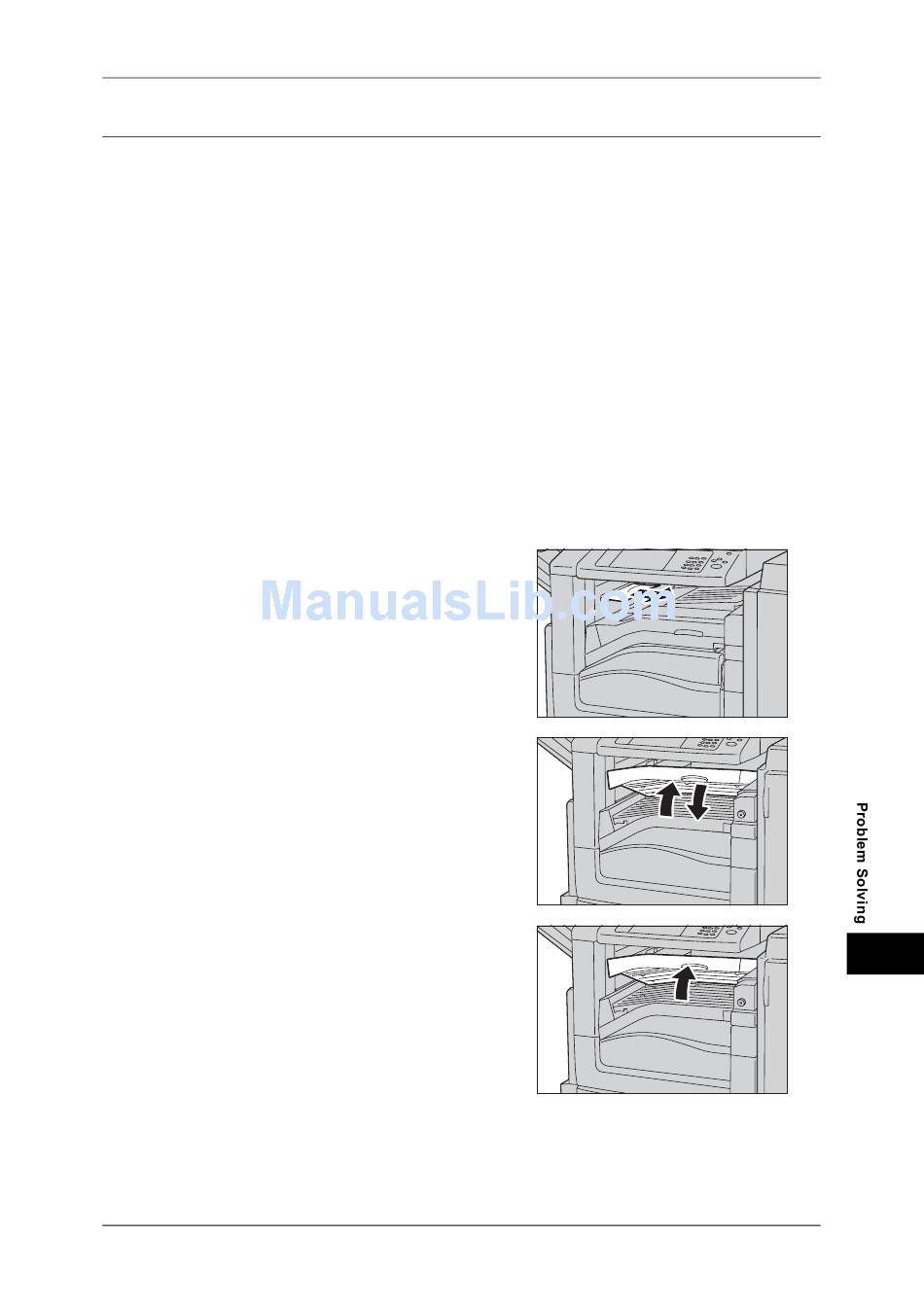

Paper Jams in the Center Tray

1
If you can see the edge of the jammed paper
on the center tray, gently pull the paper to
the right.
2
Open the top cover of the finisher transport,
and then close it.

Paper Jams in the Finisher Transport

1
Open the top cover of the finisher transport.
