11. Cutter

11.1 Description

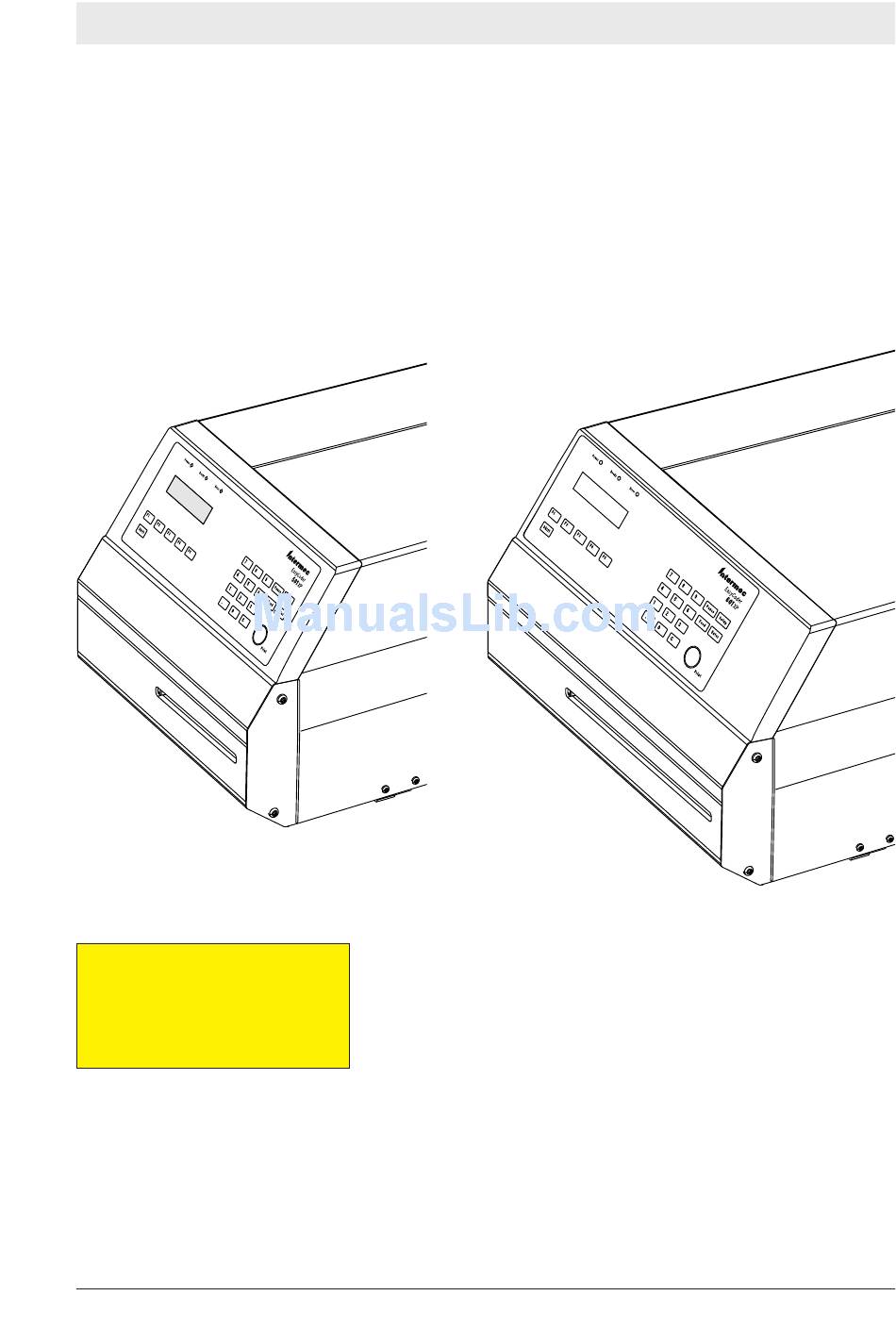

EasyCoder 501 XP
WARNING!
The cutting edge will rotate to home
position when the power is switched
on and when the printer is rebooted.
Always keep the cutter unit in closed
position during operation
Intermec EasyCoder 501 XP & 601 XP – Service Manual
The EasyCoder 501 XP can easily be fi tted with an optional cutter
unless the printer is not already fi tted with an label taken sensor
(see Chapter 10). The cutter unit is fi tted on the same hinges as the
front door, which it replaces, and is connected by a single cable to
the DIN-connector on the printer's front.
The cutter is available both as a factory-installed option and as a
fi eld-installable upgrading kit.
The cutter is intended to cut through continuous non-adhesive
paper strip or through the liner between labels. It must not be used
to cut through any kind of adhesive or other soft material, that may
stick to the cutting parts and render the cutter inoperable or even
damage to the electric motor.
Maximum paper thickness is 175 µm ( 175 g/m
paper-based materials.
Minimum practical copy length is 38.1 mm (1.5 inches.)
The cutter increases the total weight of EasyCoder 501 XP and 601
XP respectively by approx. 1.0/1.65 kg (2.2/3.6 pounds). In both
cases, the length is increased by 28 mm (1.1 inches).
The cutter can be tilted forward in order to facilitate cleaning and
media load.
Chapter 11
EasyCoder 601 XP
2 ) for normal
99
