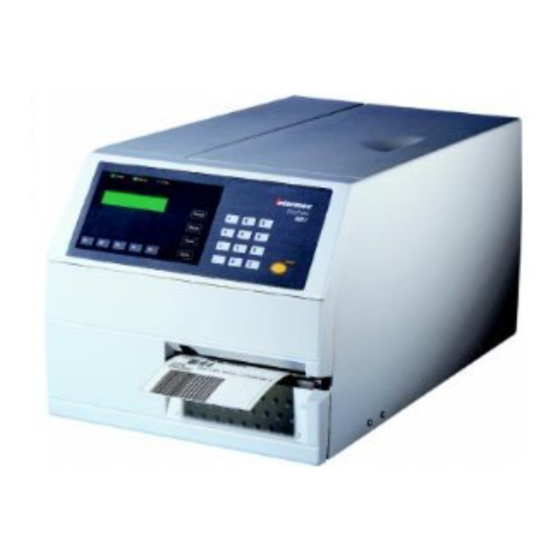

Installation Instructions P/N 1-960345-02 Edition 2 September 1998 EasyCoder 501/601 Dual Serial Interface Kit...
Page 2
The Serial Interface Board adds two serial communication ports ("uart2:" and "uart3:") to the standard serial communication port ("uart1:"). The printer's software detects when a Serial Interface Board is installed and adds communication and buffer setup options for the two additional communication ports.
Page 3
Turn off the power and remove the power cord. Remove the communication cable from communication port "uart1:". Open the right-hand door. Remove the eight Torx screws that hold the cover over the left part of the printer (see illustration below). Remove the cover. Cover Cover Plate 230V Communication Port "uart1:"...
Page 4
CPU board do not come in contact with each other, which possibly may cause damage or short-circuiting. Fit the interface board assembly to the printer's rear plate from the inside as illustrated below using the same screws that held the removed cover plate.
Page 5
DUAL SERIAL INTERFACE KIT, cont'd. Step-by-Step Installation Instructions, cont'd. Reassemble the printer in reverse order. Connect the communication cables to their respective connec- tors. Please refer to page 6 for pinout descriptions. Connect the power cord and turn on the power.
Page 6
EasyCoder 501/601 – Installation Instructions DUAL SERIAL INTERFACE KIT, cont'd. Straps "uart3:" "uart2:" The following straps are used to set up the desired type of interface on the communication ports "uart2:" and "uart3:". Communication Port "uart2:" There are no straps for controlling the RS 232C interface on "uart2:".
