Chapter 9 Liner/Batch Takeup Kit
EasyCoder 601 XP

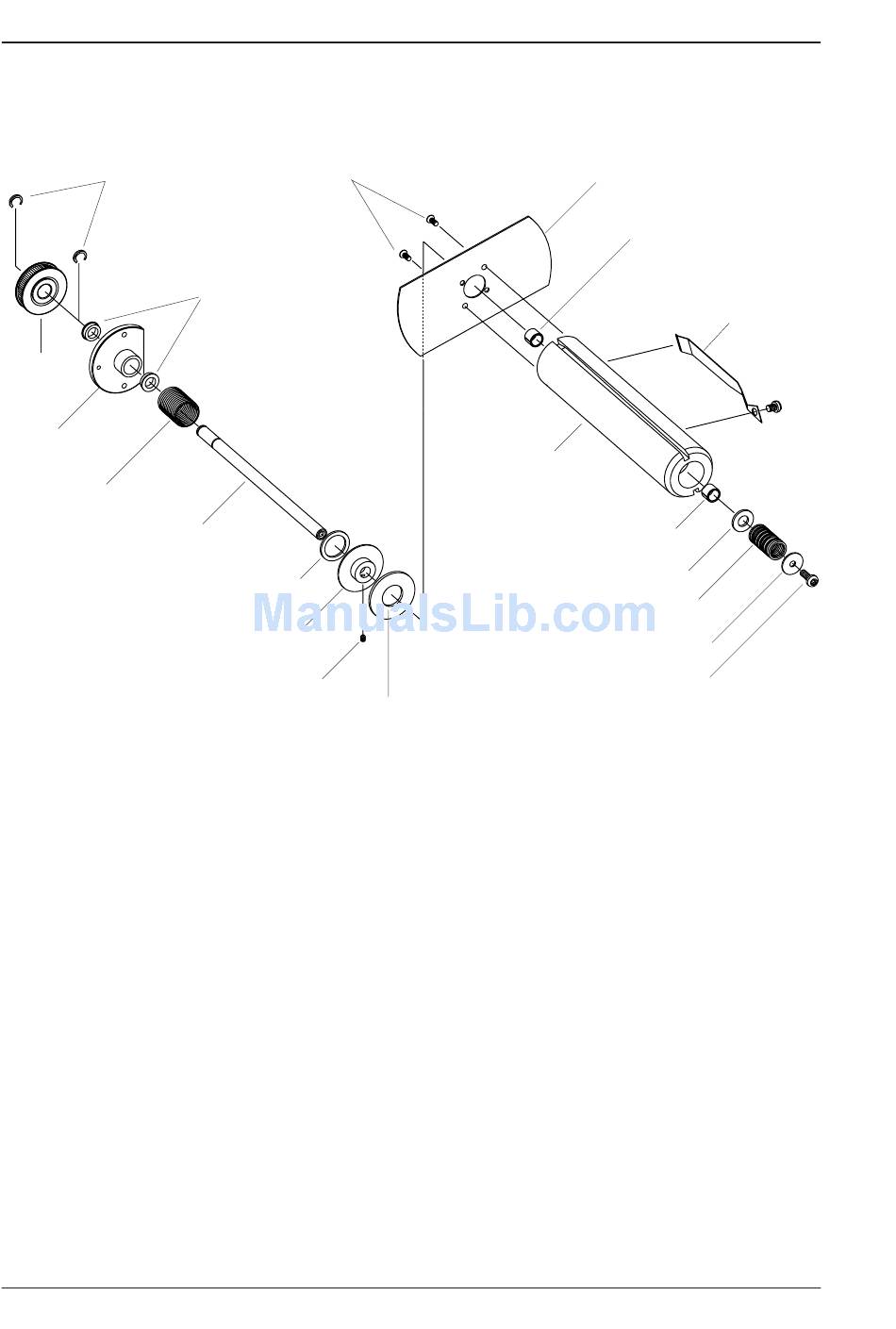

9.3 Liner/Batch Takeup
Unit, cont.
#T10 Torx Screws
Snap Rings
Hub Gable
Slide Bearing
Ball Bearings
Hub Plate
Pulley
Flange
Hub
Spring
Shaft
Slide Bearing
Nylon Washer
Friction Washer
Compression Spring
Carrier
Washer
#T20 Torx Screw
Grub Screw
Friction Felt
Intermec EasyCoder 501 XP & 601 XP– Service Manual
