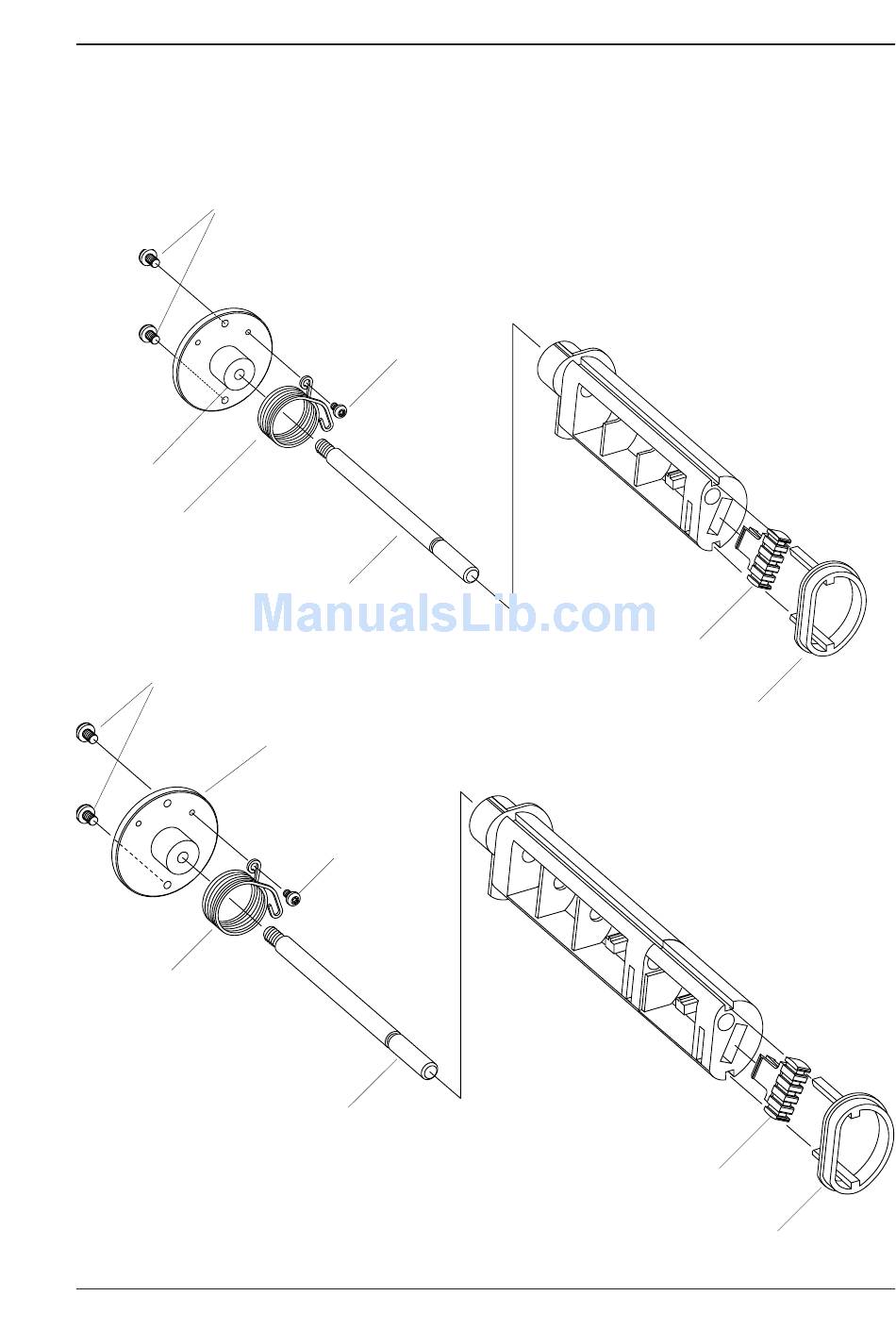

6.2 Dismantling

#T20 Torx Screws (2x)
Flange
Torsion Spring
#T20 Torx Screws (2x)
Torsion Spring
Intermec EasyCoder 501 XP & 601 XP – Service Manual
The label slack absorber unit is fi tted to the center section using
two #T20 Torx screws inserted through the center section from
the electronics compartment. The shaft should be screwed into the
fl ange with a tightening torque of 5 Nm.
#T10 Torx Screw
Shaft
EasyCoder 501 XP
Flange
#T10 Torx Screw
Shaft
EasyCoder 601 XP
Chapter 6 Label Slack Absorber
Grip (green)
Edge Guide
(green)
Grip (green)
Edge Guide
(green)
