Chapter 5 Media Supply
5.2 External Supply,
cont.
36
Media Load

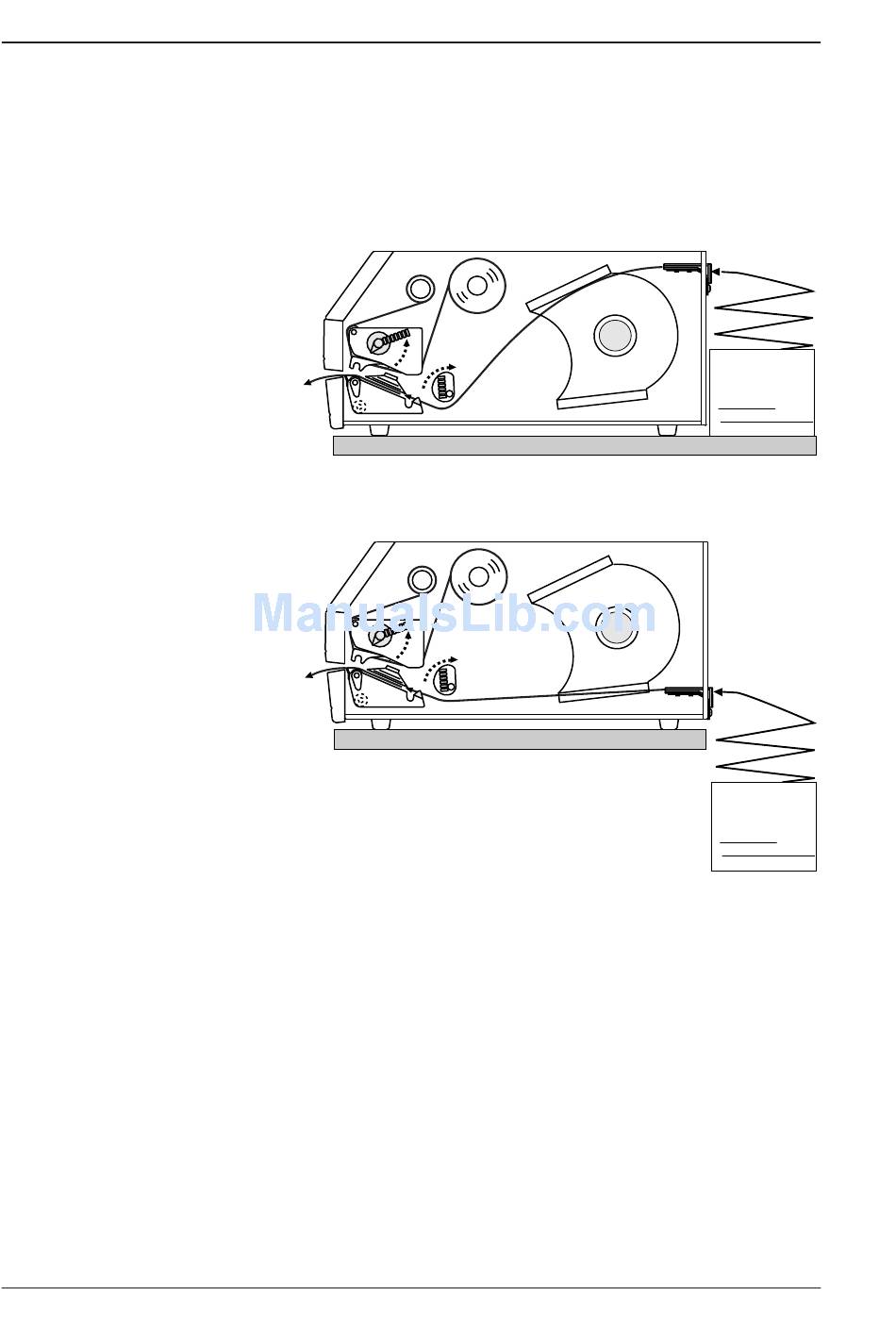

Load the media according to the illustrations below. Note that the
external supply should be protected from dust, sand, grit and other
particles that may damage the printhead or impair the printout
quality.
Note that if the printer is to be permanently used with an external
media supply only, the internal media supply spool, together with
the large crescent-shaped guide plate could easily be removed (see
Chapter 5.1.)
