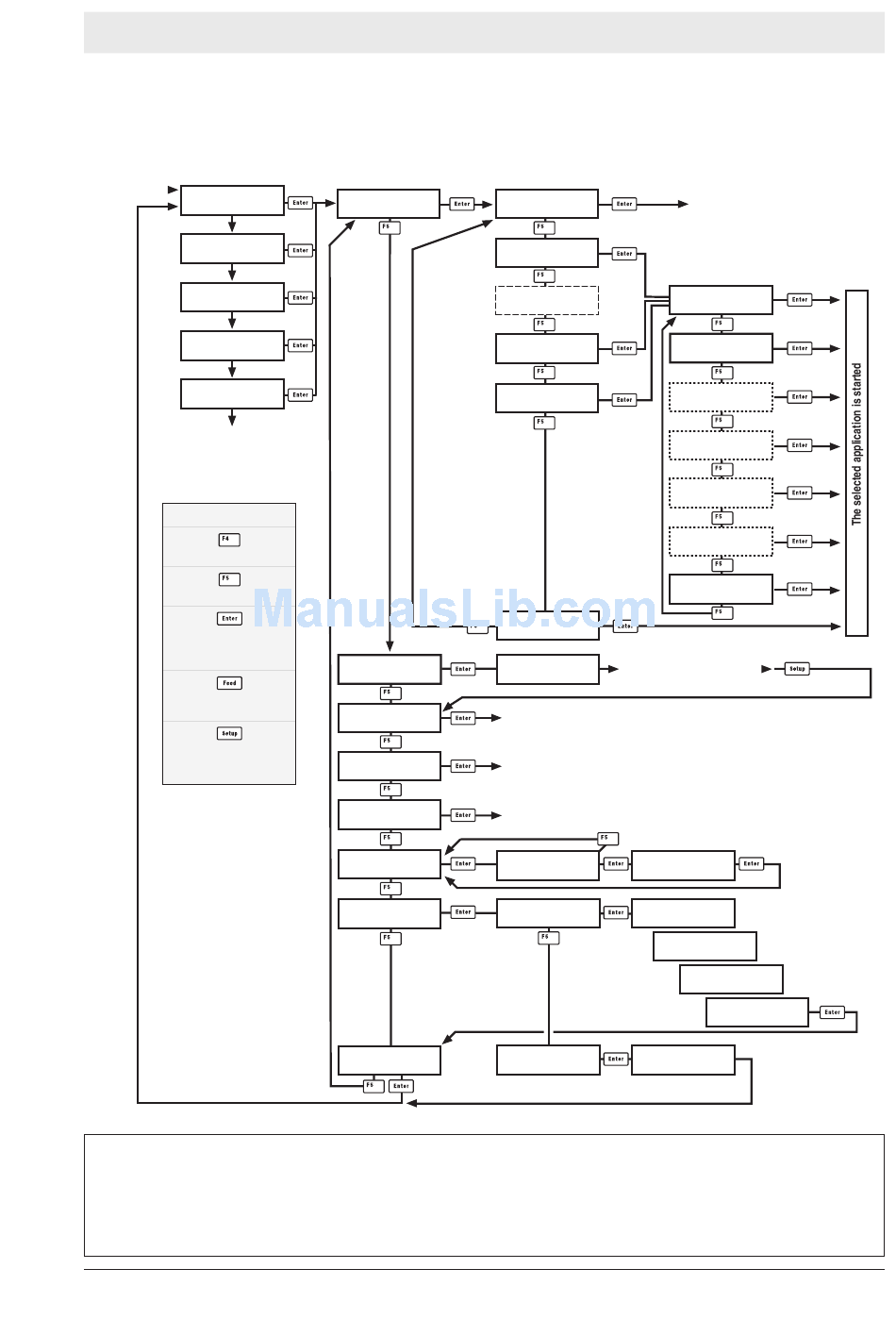

Intermec Shell v4.8 Overview

POWER ON
ENTER=SHELL
5 sec. v.4.8
ENTER=SHELL
4 sec. v.4.8
ENTER=SHELL
3 sec. v.4.8
ENTER=SHELL
2 sec. v.4.8
ENTER=SHELL
1 sec. v.4.8
Last selected
application is started
Default:
Fingerprint 7.63 w. std I/O = "uart1:"
Legend:
Return to previous menu.
Proceed to next menu.
Accept displayed option
and proceed, or
execute displayed option.
Perform a Testfeed
anywhere in Intermec Shell.
Enter the Setup Mode
from anywhere
in Intermec Shell.
Note!
To enter Intermec Shell if a custom-made autoexec-fi le prevents access, lift the printhead and press any
key on the printer's keyboard (except the <Shift> key), then switch on the power while continuing to
press the key. When the Shell countdown begins, release the key and press <Enter> to start Shell. Do
not forget to lower the printhead if you want to print for example test labels.
Intermec EasyCoder 501 XP & 601 XP – Service Manual
SHELL
SEL. APPLICATION
SEL. APPLICATION
CURRENT APPL.
SEL. APPLICATION
LABELSHOP
The Windows Driver
SEL. APPLICATION
option is not used
WINDOWS DRIVER
with EasyCoder
F-series printers
SEL. APPLICATION
Fingerprint 7.63
SEL. APPLICATION
Direct Protocol
SEL.APPL rom:
LINE_AXP.PRG
SHELL SETUP:
SETUP SER-COM,UART1
SHELL
Prints a list of current setup values (test label #5).
PRINT SETUP
SHELL
Performs a Testfeed (feeds out a number of blank copies
while autoadjusting the label stop sensor.)
TESTFEED
SHELL
Prints test labels #1-4 in a loop.
TEST LABEL
Press Enter for each new label.
SHELL
ARE YOU SURE ?
DEFAULT SETUP
Y=ENTER/ N=F5
UPDATE:
SHELL
PC-CARD?
SOFTWARE UPDATE
SHELL UPDATE:
REBOOT FIRMWARE
Restarts the printer (same as power off/on)
Appendix 1
Last selected application is started
Note: Dotted channels are only shown if
the corresponding optional interface pcb
is fitted.
STD I/O CHANNEL
auto
STD I/O CHANNEL
UART1
STD I/O CHANNEL
UART2
STD I/O CHANNEL
UART3
STD I/O CHANNEL
CENTRONICS
STD I/O CHANNEL
net1:
STD I/O CHANNEL
usb1:
See the chapter "Setup Mode"
DEFAULT SETUP
PERFORMED
PC-CARD ERASE
TRANSFER FILE
USING ZMODEM
PROGRAMMING
PC-CARD
PROGRAMMING
COMPLETED
TRANSFER FILE
USING ZMODEM
Printer rebooted
automatically.
