8.3 Stepper Motor,
cont.
#T20 Torx Screw
Stepper Motor
Bracket
Intermec EasyCoder 501 XP & 601 XP – Service Manual
Replacement (EasyCoder 501 XP and 601 XP), cont.

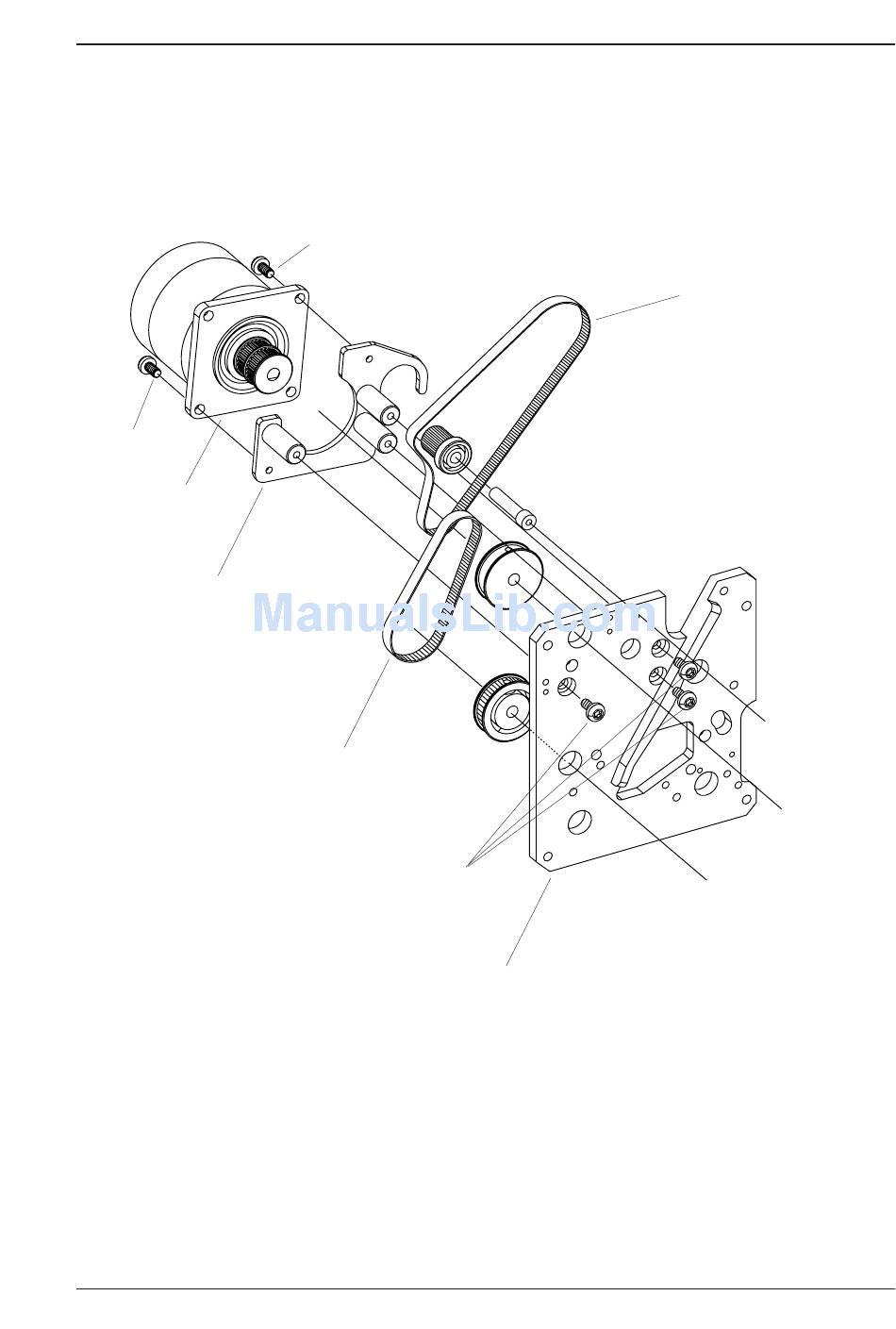

In the illustration below, most parts of the print unit have been
omitted to improve visibility. Note that the bracket does not need
to be removed when the stepper motor is replaced.
#T20 Torx Screw
Belt
(to Platen Roller)
#T20 Torx Screws (3x)
Inner Print Unit Gable
Chapter 8 Print Unit
Belt
(to Ribbon Rewind Unit
and Ribbon Assist Roller)
Fitted to Center
Section
Fitted on Ribbon
Assist Roller
Shaft
Fitted on Platen
Roller Shaft
57
