Chapter 8 Print Unit
8.6 Label Stop Sensor,
cont.
66

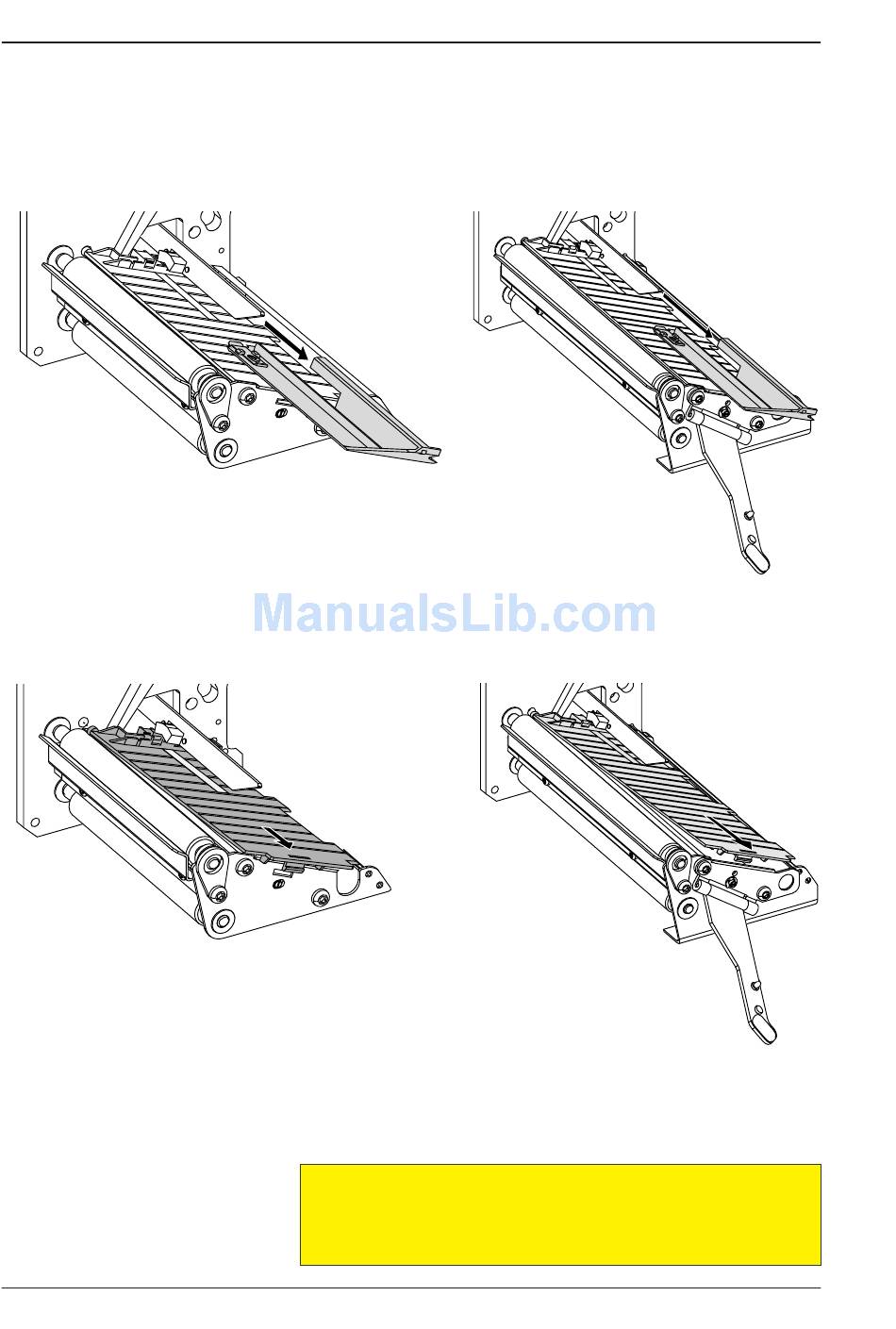

Removing the Guide Plates (EasyCoder 501 XP and 601 XP)
The LSS guide plates will need to be removed for occasional
cleaning, replacement and when replacing a defective sensor.
• To remove the upper guide plate, just pull it straight out.
• To remove the lower guide plate, disengage the snap-lock
(accessible through a slot in the lower gable) using for example
a screwdriver and lift the outer end of the guide plate. Then pull
it out.
When cleaning the guide plates, use a soft cloth moistened with
isopropyl alcohol. Do not use any other type of chemicals. Be care-
ful not to scratch the windows.
Isopropyl alcohol [(CH
fl ammable, moderately toxic, and mildly irritating sub-
stance.
