8.4 Belts, cont.
#T20 Torx Screw
Belt
Intermec EasyCoder 501 XP & 601 XP – Service Manual
Replacement (EasyCoder 501 XP and 601 XP)

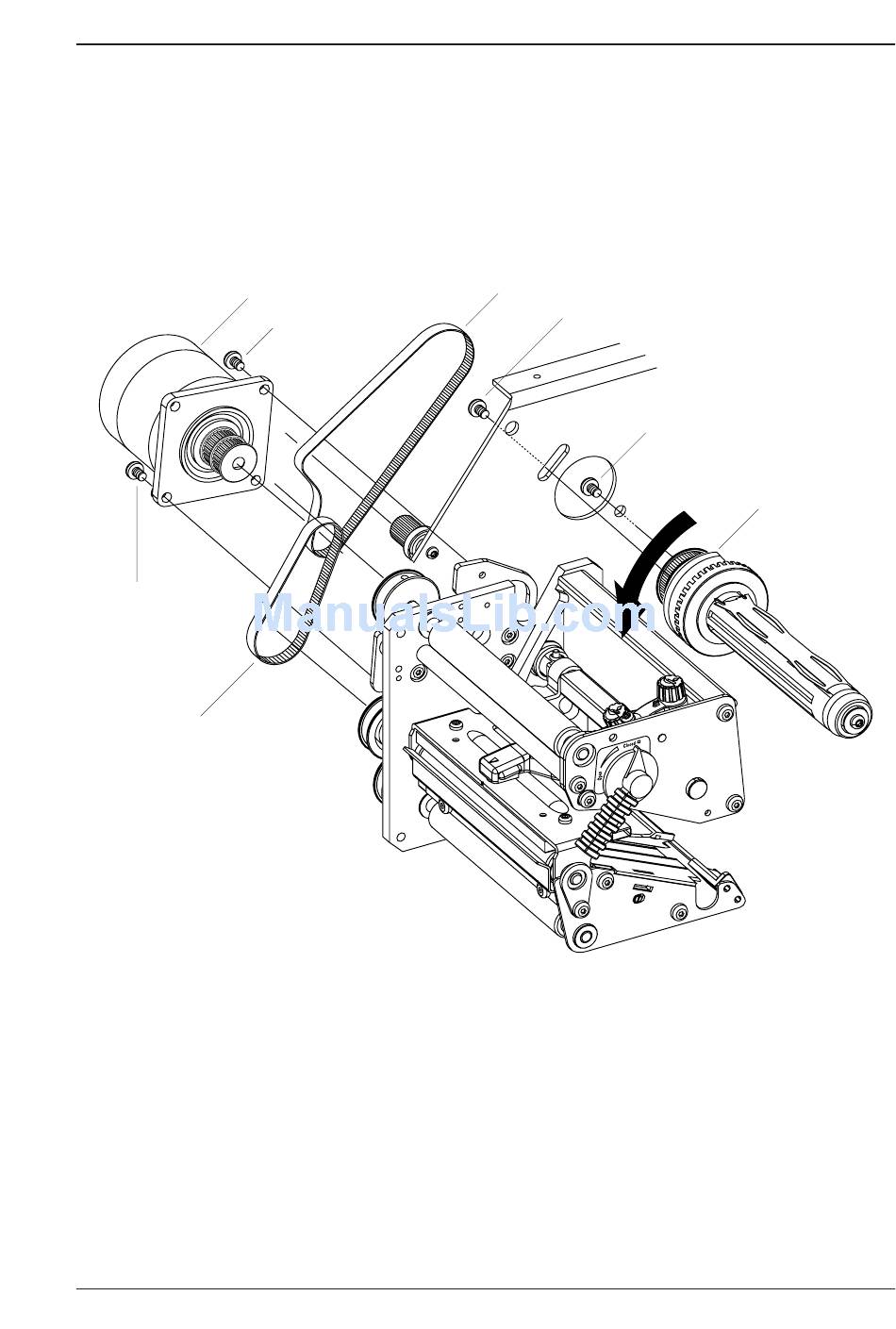

In the illustration below, only part of the center section is shown.
There is no need to completely remove the ribbon rewind unit,
only to rotate it in order to remove the tension to the belt. The prin-
ciples for EasyCoder 501 XP and 601 XP are the same, except for
the width of the print unit.
Stepper Motor
#T20 Torx Screw
Belt
#T20 Torx Screw
#T20 Torx Screw
Chapter 8 Print Unit
Ribbon Rewind
Unit
