5. Media Supply

5.1 Internal Supply

Media Supply Hub
Media Supply Hub
30

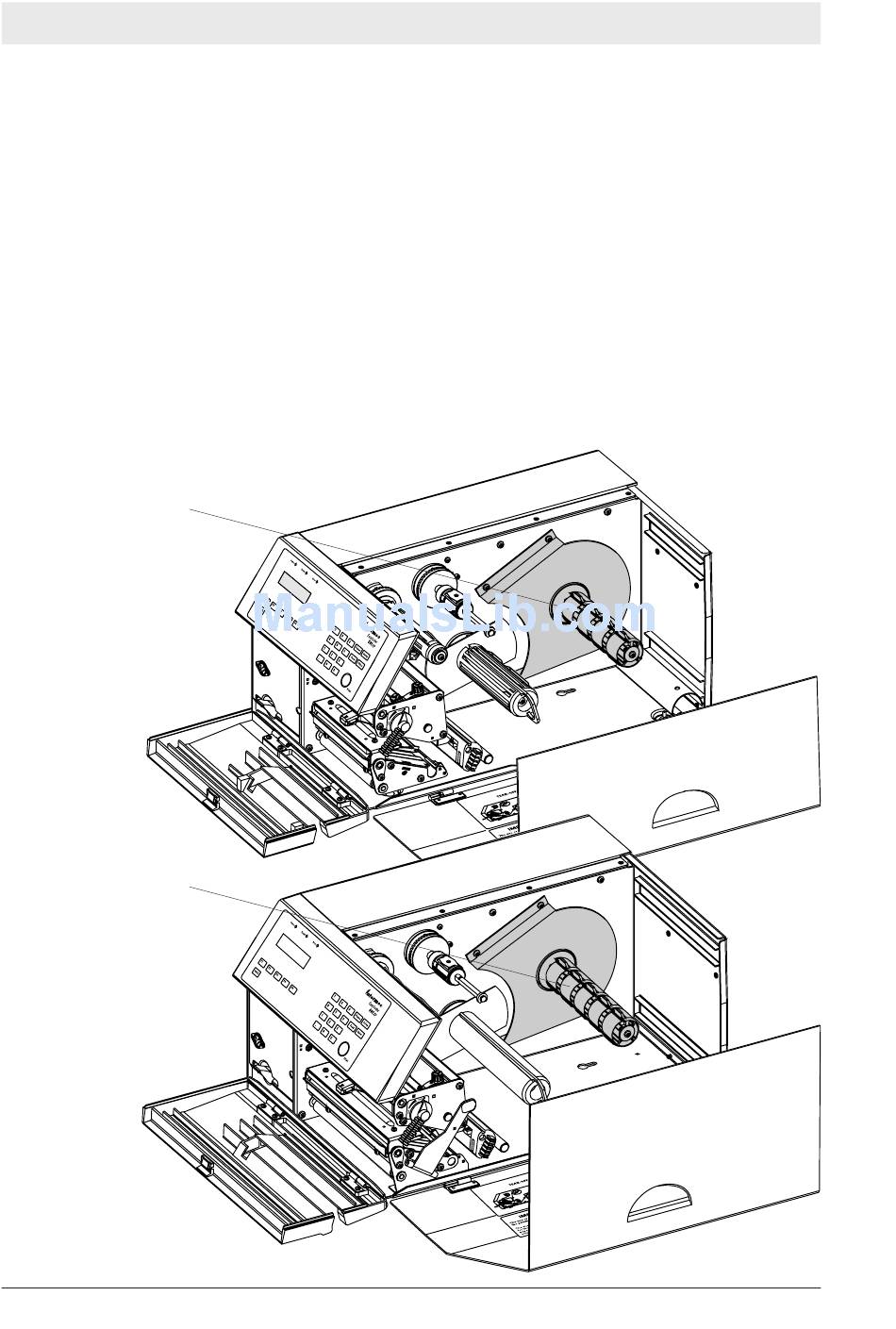

The internal media supply consists of a shaft with four or fi ve
modular hubs on which a media roll can be fi tted. The shaft is
screwed into a fl ange fi tted to the center section using two #T20
Torx screws inserted from the electronics compartment. The hub
modules are spring-loaded in order to fi t media roll cores with an
inner diameter between 38 and 40 mm (1.5 inches.)
A large crescent-shaped plate keeps the media roll aligned with the
print mechanism.
Maximum diameter of an internal media roll is 205 mm (8 inches)
and maximum width is 120 mm (4.7 inches) for EasyCoder 501
XP and 168 mm (6.61 inches) for EasyCoder 601 XP.
