Intermec EasyCoder 501 XP & 601 XP – Service Manual
Installation, Fan Fold Guides

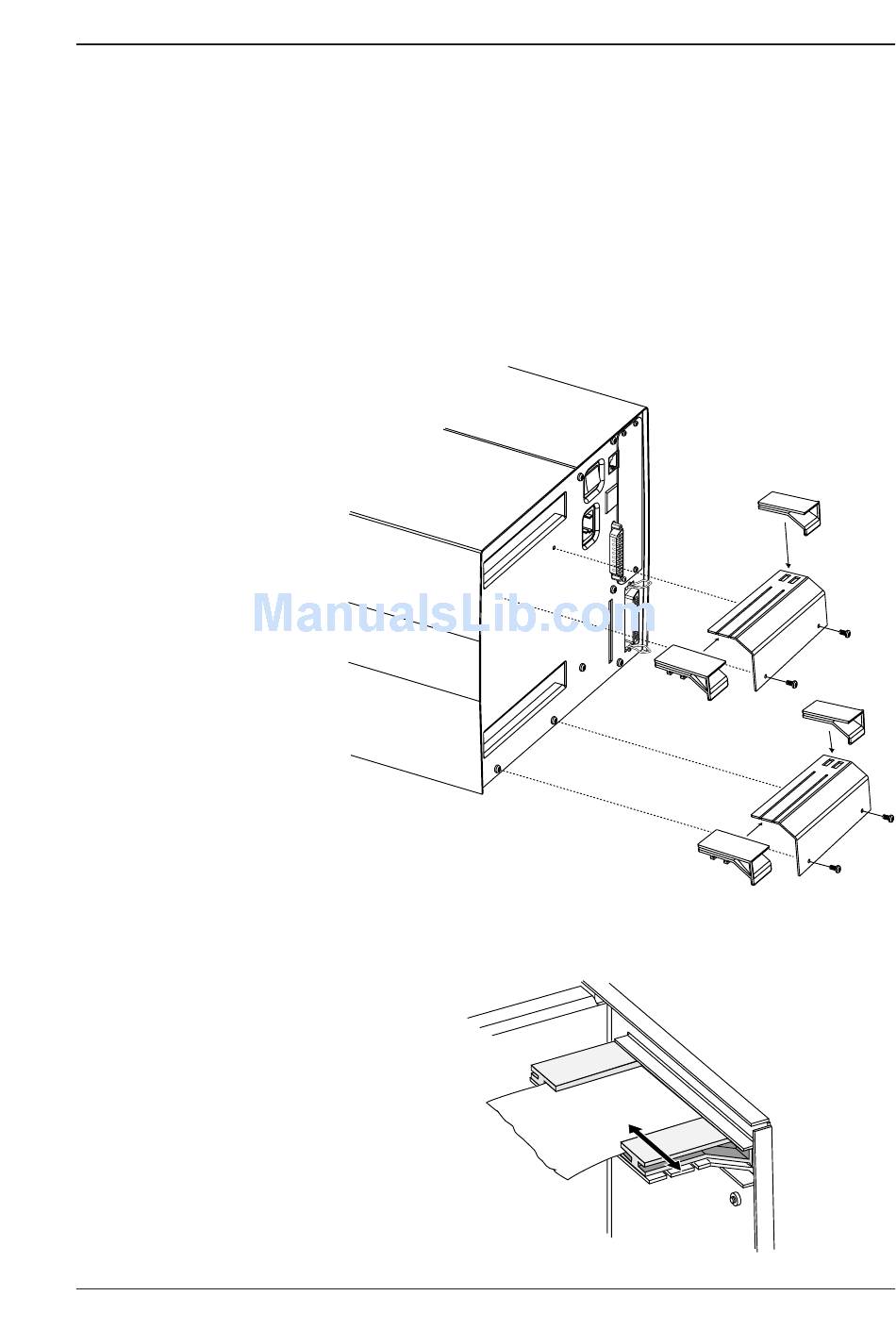

The bracket with the two guides can be fi tted either at the upper
or lower slot in the rear plate, depending on how the media supply
is located in relation to the printer. The principles are the same for
EasyCoder 501 XP and EasyCoder 601 XP (the former is illus-
trated on this and the next page).
Insert the complete unit through the slot from the outside and attach
it to the rear plate by means of two #T20 Torx screws. In case of
the upper position, use the screws included in the kit, and in case
of the lower position, use the two existing screws that hold the rear
plate to the bottom plate.
Adjust the position of the outer guide to fi t the width of the media.
