3.2 Front Hatch

Intermec EasyCoder 501 XP & 601 XP – Service Manual
The front hatch gives access to:
• The front part of the print mechanism
• The paper cutter connector
• The optional label taken sensor
The front hatch is fi tted to the bottom plate by means of two hinges
of the same type as those of the right-hand door. The front hatch
is kept shut by a snap-lock and can be swung down almost to a
vertical position. The hatch can be removed from its hinges by
pushing it to the left until the snap-lock on the right-hand hinge
disengages.
The front hatch can be replaced by an optional paper cutter unit,
see Chapter 11.
Alignment is performed in the same way as the right-hand door,
see previous page.

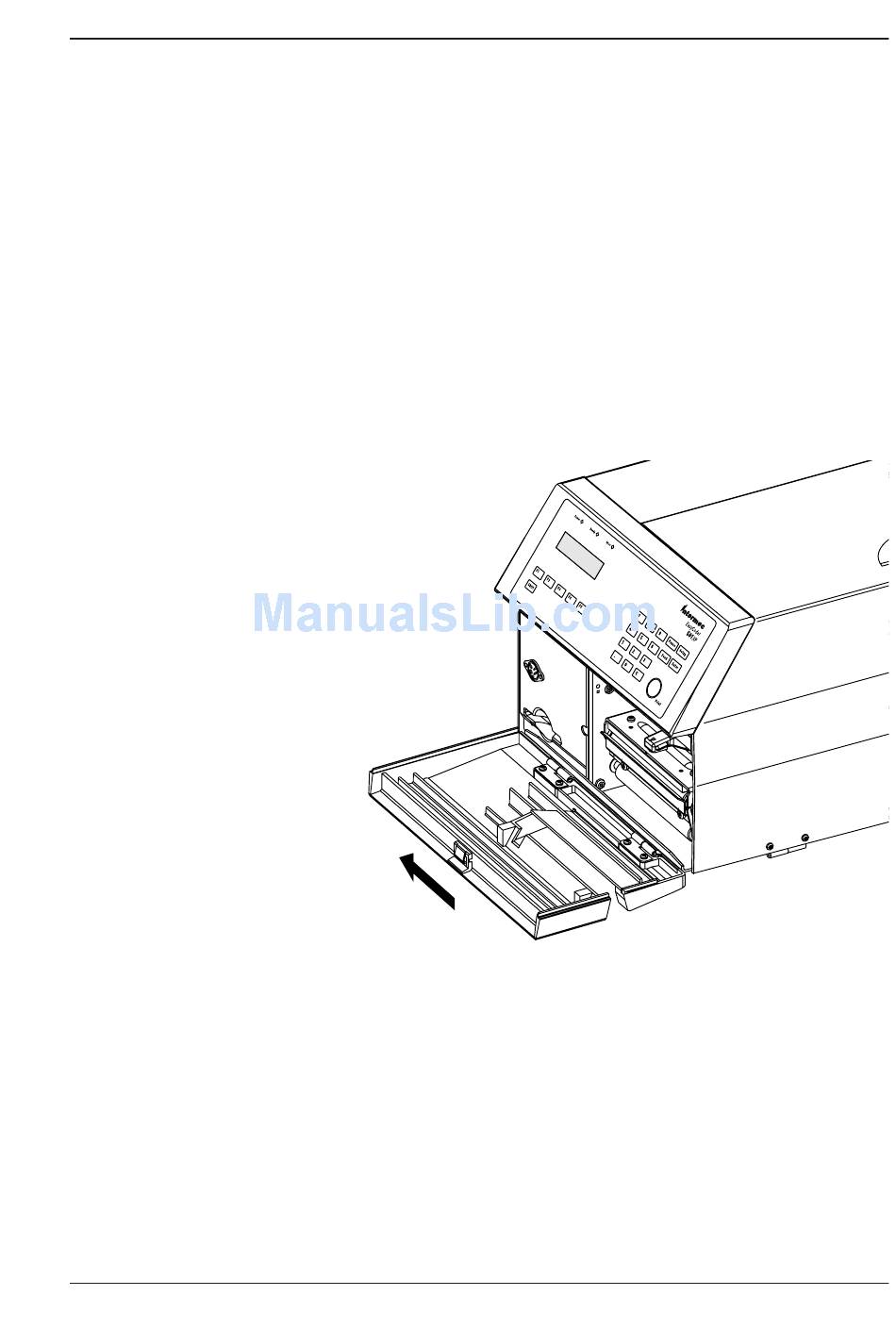

The front hatch can be removed by pushing it to the left when open
(illustration shows an EasyCoder 501 XP).
