4.4 Rear Plate

Intermec EasyCoder 501 XP & 601 XP – Service Manual

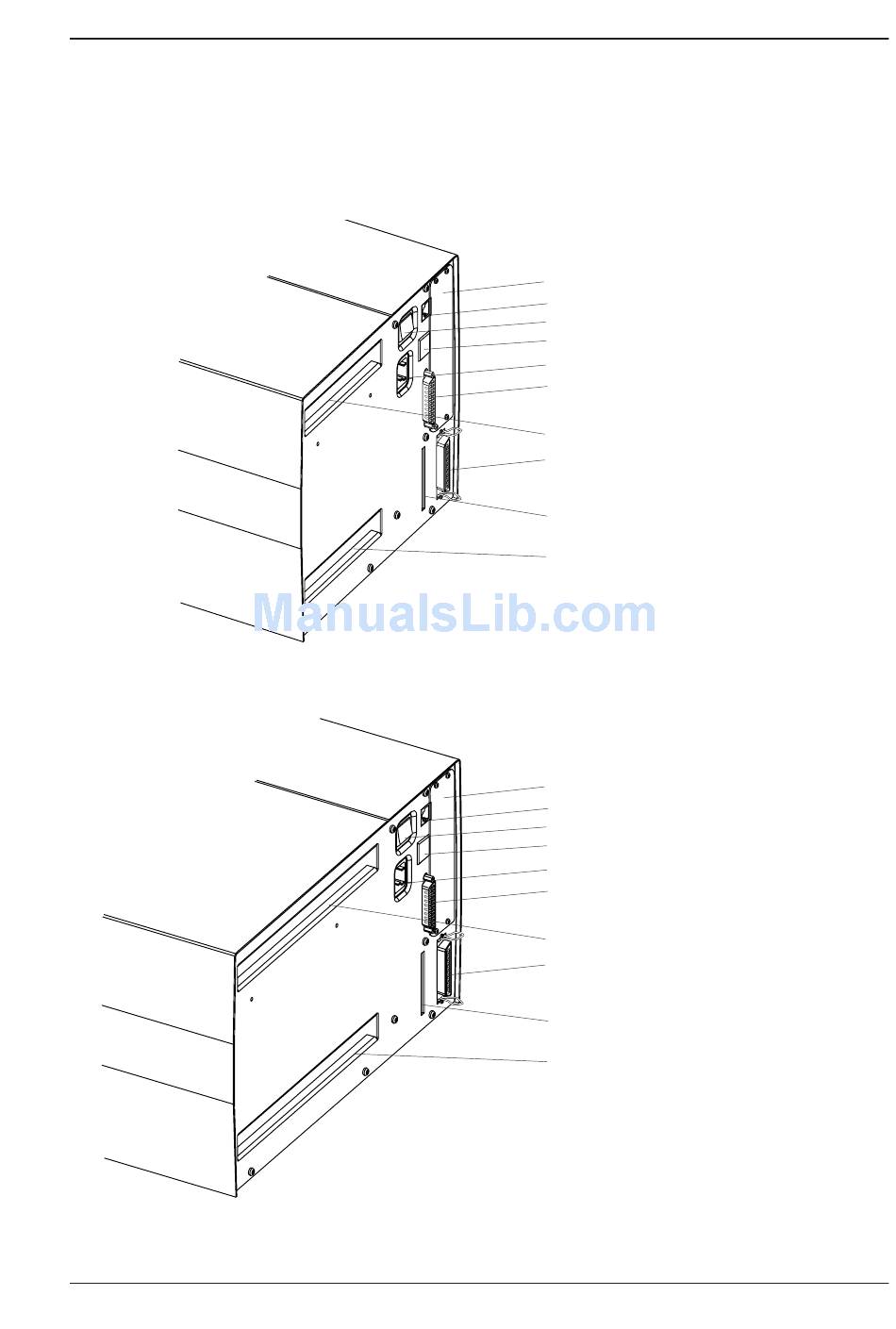

The rear plate is attached to the bottom plate using three #T20 Torx
screws and to the center section by two #T20 Torx screws. There
is also a bracket between the rear plate and the center section. The
rear plate has a number of slots for connectors, switches etc., as
illustrated below.
EasyCoder 501 XP
EasyCoder 601 XP
Chapter 4 Chassis
Provision for Optional Interface Board(s)
Bar Code Wand Interface
On/Off Switch
not used
AC Power Cord Receptacle
RS-232 Serial Interface ("uart1:")
Upper External Media Intake
Centronics Parallel Interface ("centronics:")
Memory Card Slot
Lower External Media Intake
Provision for Optional Interface Board(s)
Bar Code Wand Interface
On/Off Switch
not used
AC Power Cord Receptacle
RS-232 Serial Interface ("uart1:")
Upper External Media Intake
Centronics Parallel Interface ("centronics:")
Memory Card Slot
Lower External Media Intake
