9.1 Description, cont.
Intermec EasyCoder 501 XP & 601 XP – Service Manual

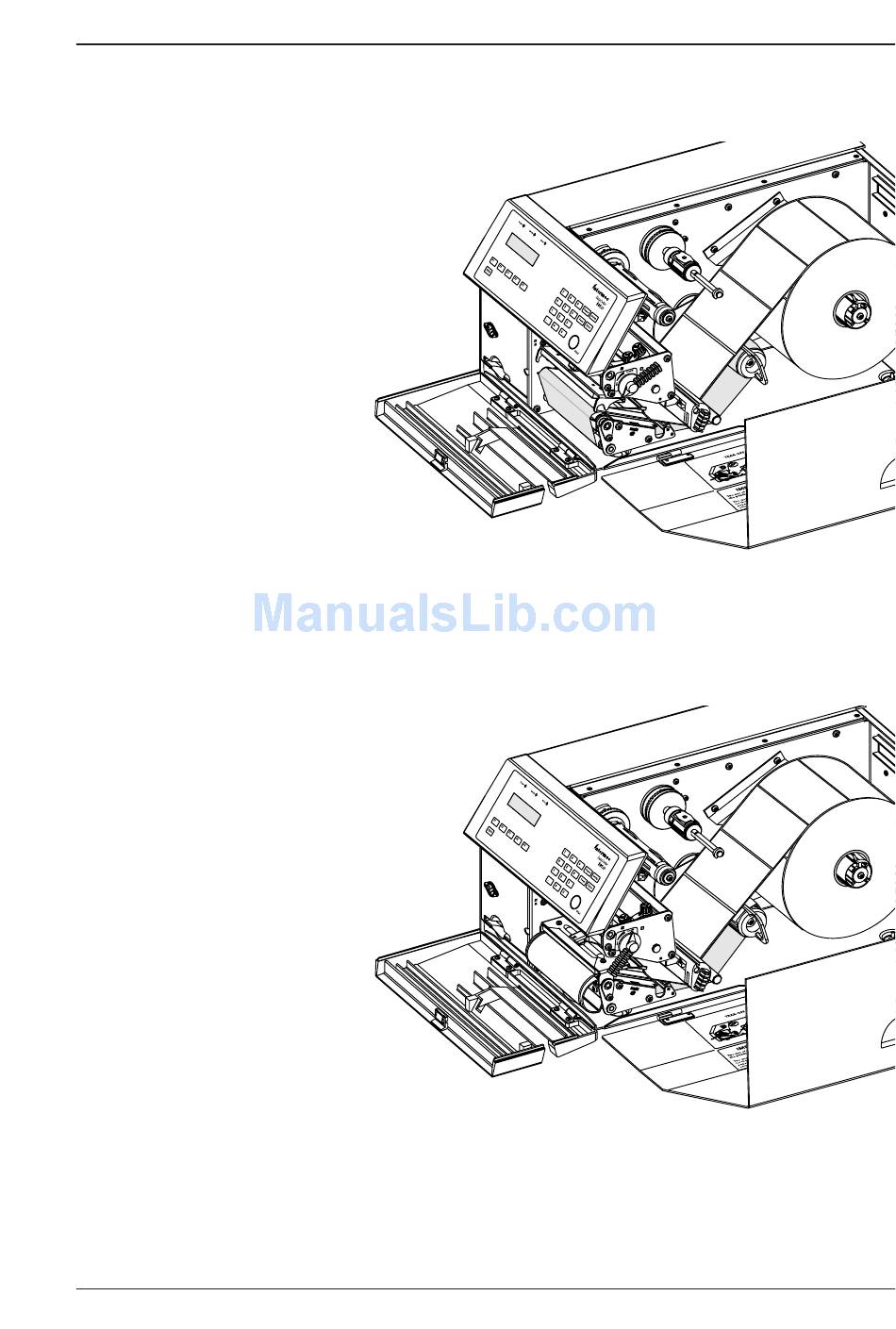

EasyCoder 501 XP; Peel-Off (Self-strip) Operation
The liner takeup unit can accommodate the liner from a full roll of
labels.
EasyCoder 501 XP; Batch Takeup Operation
The batch takeup unit can accommodate approx.
label roll.
Chapter 9 Liner/Batch Takeup Kit
1 1
/ to / of a full
4 3
