16.7 EasyLAN 100i
Interface Board
Intermec EasyCoder 501 XP & 601 XP – Service Manual
Description
The Intermec EasyLAN 100i Ethernet interface board is an
optional device for EasyCoder 501 XP and 601 XP which provides
these printers with a 10BaseT Ethernet or 100BaseTX Fast Ether-
net network connection. The EasyLAN 100i pcb may be factory-
installed, but can also be fi tted later using the EasyLAN 100i kit.
EasyLAN 100i supports most major computer systems and envi-
ronments. You can assign passwords to restrict both login and
printer access. The internal EasyLAN 100i web pages allow you
to continuously monitor printer status and to upgrade the fl ash
memory of the board when new print server software becomes
available.
EasyLAN 100i supports SNMP for remote monitoring.
The printer must be fi tted with Intermec Fingerprint v7.3 or later.
The Ethernet port is addressed as device "net1:" (communication
channel #5.)
Comprehensive information on how to connect, control, and print
with the printer in a local area network (LAN) or the World
Wide Web (www) can be found in the EasyLAN 100i Installation
Instructions and the EasyLAN 100i User's Manual.
Chapter 16 Interfaces

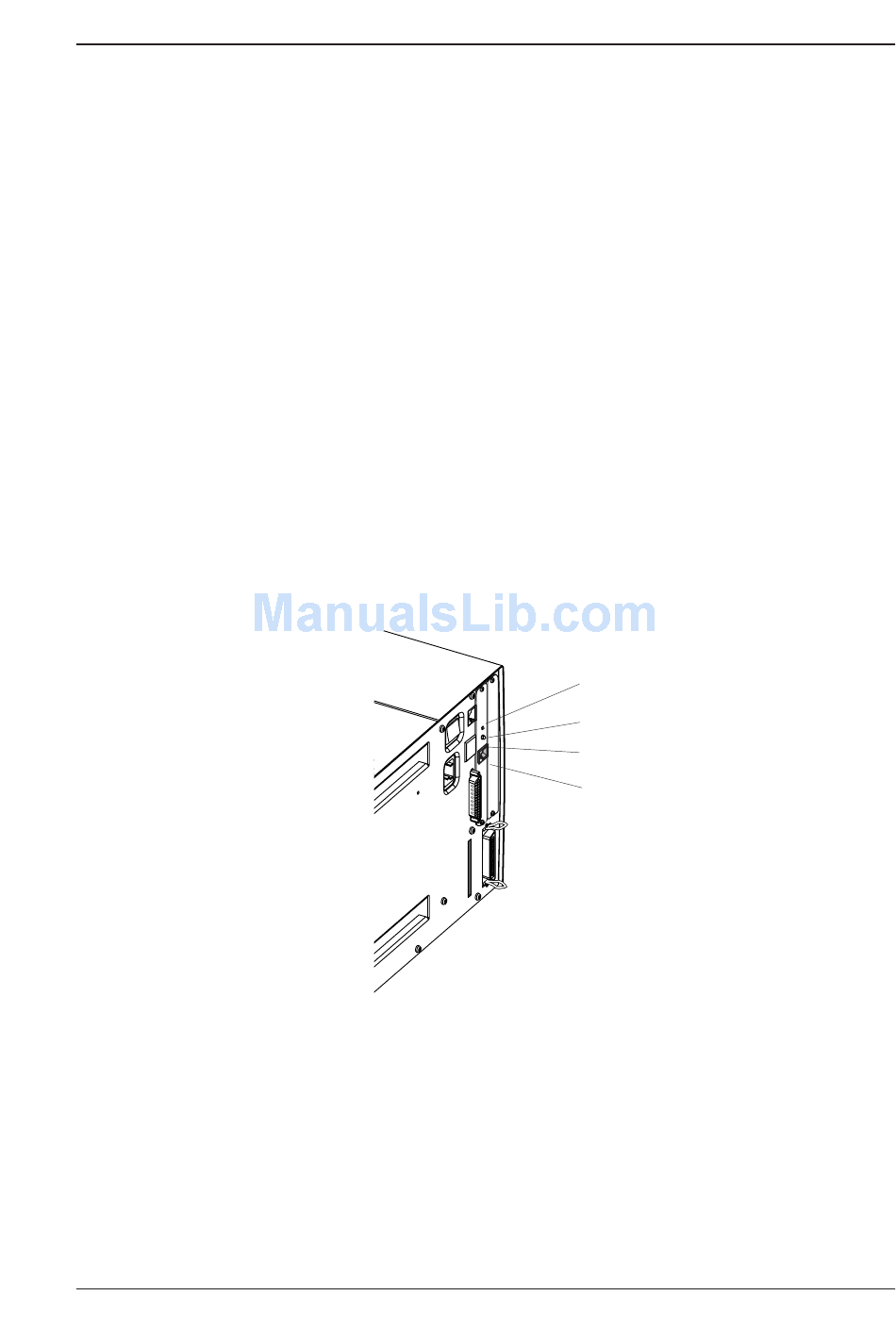

Serial Number Label
Network LED
Test Button
RJ-45 Connector
