Front; Keyboard/Display - Intermec EasyCoder 501 XP Service Manual

2. Front and Keyboard

2.1 Front

The entire Chapter 2 applies to both
EasyCoder 501 XP and EasyCoder
601 XP, the only differences being the
designation on the overlay and the
width of the front moulding.

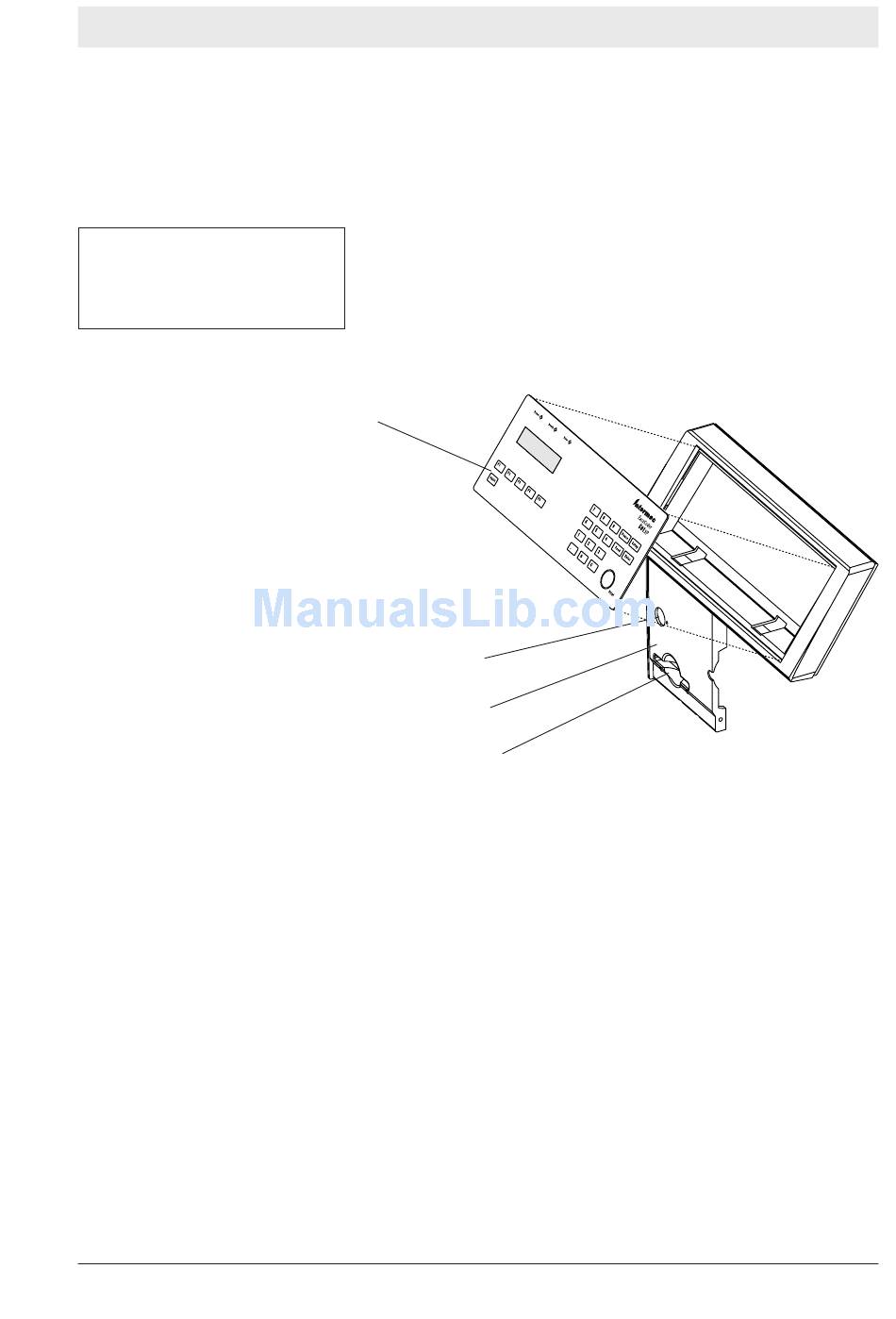

Keyboard/Display assy.

2.2 Keyboard/Display

Intermec EasyCoder 501 XP & 601 XP – Service Manual
The moulded front part is attached to the center section by means
of four #T20 screws and to the bottom plate by two #T20 screws.
The front moulding is provided with holes for mounting a cutter
connector (4-pin female DIN-type).
Note that the memory card adapter in EasyCoder XP printers is
fi tted on the CPU board and is accessible through a slot in the rear
plate whereas the slot in the front moulding is not used!
Provision for
Cutter Connection
Front Moulding
Not used!
At the top part of the front moulding, there is a cavity for the
keyboard/display assy. This assembly is affi xed by means of two
2 mm hexagon grub screws underneath the keyboard part of the
front moulding.
The keyboard/display assy. is connected to P37 at the front of the
CPU board via a 10-p fl at cable. This cable must be disconnected
before the keyboard/display can be removed.
The keyboard/display must be manipulated carefully when it is
lifted out of its cavity. Do not use any force! If the assembly seems
to be stuck, open the right-hand door and remove the left-hand
cover to check that the grub screws do not interfere with the brack-
ets.
We also recommend you to remove the left-hand cover before you
start to fi t the keyboard/display assy. back into the front moulding,
since it makes it easier to align the brackets with the grub screws.
Chapter 2
19
