Chapter 8 Print Unit
Description (EasyCoder 501 XP and 601 XP), cont.

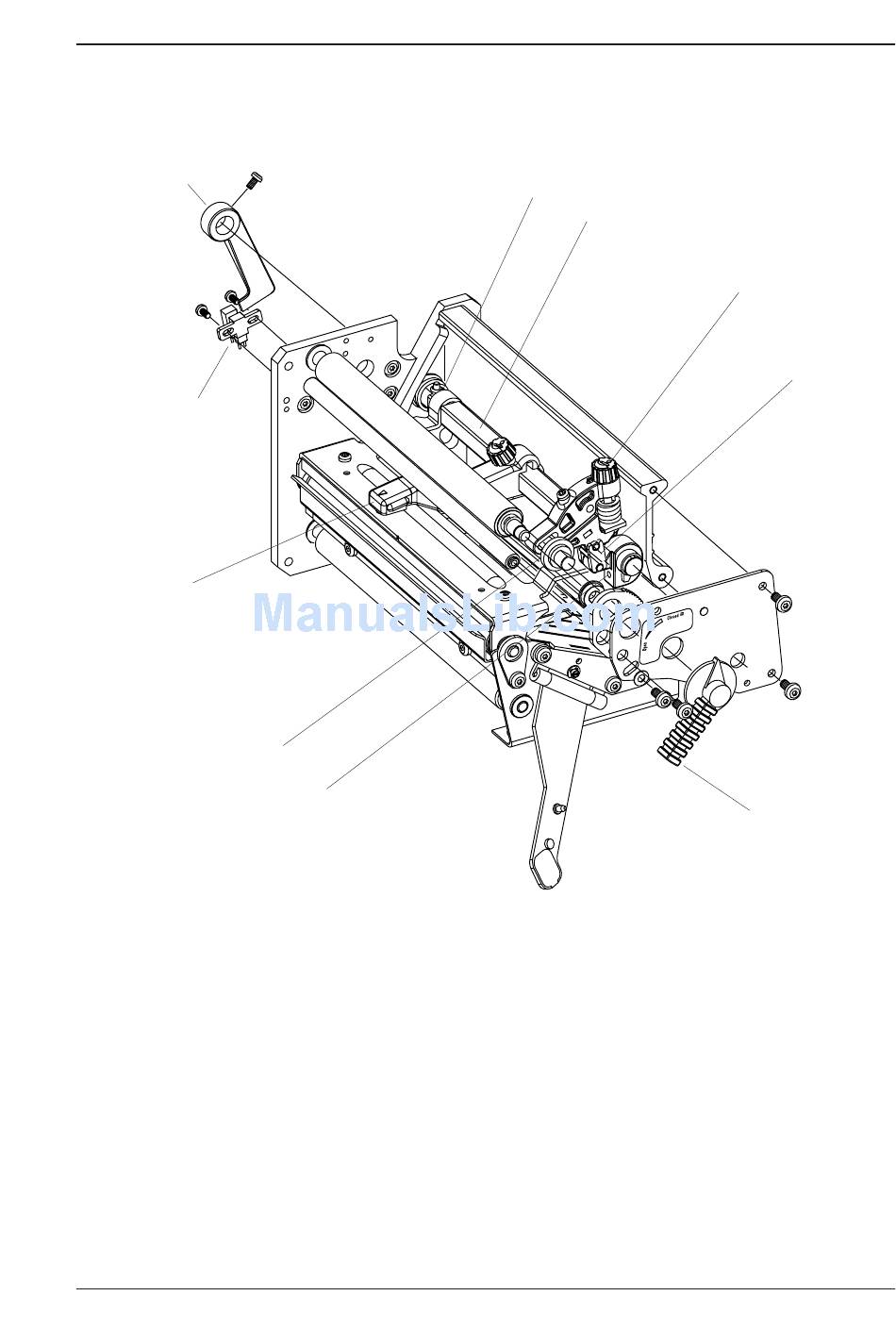

8.9 Headlift Mecha-
nism, cont.
Sensor Arm
Return Spring
Headlift Shaft
Pressure Adjuster
Linkage
Headlift Sensor
Headlift Arm
Eccenter
Printhead Pressure
Grub Screw
Printhead Lift Lever
(factory-adjustment)
EasyCoder 601 XP
Intermec EasyCoder 501 XP & 601 XP – Service Manual
79
