Serial Communication Port "Uart1 - Intermec EasyCoder 501 XP Service Manual

16.2 Serial Communi-
cation Port "uart1:"
Intermec EasyCoder 501 XP & 601 XP – Service Manual
The EasyCoder 501 XP and 601 XP are—as standard—always
fi tted with one RS-232 communication port. In Intermec Finger-
print, this port is designated "uart1:" (Universal Asynchronous
Receiver and Transmitter). The circuitry is fi tted on the CPU board

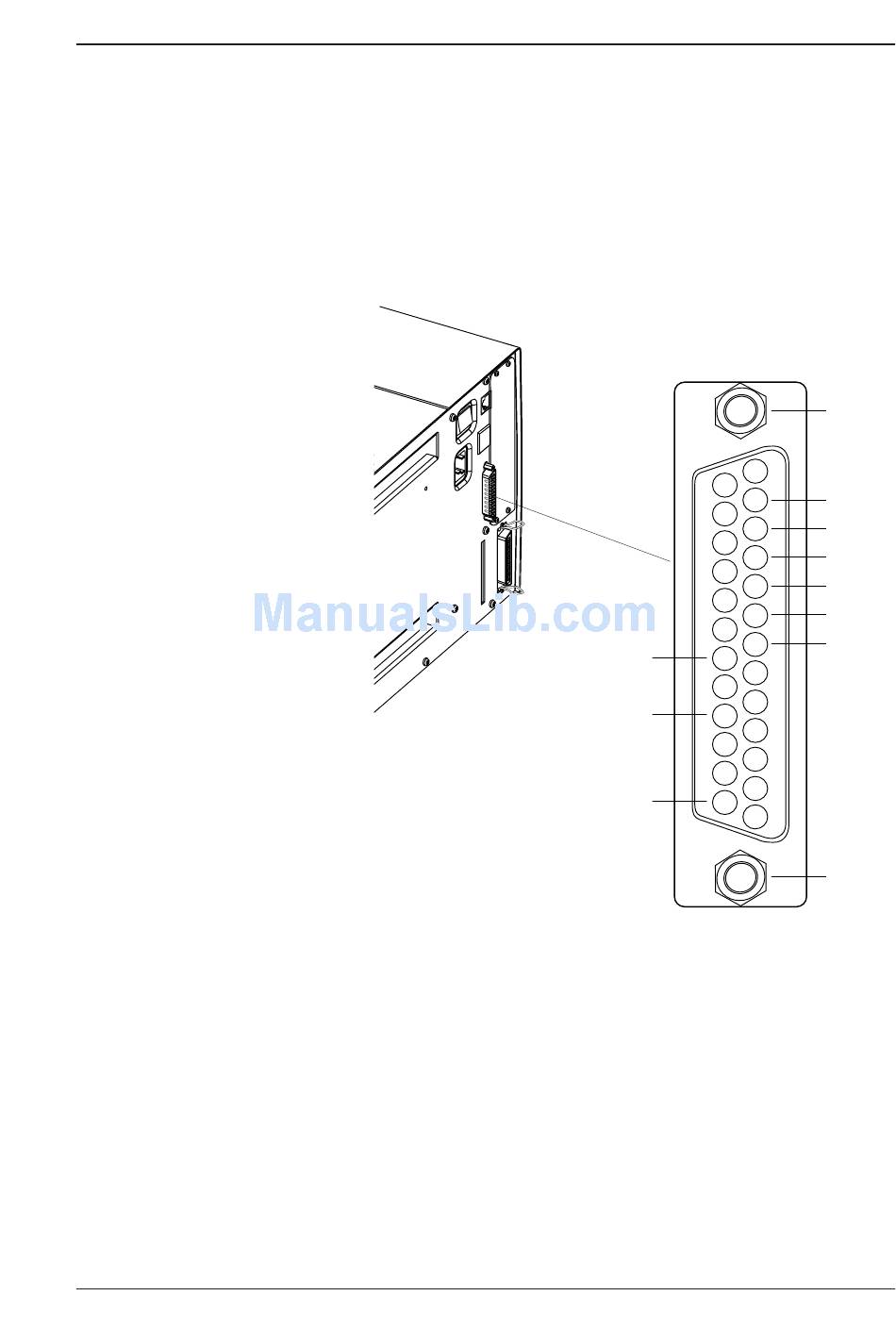

(see Chapter 15) and has a fi xed set of signals in a DB-25pin
male connector which protrudes through a slot in the printer's rear
plate.
By default, the printer is set up as follows:
Baud rate .................... :
Parity .......................... :
Char. length ................ :
Stop bits ..................... :
RTS/CTS .................... :
ENQ/ACK.................. :
XON/XOFF ............... :
New line ..................... :
The external +5V is limited to 200 mA and is automatically
switched off at overload. It is intended to drive for example an
external alphanumeric keyboard or a bar code reader.
Chapter 16 Interfaces
14
15
16
17
18
19
DTR out
20
21
RI
22
10
23
11
24
12
-RXD
25
13
9600
None
8 bits
1
Disabled
Disabled
Disabled both ways
CR/LF
GNDC
1
TXD out
2
RXD in
3
RTS out
4
CTS in
5
DSR in
6
GNDI
7
8
9
GNDC
