Chapter 8 Print Unit
8.7 Printhead, cont.
Dot-line
on printhead
Dot 0
72

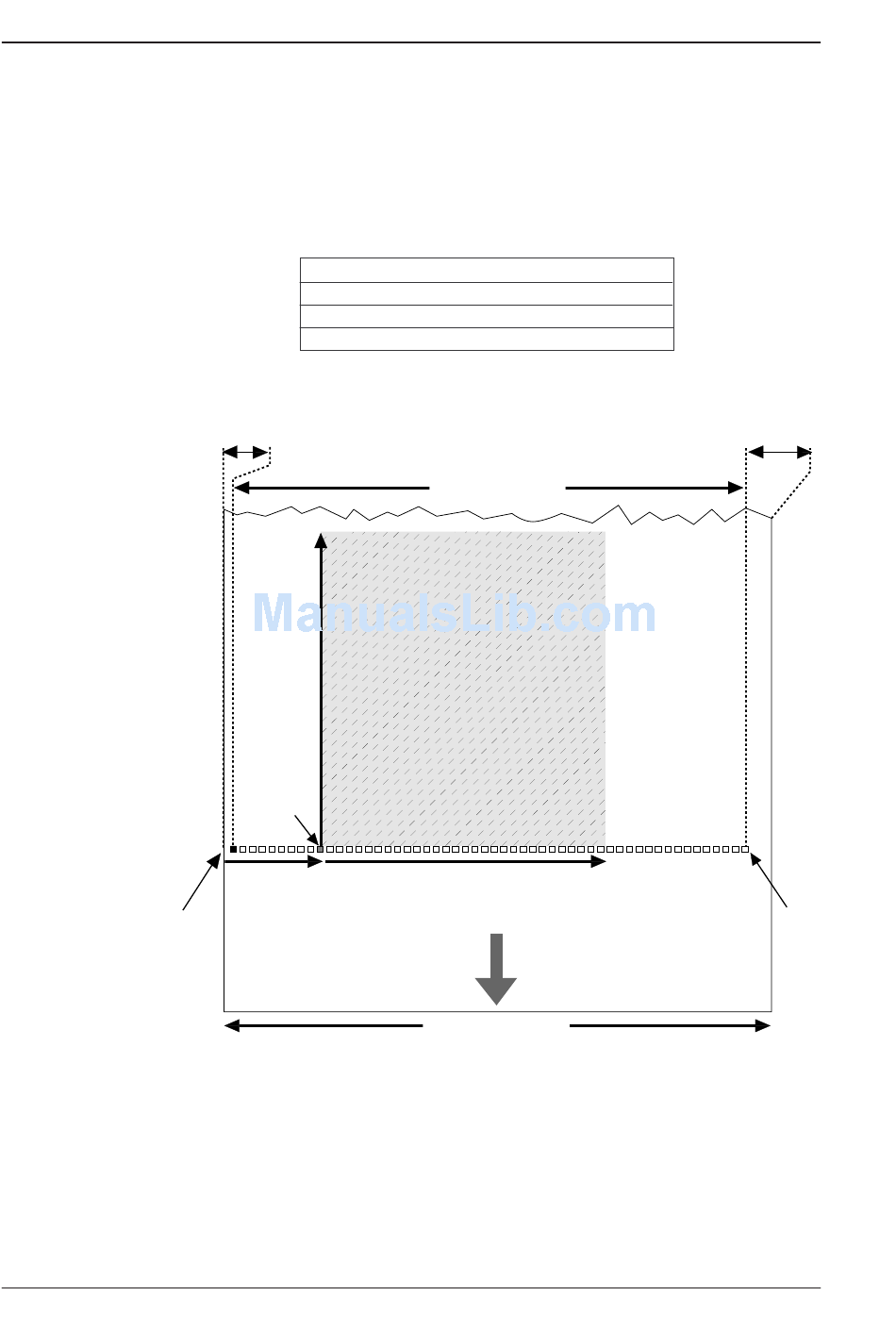

Print Window (EasyCoder 601 XP)
The 12 dots/mm (304.8 dpi) printhead contains 1984 dots, which
give a maximum print width of 168 mm (6.61 inches.) The same
unit of measure (dots) can be used both across and along the feed
direction.
Specifi cations
Density
Print width
Number of dots
Dot size
1.0 mm (0.04 in)
Length
Origin
X-start Width
12 dots/mm (304.8 dpi)
168 mm (6.61 in)
1984
0.083 mm (3.28 mils)
165.3 mm (6.49 in)
PRINT PRINT
WINDOW WINDOW
FEED
DIRECTION
max. 168 mm (6.61 in)
Intermec EasyCoder 501 XP & 601 XP – Service Manual
2.7 mm (0.11 in)
Dot 1983
