Chapter 4

4. Rear Plate

4.1 Description

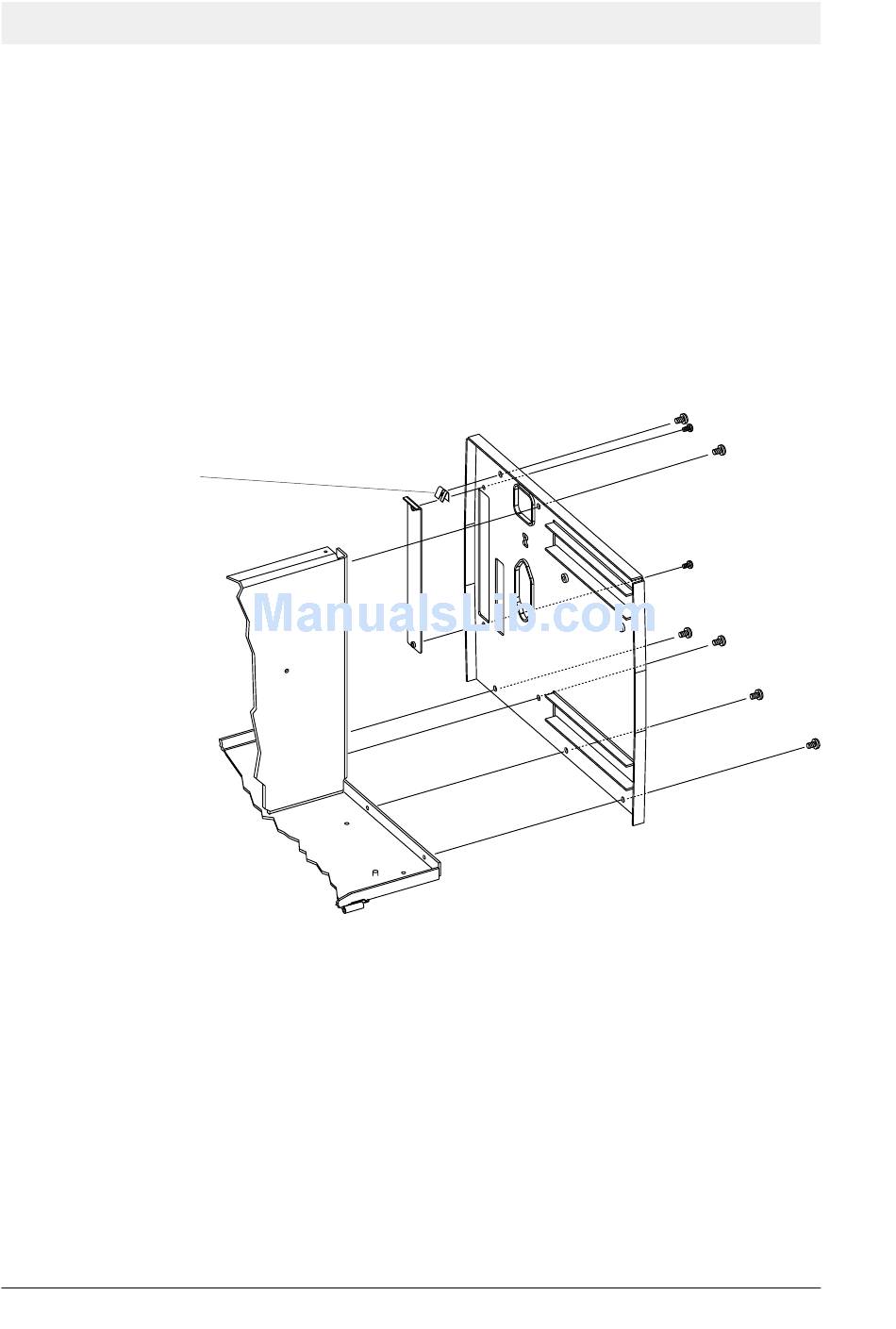

CPU Board Bracket
24
The rear plate is fi tted to the bottom plate by means of three #T20
Torx screws, and to the center section and the transformer unit by
two similar screws.
A bracket is affi xed to the inside of the rear plate by a screw (see
illustration below). The upper rear corner of the CPU board is
inserted into a slot in this bracket so as to provide increased stabil-
ity.
Any installed interface board will have to be disconnected before
the rear plate can be removed.
