12.2 Installation

Ribbon Low Sensor
NOTE!
The ribbon supply unit
does not need to be removed!
Intermec EasyCoder 501 XP & 601 XP – Service Manual
• Open the right-hand door.
• Switch off the power and remove the left-hand cover.
• From the media compartment side, insert the connector and
cable through the square hole in the center section.

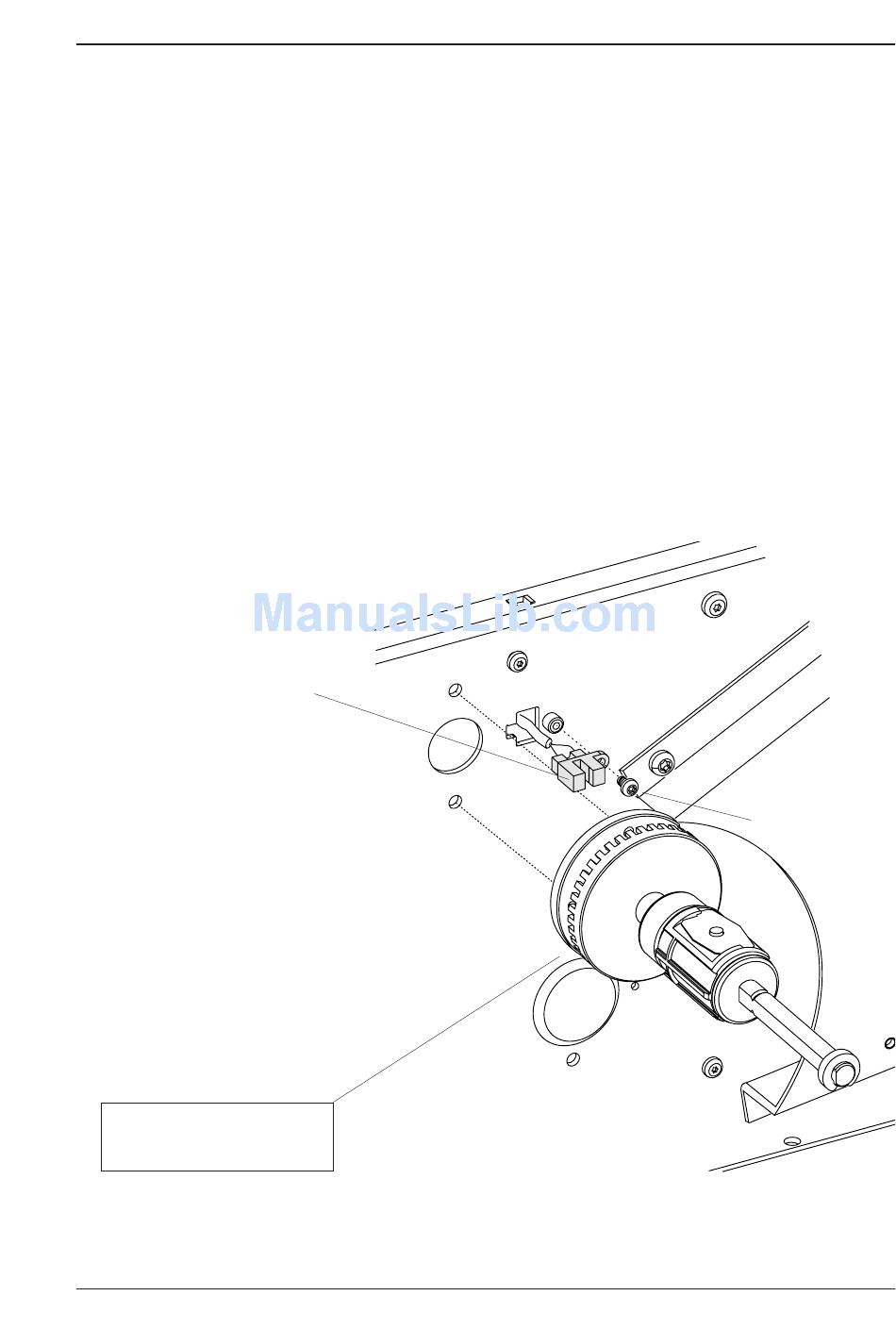

• Insert the sensor under the code disc of the ribbon supply unit
so the disc will run in the U-shaped slot between the receiver
and transmitter. There is no need to remove the ribbon unwind
unit.
• Attach the sensor to the center section by means of one #T10
Torx screw. Check that the code disc can rotate freely.
• Connect the cable to P57 on the CPU board, see Chapter 15.3.
• Put back the left-hand cover.
• Switch on the power and check that the sensor works by reading
its values using a PRINT SYSVAR(13) instruction in Intermec
Fingerprint while manually rotating the ribbon supply hub.
Chapter 12 Ribbon Low Sensor
#T10 Torx Screw
