Chapter 11 Cutter
11.4 Installation, cont.
102
• Tilt the cutter unit upwards until it locks into place. If the cutter
does not lock properly, the hinges of the cutter unit may need to
be adjusted using a #T10 Torx screwdriver.
EasyCoder 501 XP Cutter
EasyCoder 601 XP Cutter
• Connect the power cord and switch on power. The cutter will
perform an idle cycle in order to occupy its home position.
• Switch off the power. Tilt down the cutter and route the media
through the cutter unit between the guide plates (see illustra-
tion above). Then tilt the cutter up again and lock it in closed
position. Check that the printhead is lowered and switch on the
power. Now the printer is ready for operation.
Intermec EasyCoder 501 XP & 601 XP – Service Manual

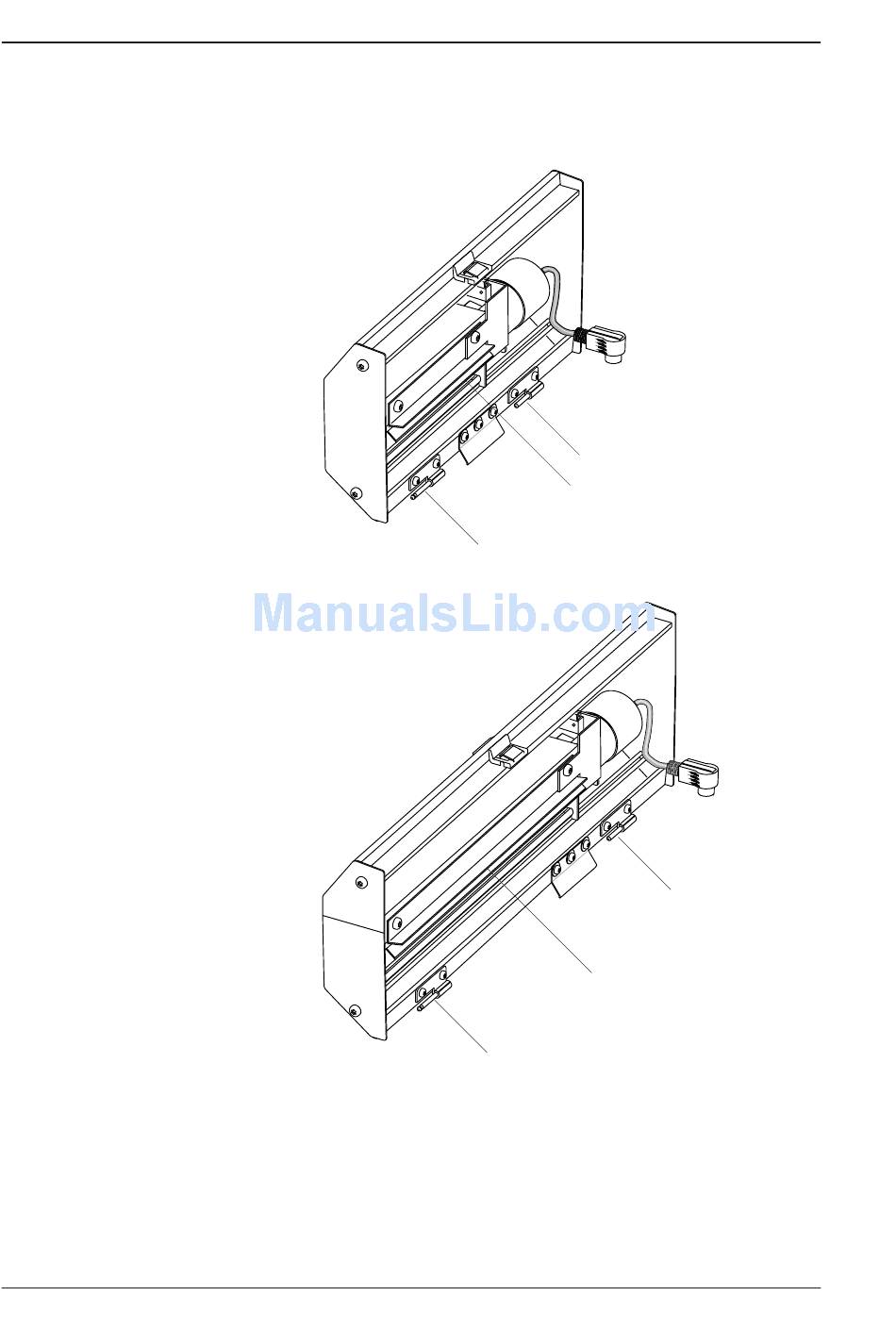

Hinge
Guide Plates
(insert media between the plates)
Hinge
Guide Plates
(insert media between the plates)
Hinge
Hinge
