Chapter 4 — Chassis
4.1 Description
Center section
Hinges
Hinges
(front door
or cutter)
Rubber foot (x4)
30

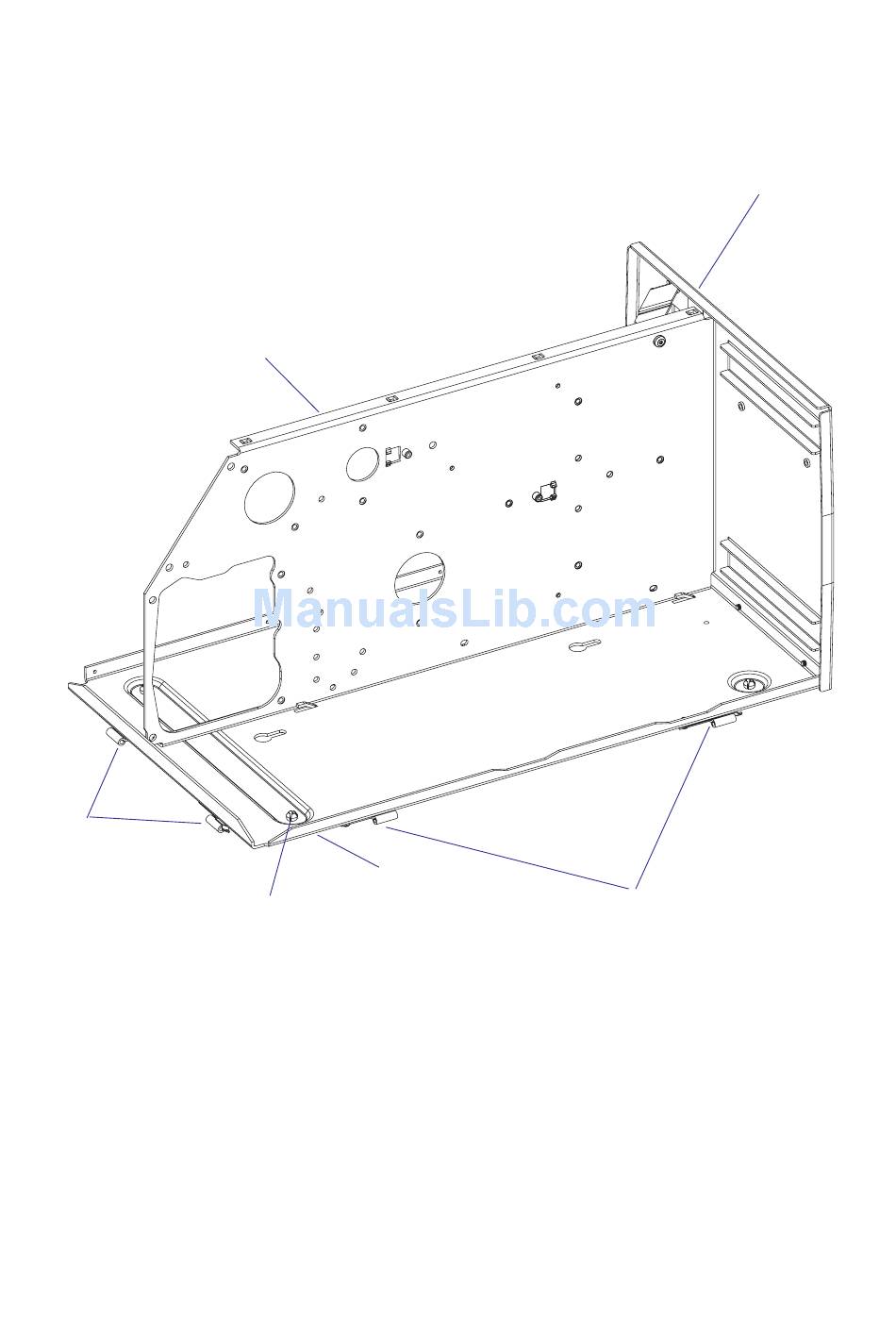

The printer's chassis consists of three main parts:
• The center section
• The bottom plate
• The rear plate
Bottom plate
EasyCoder PX4i
Hinges
(right-hand door)
EasyCoder PX4i and PX6i Service Manual
Rear plate
