I Electronic Keyer Functions - Icom IC-7400 Instruction Manual

4
RECEIVE AND TRANSMIT

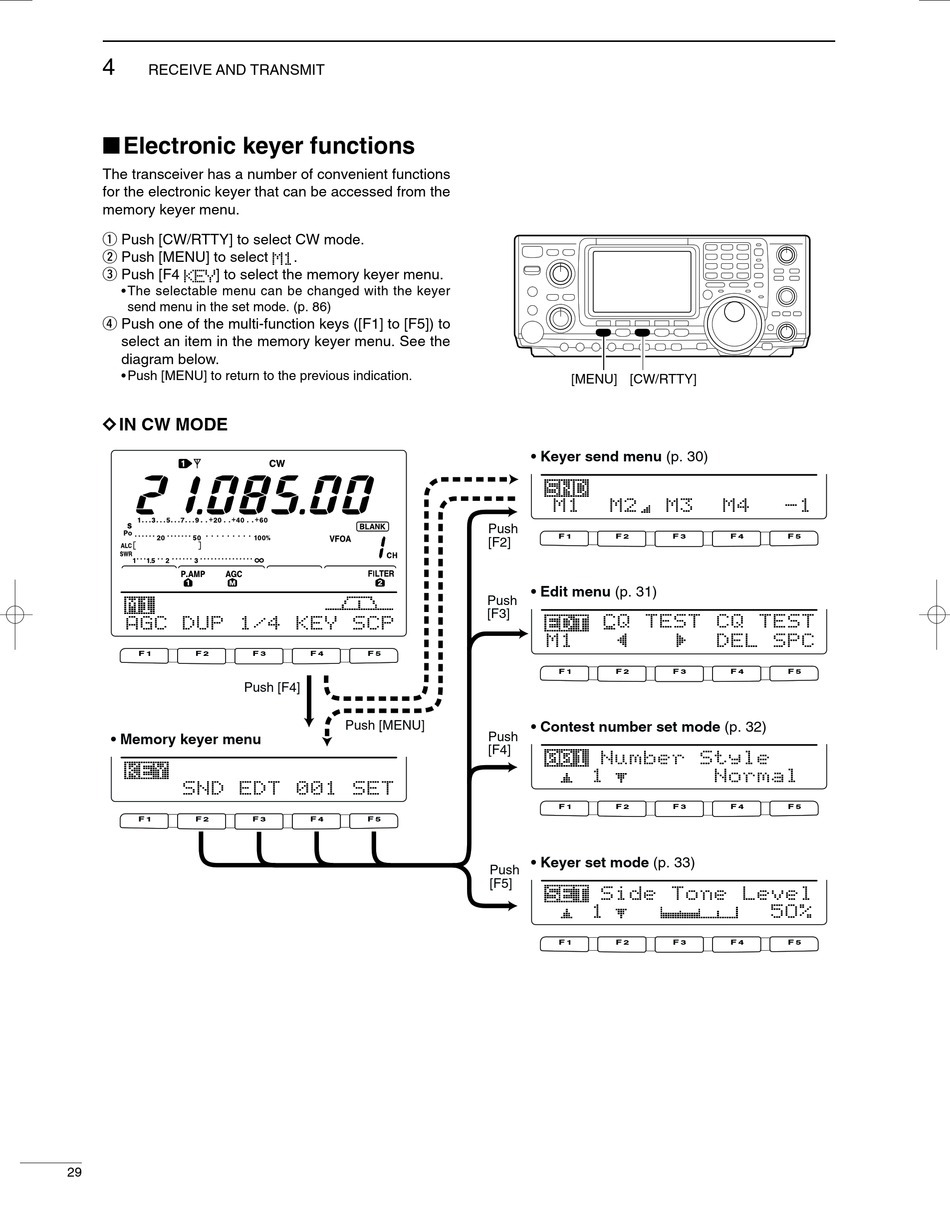

I Electronic keyer functions

The transceiver has a number of convenient functions
for the electronic keyer that can be accessed from the
memory keyer menu.
q Push [CW/RTTY] to select CW mode.
w Push [MENU] to select
e Push [F4
] to select the memory keyer menu.
• The selectable menu can be changed with the keyer
send menu in the set mode. (p. 86)
r Push one of the multi-function keys ([F1] to [F5]) to
select an item in the memory keyer menu. See the
diagram below.
• Push [MENU] to return to the previous indication.
D D IN CW MODE
F 1 F 2
• Memory keyer menu
F 1 F 2
29
.
F 3 F 4 F 5
Push [F4]
Push [MENU]
F 3 F 4 F 5
[MENU] [CW/RTTY]
• Keyer send menu (p. 30)
Push
F 1 F 2
[F2]
• Edit menu (p. 31)
Push
[F3]
F 1 F 2
• Contest number set mode (p. 32)
Push
[F4]
F 1 F 2
• Keyer set mode (p. 33)
Push
[F5]
F 1 F 2
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
