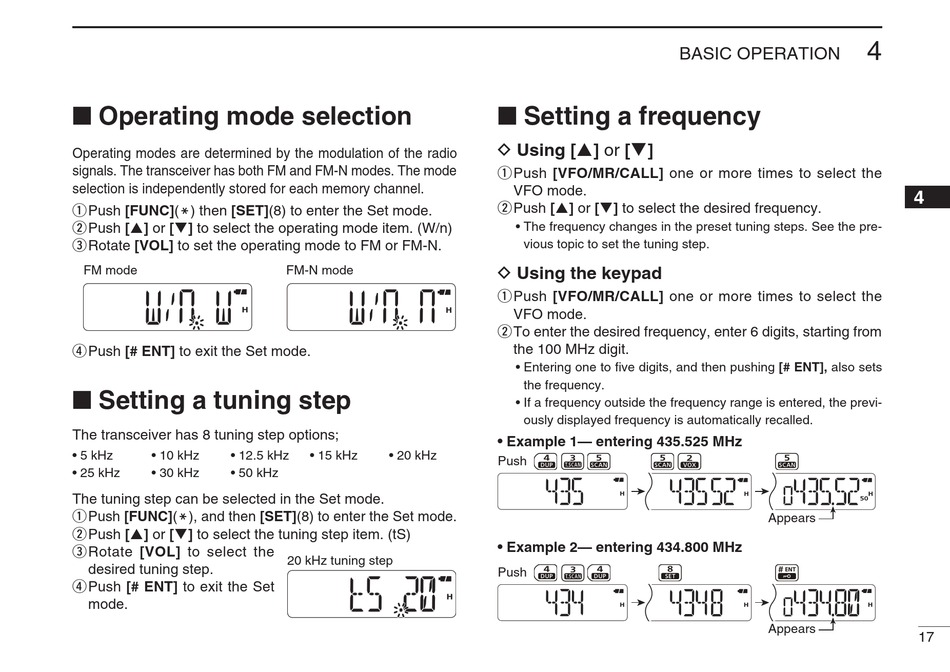

■ Operating mode selection

Operating modes are determined by the modulation of the radio
signals. The transceiver has both FM and FM-N modes. The mode
selection is independently stored for each memory channel.
q Push [FUNC](M) then [SET](8) to enter the Set mode.
w Push [p] or [q] to select the operating mode item. (W/n)
e Rotate [VOL] to set the operating mode to FM or FM-N.
FM mode
r Push [# ENT] to exit the Set mode.

■ Setting a tuning step

The transceiver has 8 tuning step options;
• 5 kHz • 10 kHz • 12.5 kHz
• 25 kHz • 30 kHz • 50 kHz
The tuning step can be selected in the Set mode.
q Push [FUNC](M), and then [SET](8) to enter the Set mode.
w Push [p] or [q] to select the tuning step item. (tS)
e Rotate [VOL] to select the
desired tuning step.
r Push [# ENT] to exit the Set
mode.
FM-N mode
• 15 kHz • 20 kHz
20 kHz tuning step

■ Setting a frequency

D Using [p] or [q]
q Push [VFO/MR/CALL] one or more times to select the
VFO mode.
w Push [p] or [q] to select the desired frequency.
• The frequency changes in the preset tuning steps. See the pre-
vious topic to set the tuning step.
D Using the keypad
q Push [VFO/MR/CALL] one or more times to select the
VFO mode.
w To enter the desired frequency, enter 6 digits, starting from
the 100 MHz digit.
• Entering one to five digits, and then pushing [# ENT], also sets
the frequency.
• If a frequency outside the frequency range is entered, the previ-
ously displayed frequency is automatically recalled.
• Example 1— entering 435.525 MHz
Push
• Example 2— entering 434.800 MHz
Push
BASIC OPERATION
Appears
Appears
