Status
IP Address
MAC Address
UP Time
RX Packet
TX Packet

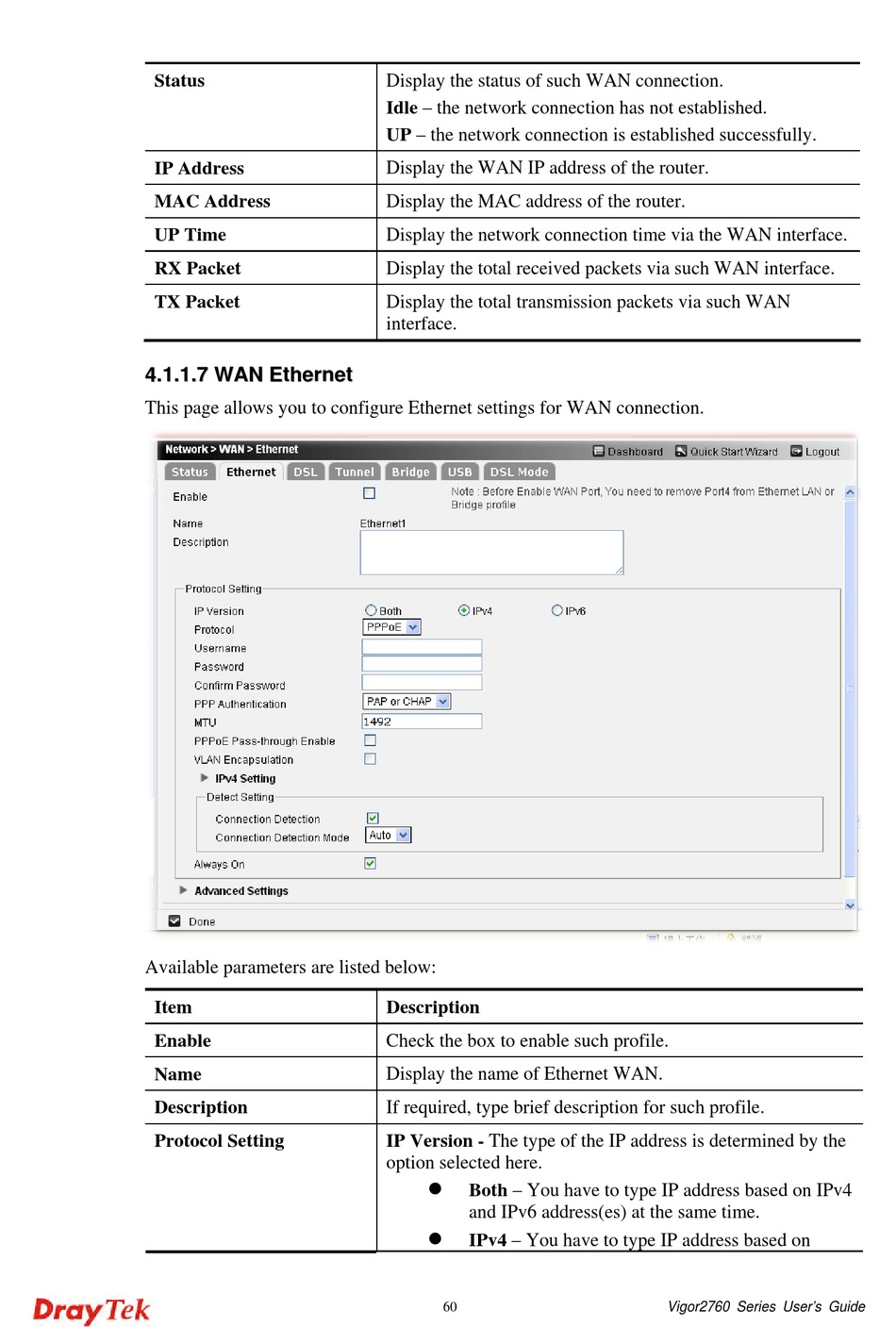

4 4 . . 1 1 . . 1 1 . . 7 7 W W A A N N E E t t h h e e r r
This page allows you to configure Ethernet settings for WAN connection.
Available parameters are listed below:
Item
Enable
Name
Description
Protocol Setting
Display the status of such WAN connection.
Idle – the network connection has not established.
UP – the network connection is established successfully.
Display the WAN IP address of the router.
Display the MAC address of the router.
Display the network connection time via the WAN interface.
Display the total received packets via such WAN interface.
Display the total transmission packets via such WAN
interface.
n n e e t t
Description
Check the box to enable such profile.
Display the name of Ethernet WAN.
If required, type brief description for such profile.
IP Version - The type of the IP address is determined by the
option selected here.

Both – You have to type IP address based on IPv4
and IPv6 address(es) at the same time.

IPv4 – You have to type IP address based on
