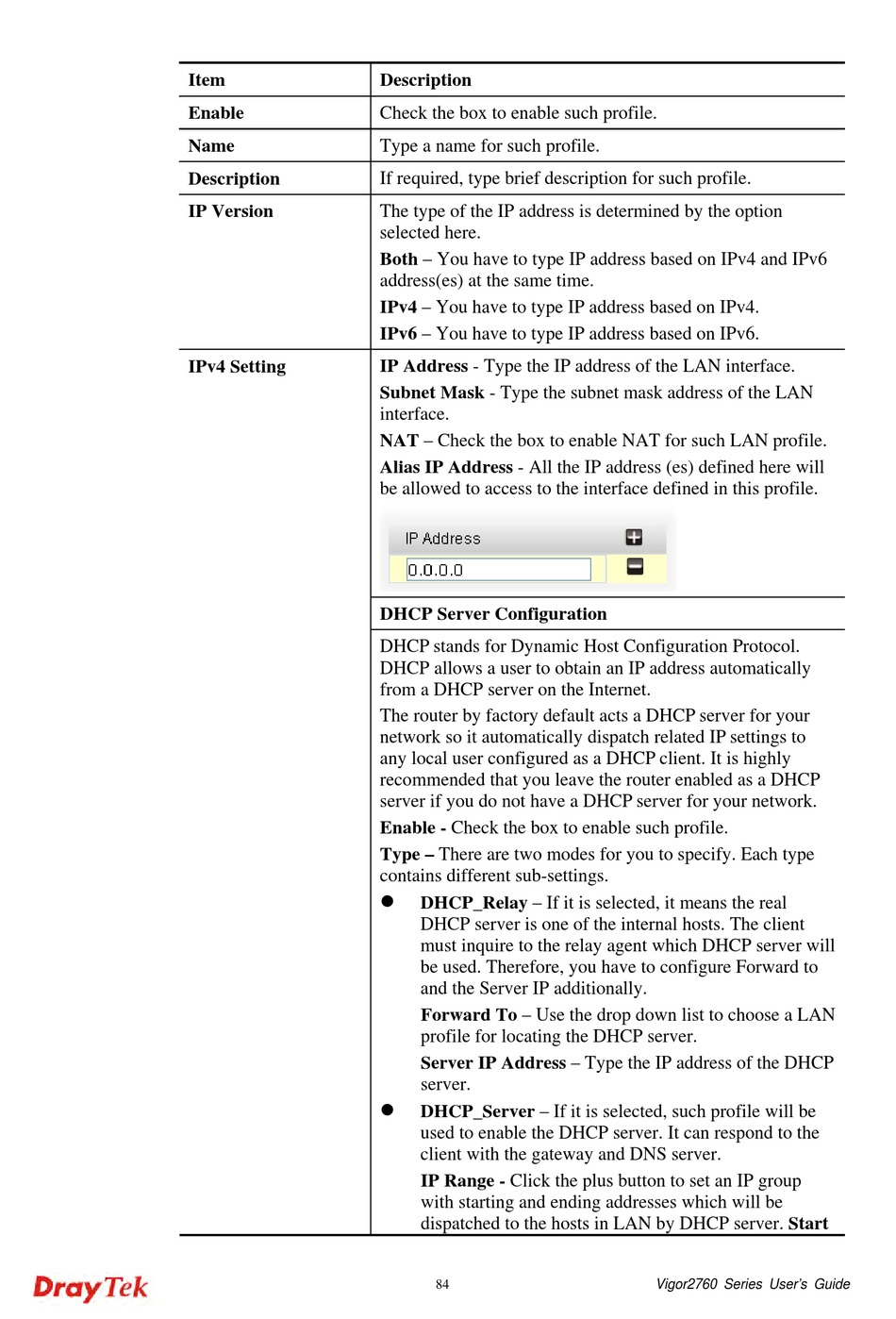

Draytek Vigor2760 User Manual page 94

Item
Enable
Name
Description
IP Version
IPv4 Setting
Description
Check the box to enable such profile.
Type a name for such profile.
If required, type brief description for such profile.
The type of the IP address is determined by the option
selected here.
Both – You have to type IP address based on IPv4 and IPv6
address(es) at the same time.
IPv4 – You have to type IP address based on IPv4.
IPv6 – You have to type IP address based on IPv6.
IP Address - Type the IP address of the LAN interface.
Subnet Mask - Type the subnet mask address of the LAN
interface.
NAT – Check the box to enable NAT for such LAN profile.
Alias IP Address - All the IP address (es) defined here will
be allowed to access to the interface defined in this profile.
DHCP Server Configuration
DHCP stands for Dynamic Host Configuration Protocol.
DHCP allows a user to obtain an IP address automatically
from a DHCP server on the Internet.
The router by factory default acts a DHCP server for your
network so it automatically dispatch related IP settings to
any local user configured as a DHCP client. It is highly
recommended that you leave the router enabled as a DHCP
server if you do not have a DHCP server for your network.
Enable - Check the box to enable such profile.
Type – There are two modes for you to specify. Each type
contains different sub-settings.

DHCP_Relay – If it is selected, it means the real
DHCP server is one of the internal hosts. The client
must inquire to the relay agent which DHCP server will
be used. Therefore, you have to configure Forward to
and the Server IP additionally.
Forward To – Use the drop down list to choose a LAN
profile for locating the DHCP server.
Server IP Address – Type the IP address of the DHCP
server.

DHCP_Server – If it is selected, such profile will be
used to enable the DHCP server. It can respond to the
client with the gateway and DNS server.
IP Range - Click the plus button to set an IP group
with starting and ending addresses which will be
dispatched to the hosts in LAN by DHCP server. Start
