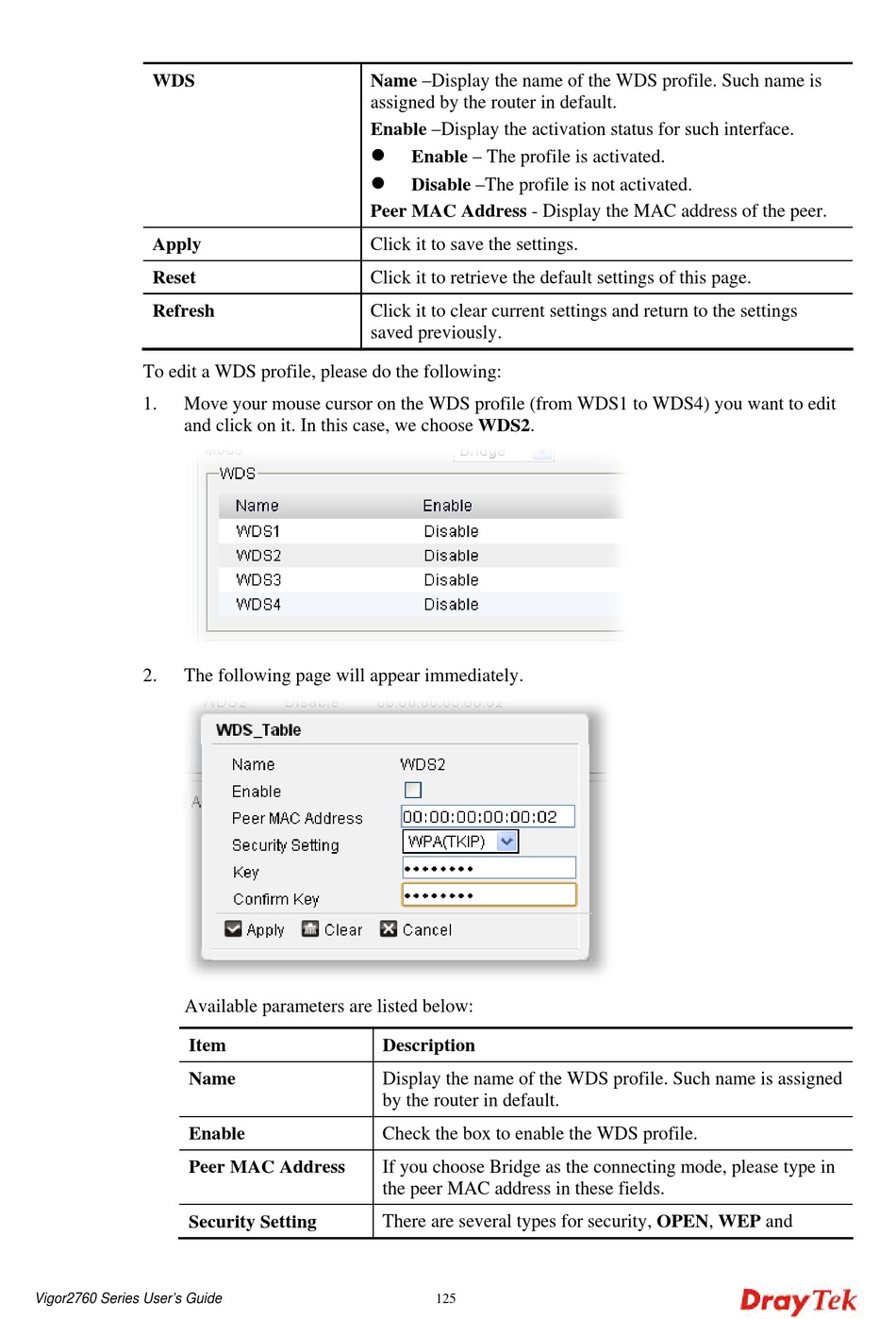

Draytek Vigor2760 User Manual page 135

WDS
Apply
Reset
Refresh
To edit a WDS profile, please do the following:
1. Move your mouse cursor on the WDS profile (from WDS1 to WDS4) you want to edit
and click on it. In this case, we choose WDS2.
2. The following page will appear immediately.
Available parameters are listed below:
Item
Name
Enable
Peer MAC Address
Security Setting
Vigor2760 Series User's Guide
Name –Display the name of the WDS profile. Such name is
assigned by the router in default.
Enable –Display the activation status for such interface.

Enable – The profile is activated.

Disable –The profile is not activated.
Peer MAC Address - Display the MAC address of the peer.
Click it to save the settings.
Click it to retrieve the default settings of this page.
Click it to clear current settings and return to the settings
saved previously.
Description
Display the name of the WDS profile. Such name is assigned
by the router in default.
Check the box to enable the WDS profile.
If you choose Bridge as the connecting mode, please type in
the peer MAC address in these fields.
There are several types for security, OPEN, WEP and
