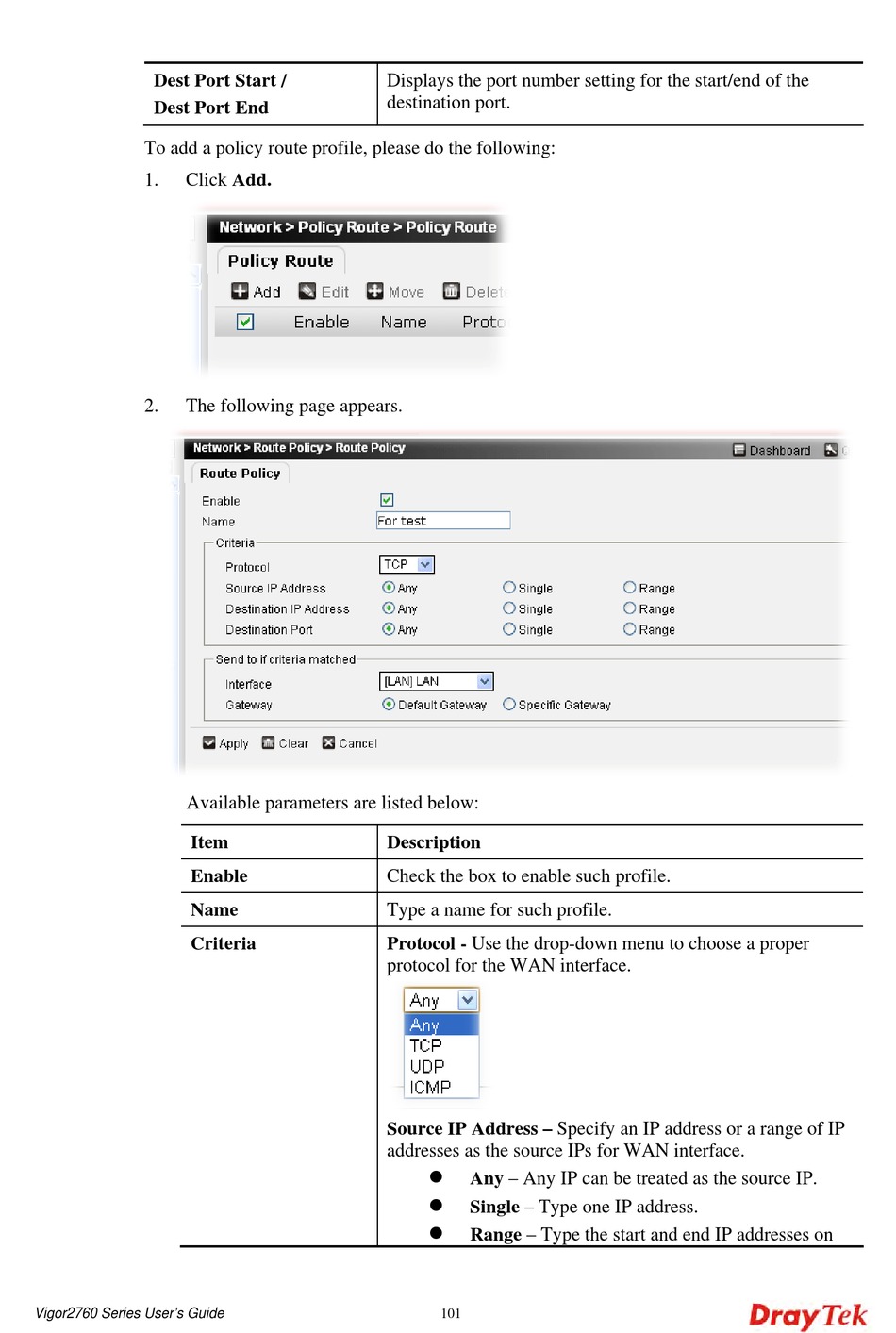

Dest Port Start /
Dest Port End
To add a policy route profile, please do the following:
1.
Click Add.
2.
The following page appears.
Available parameters are listed below:
Item
Enable
Name
Criteria
Vigor2760 Series User's Guide
Displays the port number setting for the start/end of the
destination port.
Description
Check the box to enable such profile.
Type a name for such profile.
Protocol - Use the drop-down menu to choose a proper
protocol for the WAN interface.
Source IP Address – Specify an IP address or a range of IP
addresses as the source IPs for WAN interface.
Any – Any IP can be treated as the source IP.
Single – Type one IP address.
Range – Type the start and end IP addresses on
101
