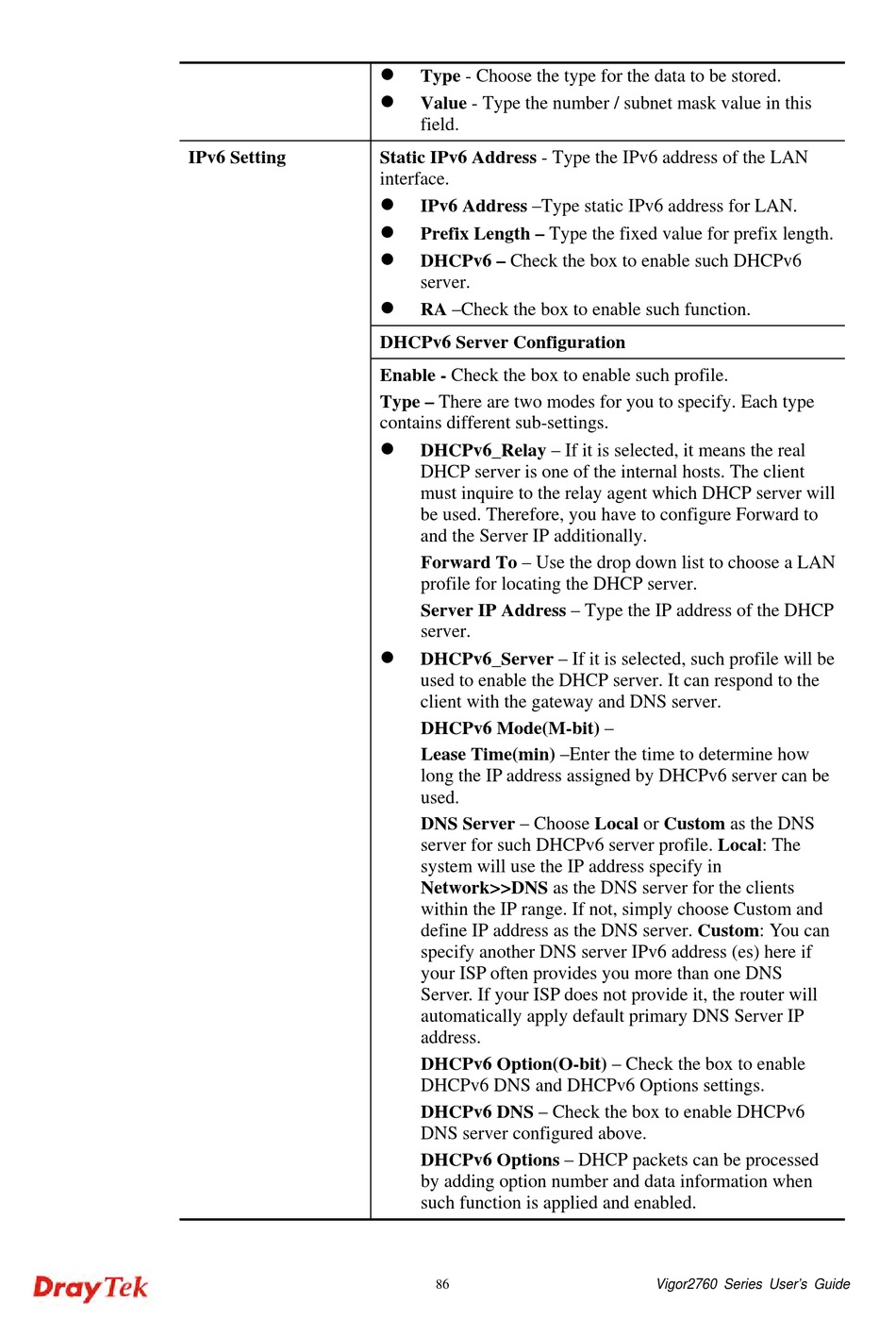

Draytek Vigor2760 User Manual page 96

IPv6 Setting

Type - Choose the type for the data to be stored.

Value - Type the number / subnet mask value in this
field.
Static IPv6 Address - Type the IPv6 address of the LAN
interface.

IPv6 Address –Type static IPv6 address for LAN.

Prefix Length – Type the fixed value for prefix length.

DHCPv6 – Check the box to enable such DHCPv6
server.

RA –Check the box to enable such function.
DHCPv6 Server Configuration
Enable - Check the box to enable such profile.
Type – There are two modes for you to specify. Each type
contains different sub-settings.

DHCPv6_Relay – If it is selected, it means the real
DHCP server is one of the internal hosts. The client
must inquire to the relay agent which DHCP server will
be used. Therefore, you have to configure Forward to
and the Server IP additionally.
Forward To – Use the drop down list to choose a LAN
profile for locating the DHCP server.
Server IP Address – Type the IP address of the DHCP
server.

DHCPv6_Server – If it is selected, such profile will be
used to enable the DHCP server. It can respond to the
client with the gateway and DNS server.
DHCPv6 Mode(M-bit) –
Lease Time(min) –Enter the time to determine how
long the IP address assigned by DHCPv6 server can be
used.
DNS Server – Choose Local or Custom as the DNS
server for such DHCPv6 server profile. Local: The
system will use the IP address specify in
Network>>DNS as the DNS server for the clients
within the IP range. If not, simply choose Custom and
define IP address as the DNS server. Custom: You can
specify another DNS server IPv6 address (es) here if
your ISP often provides you more than one DNS
Server. If your ISP does not provide it, the router will
automatically apply default primary DNS Server IP
address.
DHCPv6 Option(O-bit) – Check the box to enable
DHCPv6 DNS and DHCPv6 Options settings.
DHCPv6 DNS – Check the box to enable DHCPv6
DNS server configured above.
DHCPv6 Options – DHCP packets can be processed
by adding option number and data information when
such function is applied and enabled.
86
Vigor2760 Series User's Guide
