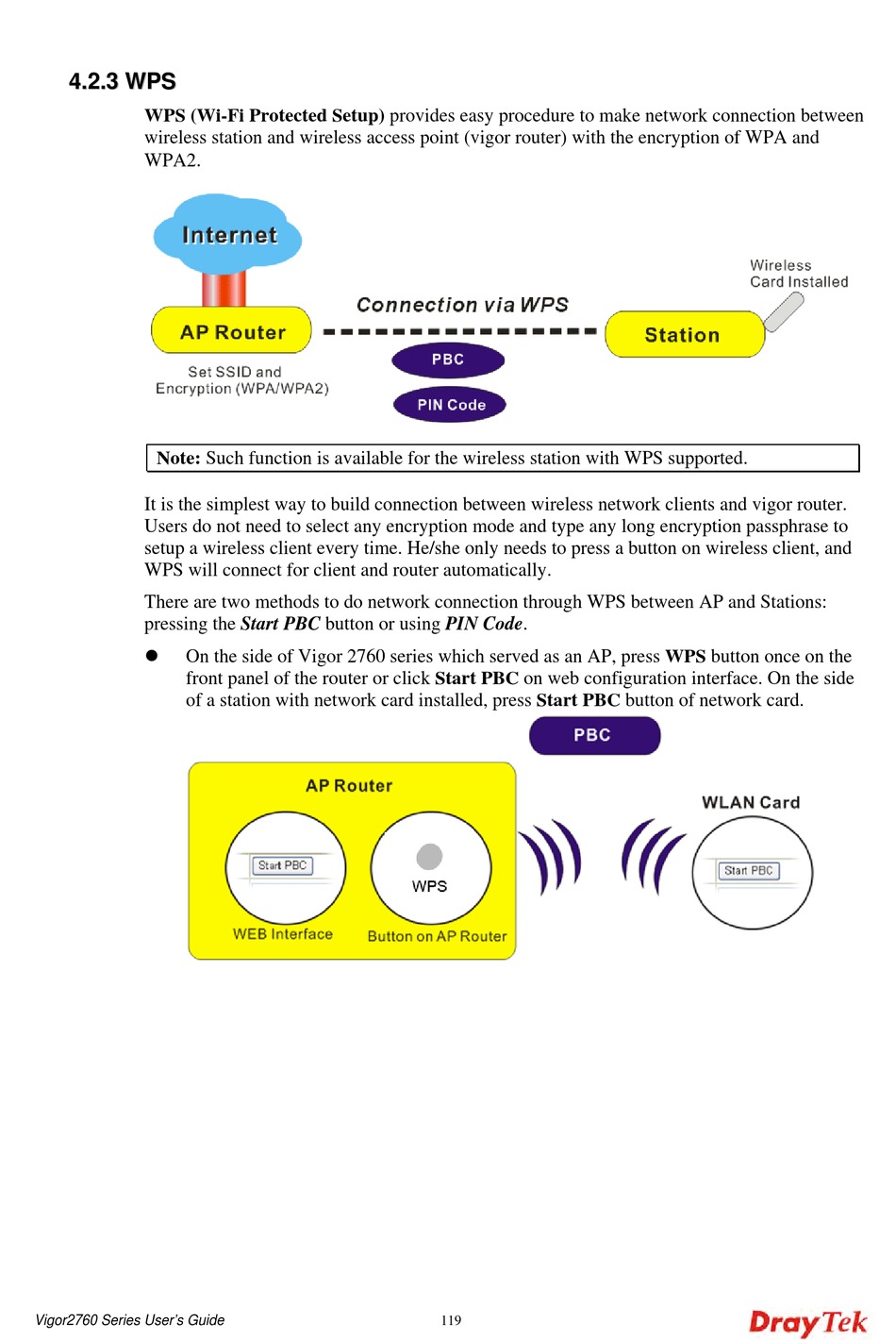

4 . 2 . 3 W P S
4 . 2 . 3 W P S
WPS (Wi-Fi Protected Setup) provides easy procedure to make network connection between
wireless station and wireless access point (vigor router) with the encryption of WPA and
WPA2 .
Note: Such function is available for the wireless station with WPS supported.
It is the simplest way to build connection between wireless network clients and vigor router.
Users do not need to select any encryption mode and type any long encryption passphrase to
setup a wireless client every time. He/she only needs to press a button on wireless client, and
WPS will connect for client and router automatically.
There are two methods to do network connection through WPS between AP and Stations:
pressing the Start PBC button or using PIN Code.

On the side of Vigor 2760 series which served as an AP, press WPS button once on the
front panel of the router or click Start PBC on web configuration interface. On the side
of a station with network card installed, press Start PBC button of network card.
