Protocol Setting
IPv4 Setting and/or
IPv6 Settings

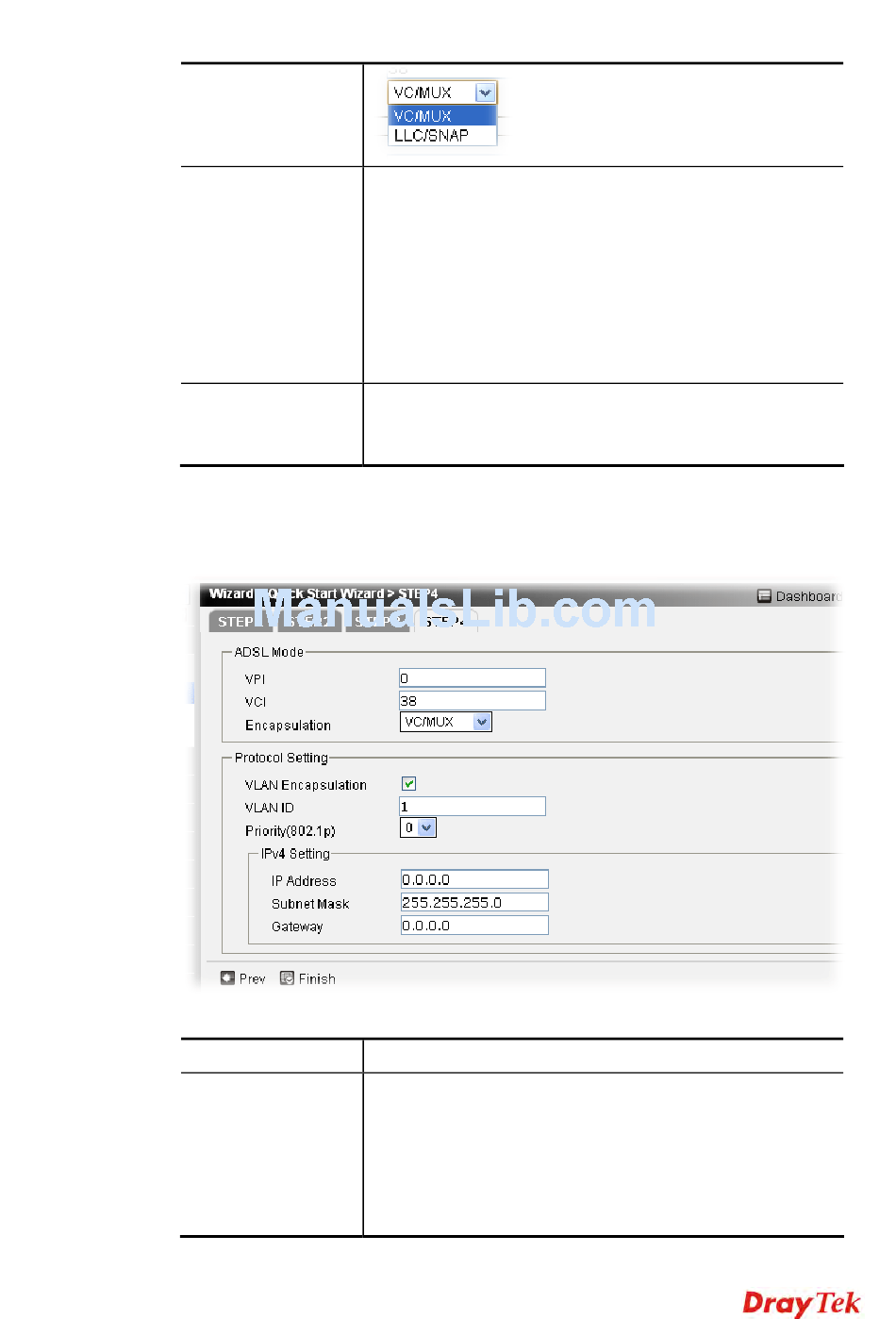

Static IP: if you click Static IP, you will get the following page. Please type in the IP
address information and type the values for ADSL settings (it can be ignored if VDSL
service is offered) originally provided by your ISP. Then click Finish to complete the
configuration.
Available parameters are listed as follows:
Item
ADSL Mode
Vigor2760 Series User's Guide
VLAN Encapsulation – It is used to enable the function of
VLAN with tag. The router will add specific VLAN number
to all packets while sending them out. Please type the tag
value and specify the priority for the packets sending by the
router.
VLAN ID –Type the value as the VLAN ID number. The
range is form 1 to 4000.
Priority(802.1p) - Type the packet priority number for such
VLAN. The range is from 0 to 7.
Such field will appear according to IP version specified on
the page of STEP1.
Nothing needs to be configured here for such protocol.
Description
VPI- Stands for Virtual Path Identifier. It is an 8-bit
header inside each ATM cell that indicates where the cell
should be routed. The ATM, is a method of sending data in
small packets of fixed sizes. It is used for transferring data to
client computers.
VCI - Stands for Virtual Channel Identifier. It is a 16-bit
field inside ATM cell's header that indicates the cell's next
