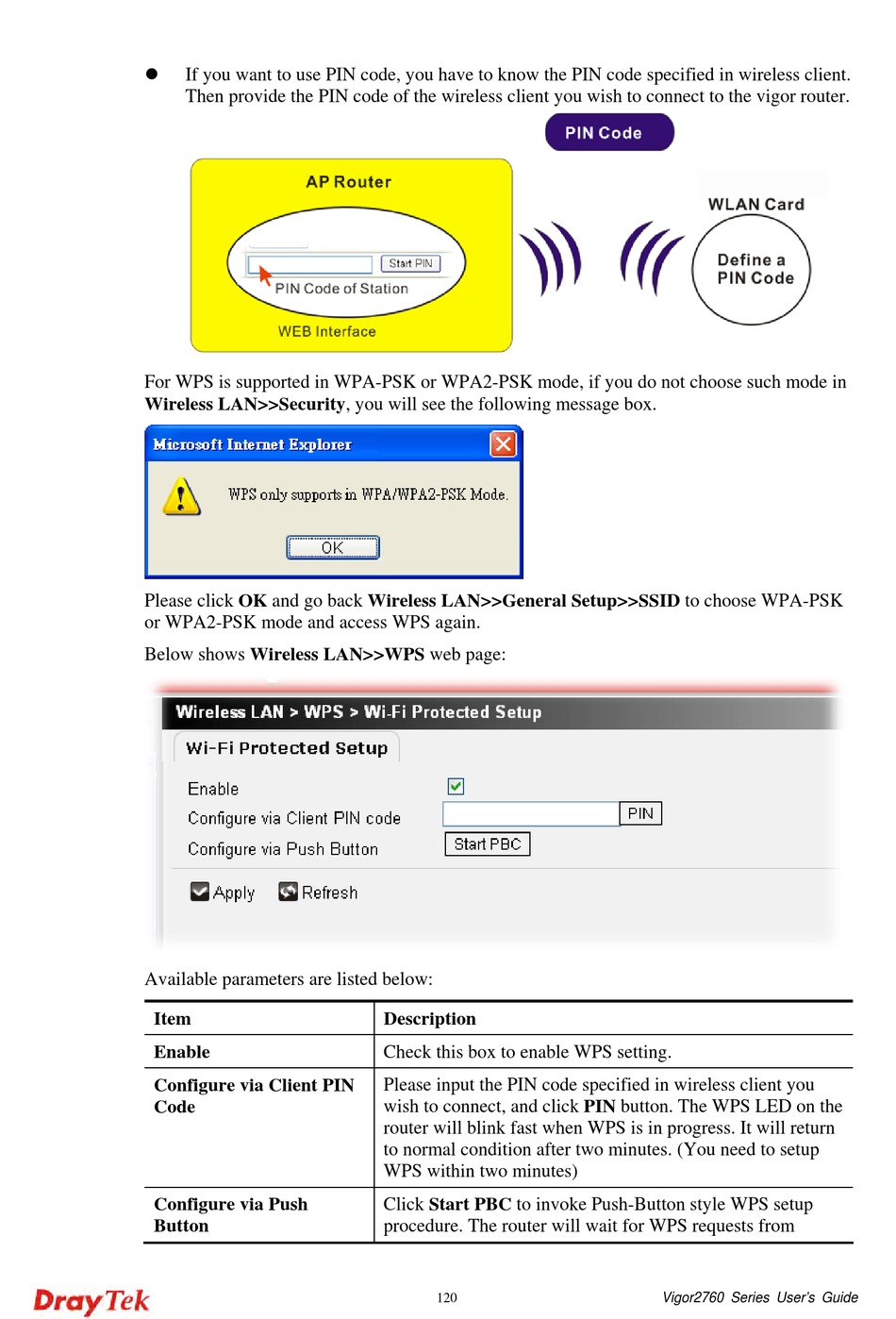

Draytek Vigor2760 User Manual page 130


If you want to use PIN code, you have to know the PIN code specified in wireless client.
Then provide the PIN code of the wireless client you wish to connect to the vigor router.
For WPS is supported in WPA-PSK or WPA2-PSK mode, if you do not choose such mode in
Wireless LAN>>Security, you will see the following message box.
Please click OK and go back Wireless LAN>>General Setup>>SSID to choose WPA-PSK
or WPA2-PSK mode and access WPS again.
Below shows Wireless LAN>>WPS web page:
Available parameters are listed below:
Item
Enable
Configure via Client PIN
Code
Configure via Push
Button
Description
Check this box to enable WPS setting.
Please input the PIN code specified in wireless client you
wish to connect, and click PIN button. The WPS LED on the
router will blink fast when WPS is in progress. It will return
to normal condition after two minutes. (You need to setup
WPS within two minutes)
Click Start PBC to invoke Push-Button style WPS setup
procedure. The router will wait for WPS requests from
