Configuring the Data Link Layer Protocol for E1, T1, and Serial Interfaces

Configure PPP as the Data Link Layer Protocol

The following steps explain the initial configuration of PPP as the Data Link

Layer protocol. It is assumed that you have configured the Physical Layer—

the E1, T1, or serial interface—and you have selected PPP as the Data Link

Layer protocol. As a result, the PPP Configuration window is displayed.

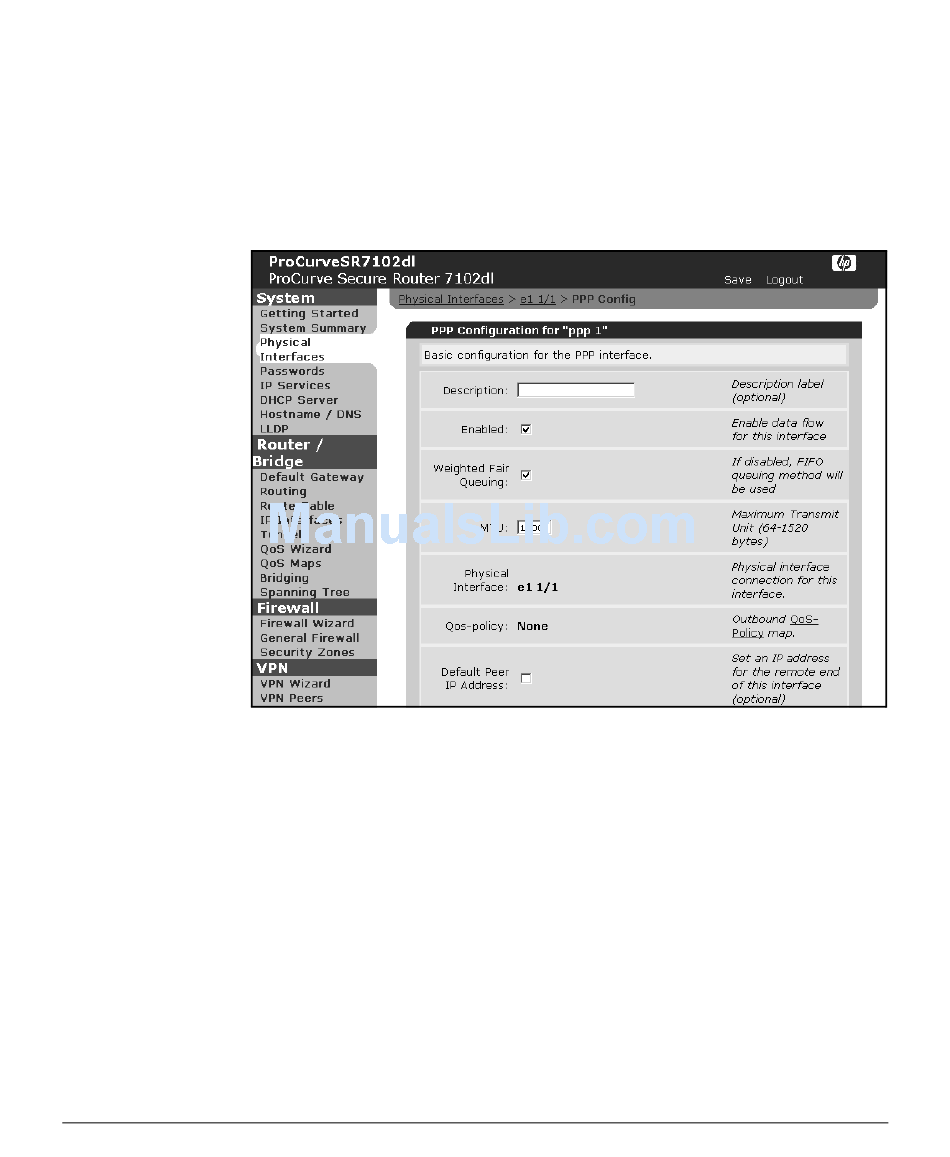

Figure 14-34. PPP Configuration Window

From the PPP Configuration window, enter a string of text up to 80

characters in the Description box if you want to record information about

the PPP interface. This description will be displayed in the running-config.

Select the Enabled box to activate the interface.

If you do not want the interface to use Weighted Fair Queuing (WFQ),

click the box to deselect it. For more information about WFQ, see

"Configuring WFQ" on page 14-45 in the Advanced Management and

Configuration Guide.

For most environments, you will accept the default MTU of 1500. If you

need to adjust the MTU, however, enter the new value in the MTU box.

Verify that the PPP interface is bound to the correct physical interface.
