IGMP Snooping Group Table

This allows the Switch's IGMP Snooping table to be viewed. IGMP Snooping allows the switch to read the Multicast Group IP
address and the corresponding MAC address from IGMP packets that pass through the Switch. You may specify a VLAN by
name to view.
To browse the IGMP Snooping table, open the Network Monitoring folder and the Status subdirectory. Click on the IGMP
Snooping Group Table link to see the following menu:
Specify the VLAN and click on the Find button. The following fields are displayed.
Parameter
Multicast Group
MAC Address
Port Map
Reports

IGMP Snooping Forwarding Table

This allows the switch's IGMP Snooping Forwarding table to be viewed. IGMP Snooping allows the switch to read the
Multicast Group IP address and the corresponding Source IP address from IGMP packets that pass through the Switch. You
may specify a VLAN by name to view.
To browse the IGMP Snooping Forwarding table, open the Network Monitoring folder and the Status subdirectory. Click on
the IGMP Snooping Forwarding Table link to see the following menu:
D-Link DES-3326S Layer 3 Switch

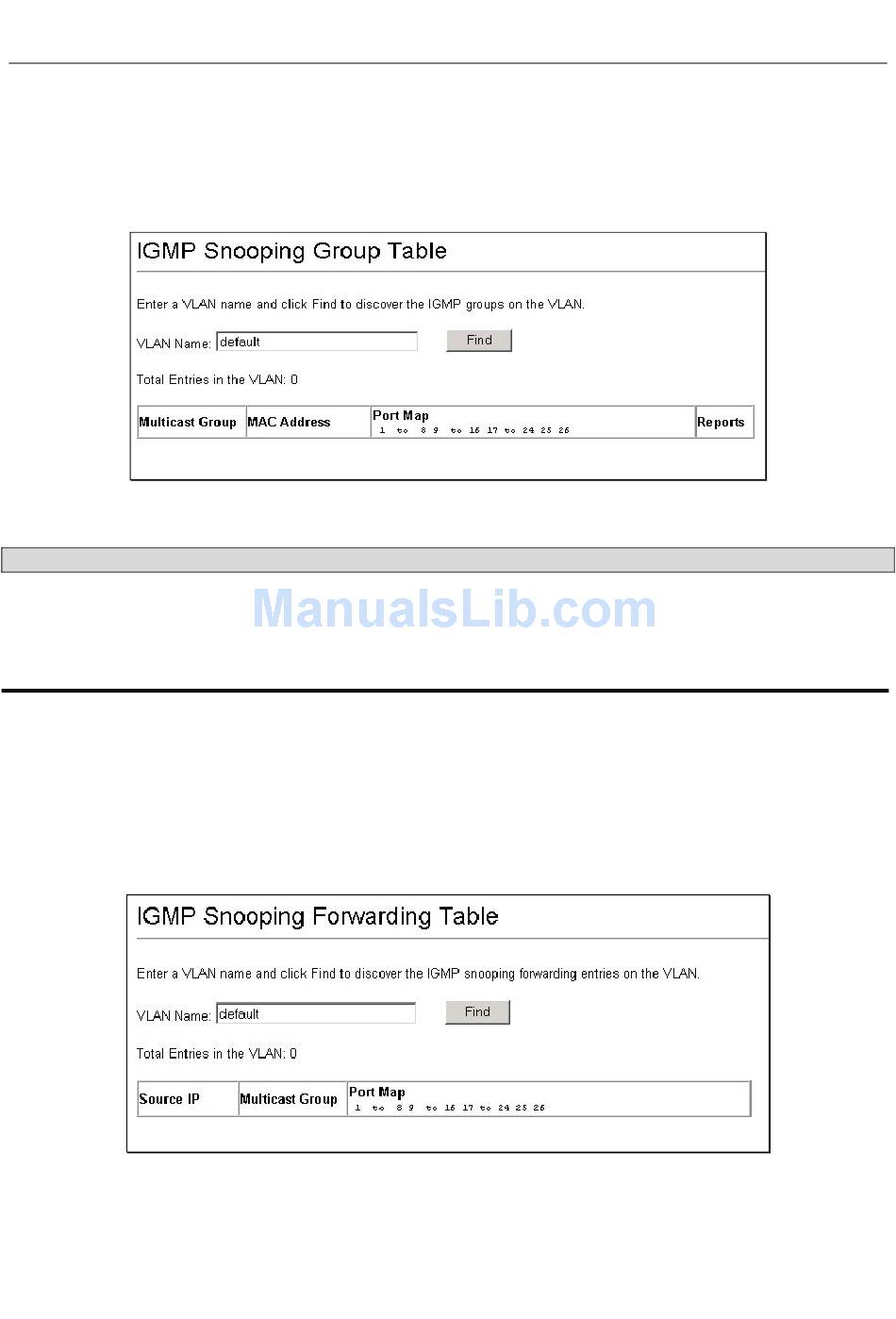

Figure 16- 17. IGMP Snooping Group Table
Description
The IP address of the multicast group.
The MAC address of the multicast group.
These are the ports where the IGMP packets were snooped are displayed,
The total number of reports received for this group.
Figure 16- 18. IGMP Forwarding Table
