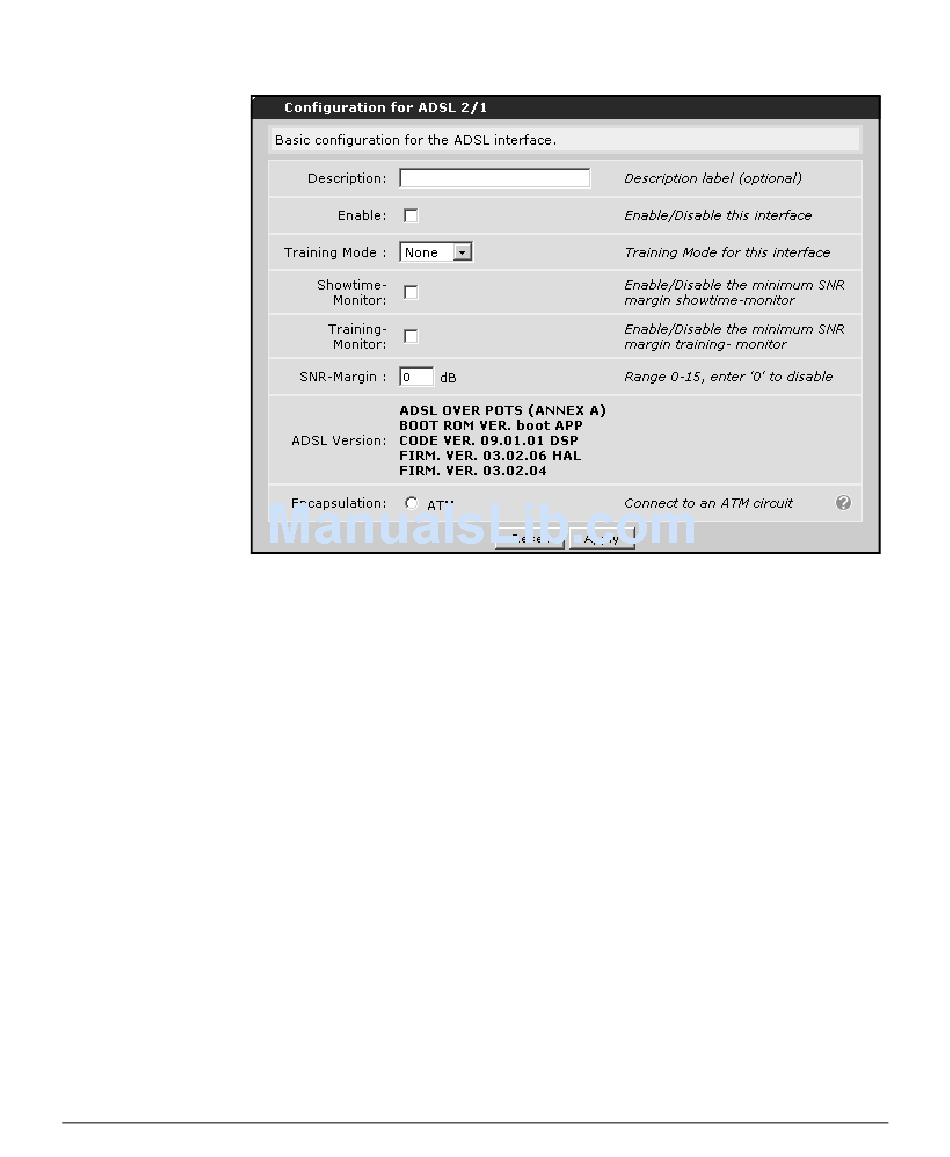

Figure 14-56. Configuration for ADSL Window
3. Enter a description for the interface if you want to document information
about the ADSL connection. The description is displayed when you view
the running-config file.
4. Click the Enable box to activate the ADSL interface.
5. Use the pull-down menu to select the Training Mode that your ADSL
service provider is using.
6. Select the Showtime-Monitor if you want to monitor the signal-to-noise
ratio (SNR)-margin after the physical connection has been established.
7. Select the Training-Monitor if you want to monitor the SNR-margin
during the training phase.
8. In the box provided for the SNR-Margin, enter the SNR margin in decibels.
9. The ADSL Version displays the type of ADSL module installed in the
router and information about the module's boot ROM and firmware.
10. Select ATM as the encapsulation.
11. Click Apply to save your changes to the startup-config. The Configuration
for "atm <interface>" window is displayed. (See Figure 14-57.)
