I Programming Scan Edges - Icom IC-7400 Instruction Manual

7
MEMORY OPERATION

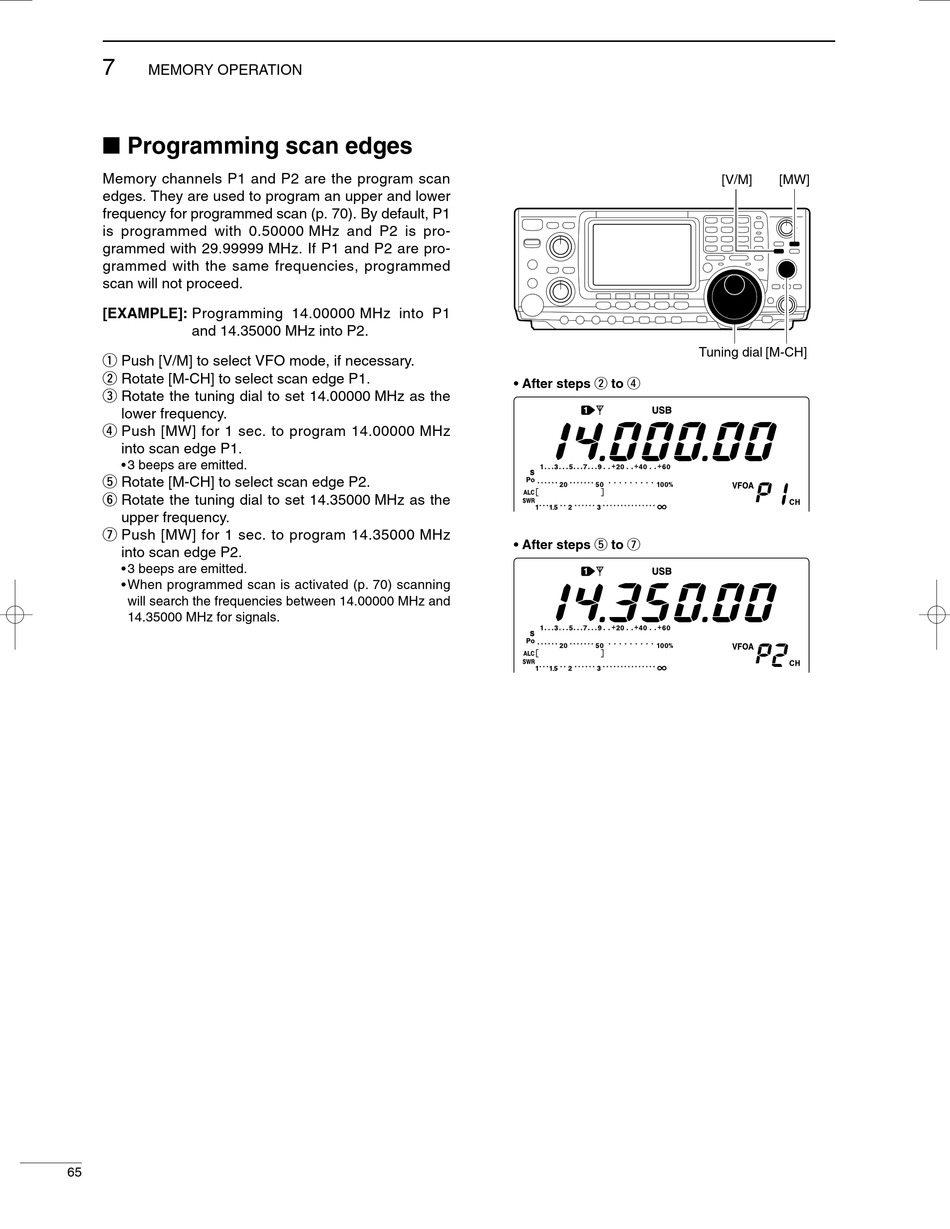

I Programming scan edges

Memory channels P1 and P2 are the program scan
edges. They are used to program an upper and lower
frequency for programmed scan (p. 70). By default, P1
is programmed with 0.50000 MHz and P2 is pro-
grammed with 29.99999 MHz. If P1 and P2 are pro-
grammed with the same frequencies, programmed
scan will not proceed.
[EXAMPLE]: Programming 14.00000 MHz into P1
and 14.35000 MHz into P2.
q Push [V/M] to select VFO mode, if necessary.
w Rotate [M-CH] to select scan edge P1.
e Rotate the tuning dial to set 14.00000 MHz as the
lower frequency.
r Push [MW] for 1 sec. to program 14.00000 MHz
into scan edge P1.
• 3 beeps are emitted.
t Rotate [M-CH] to select scan edge P2.
y Rotate the tuning dial to set 14.35000 MHz as the
upper frequency.
u Push [MW] for 1 sec. to program 14.35000 MHz
into scan edge P2.
• 3 beeps are emitted.
• When programmed scan is activated (p. 70) scanning
will search the frequencies between 14.00000 MHz and
14.35000 MHz for signals.
65
• After steps w to r
• After steps t to u
[V/M] [MW]
Tuning dial [M-CH]
