10
SCAN OPERATION

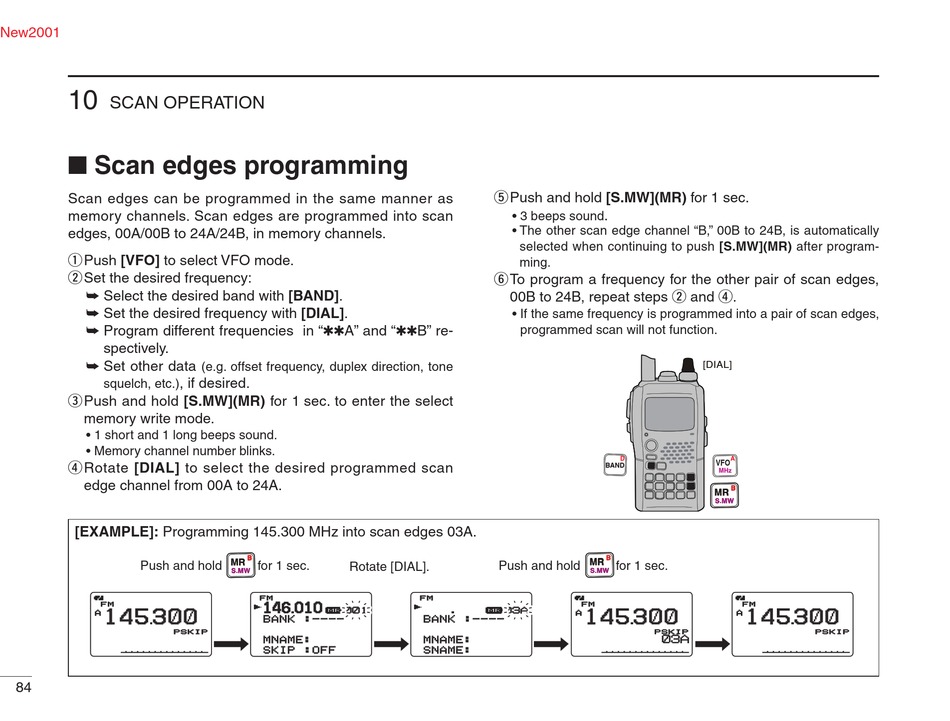

■ Scan edges programming

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 00A/00B to 24A/24B, in memory channels.
q Push [VFO] to select VFO mode.
w Set the desired frequency:
➥ Select the desired band with [BAND].
➥ Set the desired frequency with [DIAL].
➥ Program different frequencies in "✱✱A" and "✱✱B" re-
spectively.
➥ Set other data
, if desired.
squelch, etc.)
e Push and hold [S.MW](MR) for 1 sec. to enter the select
memory write mode.
• 1 short and 1 long beeps sound.
• Memory channel number blinks.
r Rotate [DIAL] to select the desired programmed scan
edge channel from 00A to 24A.
[EXAMPLE]: Programming 145.300 MHz into scan edges 03A.
Push and hold
FM FM
145 300 14 300
A A
PSKIP PSKI
84
(e.g. offset frequency, duplex direction, tone
B
MR
for 1 sec.
Rotate [DIAL].
S.MW
FM FM
146 010 14 010
r
µ 001 001
BANK BANK :---- :----
MNAME: MNAME:
SKIP SKIP :OFF :OFF
t Push and hold [S.MW](MR) for 1 sec.
• 3 beeps sound
• The other scan edge channel "B," 00B to 24B, is automatically
selected when continuing to push [S.MW](MR) after program-
ming.
y To program a frequency for the other pair of scan edges,
00B to 24B, repeat steps w and r.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
MR
Push and hold
S.MW
FM FM
FM FM
r
µ 03A 03A 145 300 14
A
BANK BANK :---- :----
MNAME: MNAME:
SNAME: SNAME:
.
[DIAL]
D A
VFO
BAND
MHz
B
MR
S.MW
B
for 1 sec.
FM FM
300 145 300 14
A
PSKI PSKIP
03A 03A
300
PSKIP PSKI
