7
SCAN OPERATION

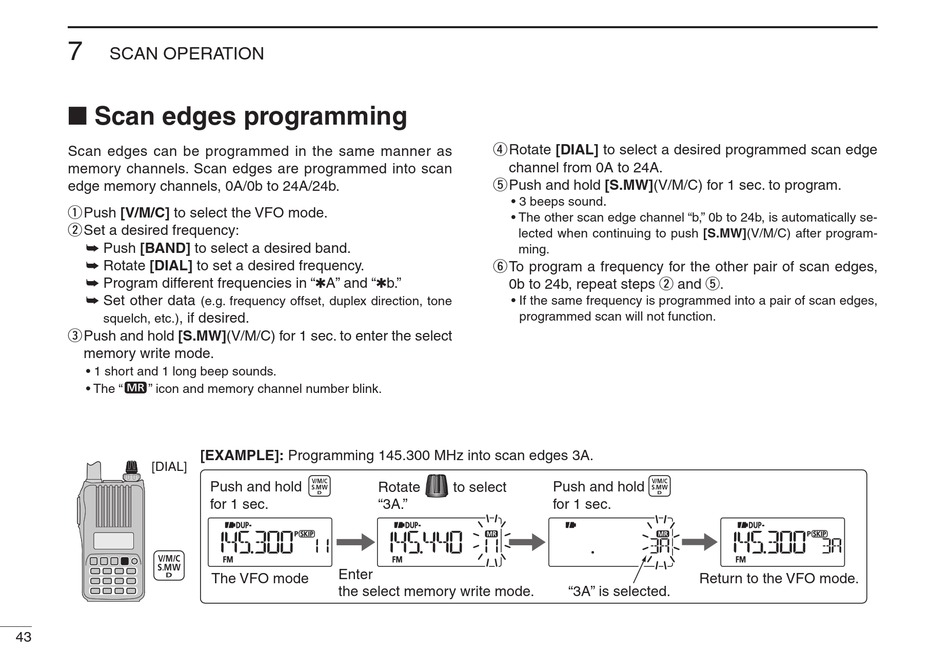

■ Scan edges programming

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edge memory channels, 0A/0b to 24A/24b.
q Push [V/M/C] to select the VFO mode.
w Set a desired frequency:
➥ Push [BAND] to select a desired band.
➥ Rotate [DIAL] to set a desired frequency.
➥ Program different frequencies in "✱A" and "✱b."
➥ Set other data
, if desired.
squelch, etc.)
e Push and hold [S.MW](V/M/C) for 1 sec. to enter the select
memory write mode.
• 1 short and 1 long beep sounds.
• The " " icon and memory channel number blink.
[DIAL]
43
(e.g. frequency offset, duplex direction, tone
[EXAMPLE]: Programming 145.300 MHz into scan edges 3A.
Push and hold
Rotate
for 1 sec. "3A."
Enter
The VFO mode
the select memory write mode.
r Rotate [DIAL] to select a desired programmed scan edge
channel from 0A to 24A.
t Push and hold [S.MW](V/M/C) for 1 sec. to program.
.
• 3 beeps sound
• The other scan edge channel "b," 0b to 24b, is automatically se-
lected when continuing to push [S.MW](V/M/C) after program-
ming.
y To program a frequency for the other pair of scan edges,
0b to 24b, repeat steps w and t.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
Push and hold
to select
for 1 sec.
"3A" is selected.
Return to the VFO mode.
