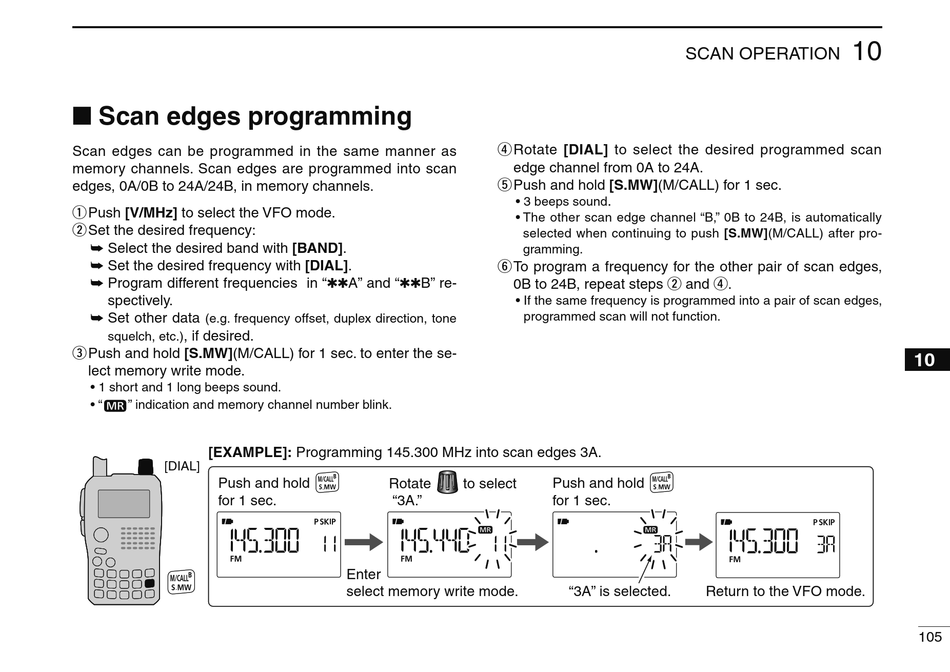

Scan edges programming

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 0A/0B to 24A/24B, in memory channels.
q Push [V/MHz] to select the VFO mode.
w Set the desired frequency:
Select the desired band with [BAND].
Set the desired frequency with [DIAL].
Program different frequencies in "
spectively.
Set other data
(e.g. frequency offset, duplex direction, tone
, if desired.
squelch, etc.)
e Push and hold [S.MW](M/CALL) for 1 sec. to enter the se-
lect memory write mode.
• 1 short and 1 long beeps sound.
• " " indication and memory channel number blink.
[EXAMPLE]: Programming 145.300 MHz into scan edges 3A.
[DIAL]
Push and hold
for 1 sec.
r Rotate [DIAL] to select the desired programmed scan
edge channel from 0A to 24A.
t Push and hold [S.MW](M/CALL) for 1 sec.
• 3 beeps sound
• The other scan edge channel "B," 0B to 24B, is automatically
selected when continuing to push [S.MW](M/CALL) after pro-
gramming.
y To program a frequency for the other pair of scan edges,
0B to 24B, repeat steps w and r.
A" and " B" re-
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
Rotate to select
"3A."
Enter
select memory write mode.
SCAN OPERATION
.
Push and hold
for 1 sec.
"3A" is selected. Return to the VFO mode.
