Offset Frequency; Subaudible Tones - Icom IC-iV85 Instruction Manual

5

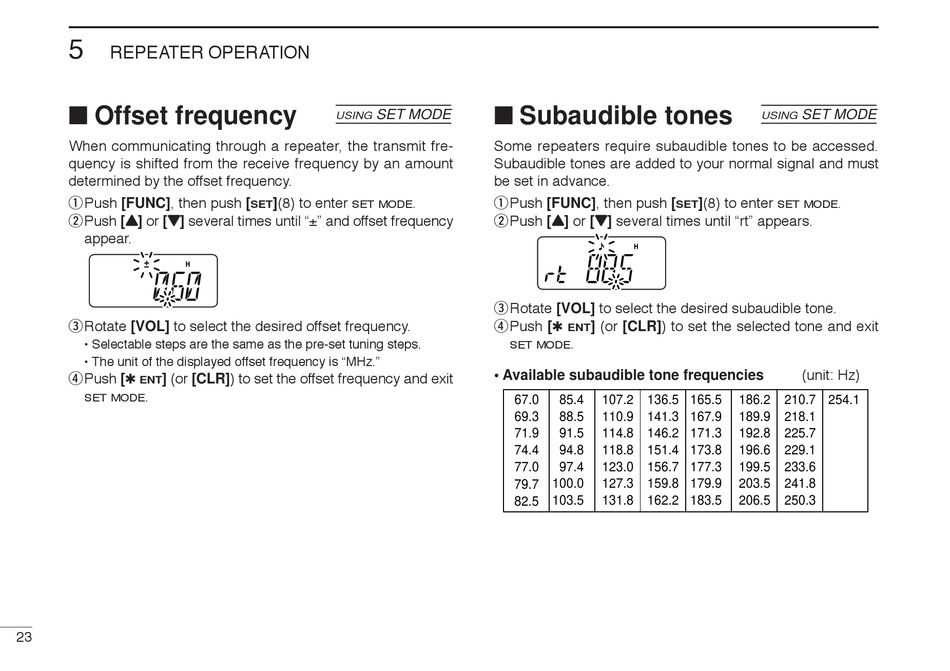

REPEATER OPERATION

■ Offset frequency

When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
q Push [FUNC], then push [
wPush [Y Y ] or [Z Z ] several times until "±" and offset frequency
appear.
eRotate [VOL] to select the desired offset frequency.
• Selectable steps are the same as the pre-set tuning steps.
• The unit of the displayed offset frequency is "MHz."
rPush [✱
] (or [CLR]) to set the offset frequency and exit
ENT
.
SET MODE
23
SET MODE
USING
](8) to enter .
SET MODE
SET

■ Subaudible tones

Some repeaters require subaudible tones to be accessed.
Subaudible tones are added to your normal signal and must
be set in advance.
qPush [FUNC], then push [
wPush [Y Y ] or [Z Z ] several times until "rt" appears.
e Rotate [VOL] to select the desired subaudible tone.
rPush [✱
] (or [CLR]) to set the selected tone and exit
ENT
.
SET MODE
• Available subaudible tone frequencies
67.0 85.4 107.2 136.5
69.3 88.5 110.9 141.3
71.9 91.5 114.8 146.2
74.4 94.8 118.8 151.4
77.0 97.4 123.0 156.7
100.0 127.3 159.8
79.7
103.5 131.8 162.2
82.5
SET MODE
USING
](8) to enter .
SET MODE
SET
(unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
