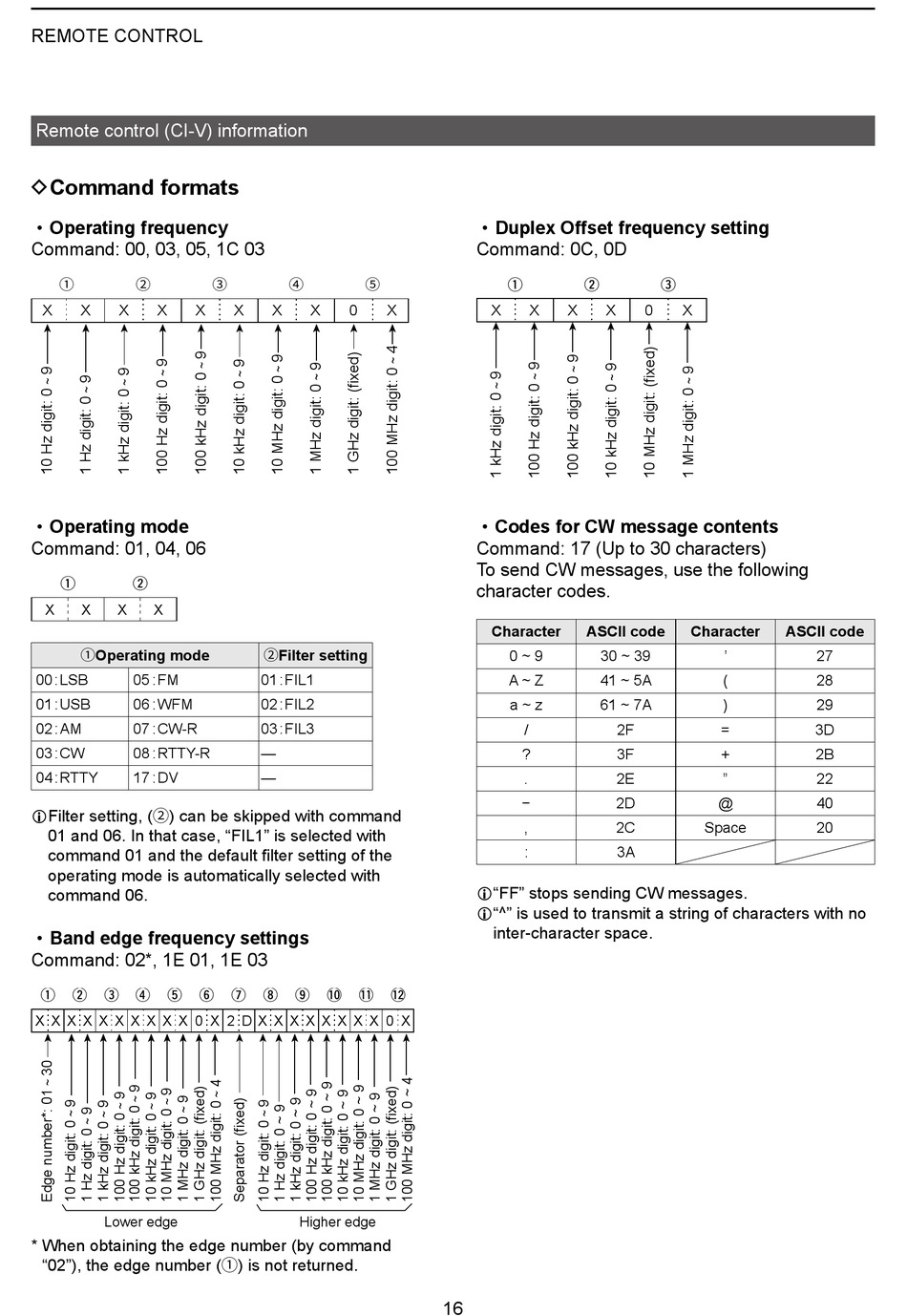

DCommand formats

• Operating frequency

Command: 00, 03, 05, 1C 03
1 2
X X X X X

• Operating mode

Command: 01, 04, 06
q w
X X X X
1Operating mode
00 :LSB 05 :FM
01 :USB 06 :WFM
02 :AM 07 :CW-R
03 :CW 08 :RTTY-R
04 :RTTY 17 :DV
LFilter setting, (2) can be skipped with command
01 and 06� In that case, "FIL1" is selected with
command 01 and the default filter setting of the
operating mode is automatically selected with
command 06�

• Band edge frequency settings

Command: 02*, 1E 01, 1E 03
q w e r t y
X X X X X X X X X X 0 X 2 D X X X X X X X X 0 X
Lower edge
* When obtaining the edge number (by command
"02"), the edge number (1) is not returned�
3 4 5
X X X 0
2Filter setting
01 :FIL1
02 :FIL2
03 :FIL3
—
—
u i o !0 !1
Higher edge

• Duplex Offset frequency setting

Command: 0C, 0D
q
X X
X

• Codes for CW message contents

Command: 17 (Up to 30 characters)
To send CW messages, use the following
character codes�
Character
0 ~ 9
A ~ Z
a ~ z
/
?
�
−
,
:
L"FF" stops sending CW messages�
L"^" is used to transmit a string of characters with no
inter-character space�
!2
16
w e
X X 0 X
ASCII code Character
30 ~ 39 '
41 ~ 5A (
61 ~ 7A )
2F =
3F +
2E "
2D @
2C Space
3A
ASCII code
27
28
29
3D
2B
22
40
20
